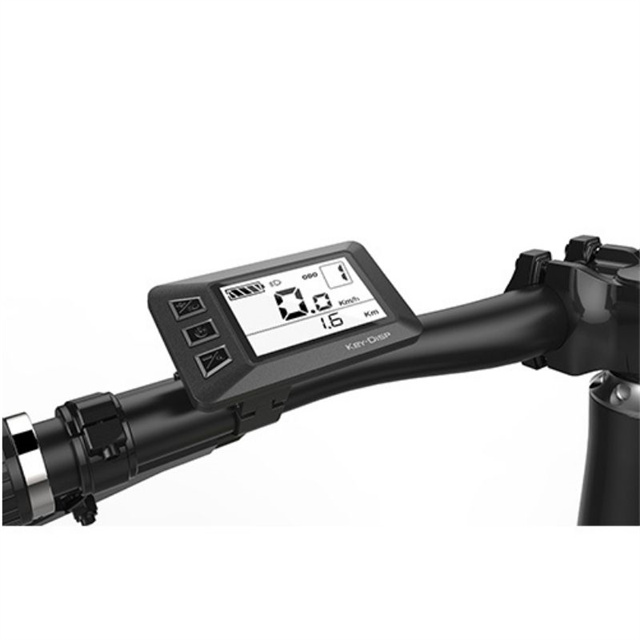

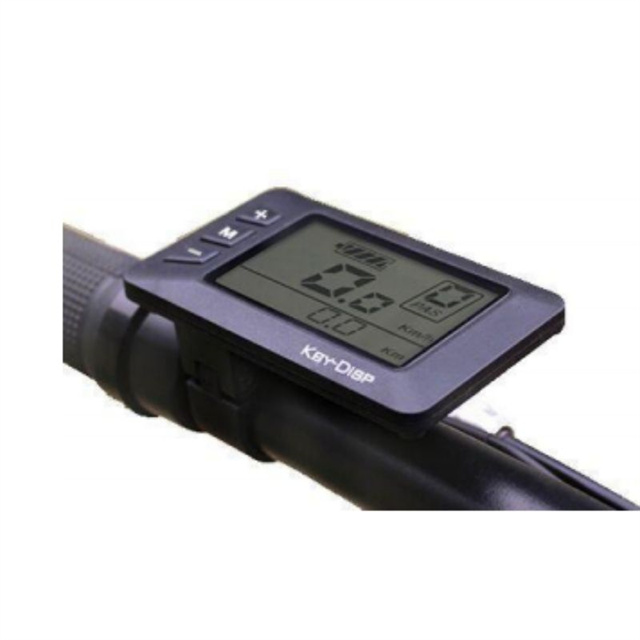

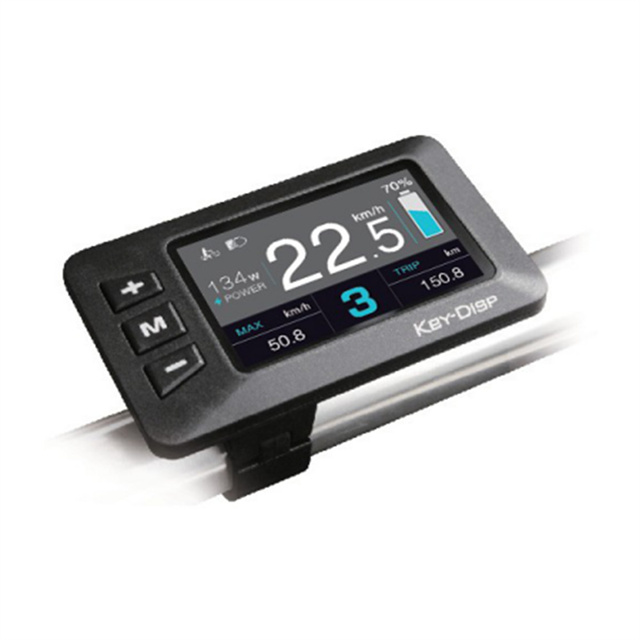

Elepedol 24V 36V 48V KD21C Segment Dot Matrix LCD Display for Electric Bike

As a part of the ebike, ebike LCD display plays an important role in the whole ebike system. If we say controller is the brain of the ebike, motor is the arm and leg of the ebike, then LCD display would combine the function of them. Especially, the LCD display is the important feature that highlights the benefits of integrated technology that characterizes the electric bike. Most people are only familiar with the ebike speedometer, but the LCD display keep eyes on the values of all the vital parameters that you need to be aware of while you are riding. It includes multiply functions, such as the speed, mileage, pedal assist, battery voltage, USB charging, real-time power output, automatic prompt function---Different failure codes are prompted to facilitate the inspection and maintenance of the vehicle. There is no doubt that the major advantage of LCD displays on e-bikes is they let riders monitor their performance and adjust according to the reflected data. Under this condition, riders can push themselves to the limits of their endurance. The LCD display doesn't make any sense unless the rider know the features it has and the vitality of the information it conveys. Elepedol LCD4 display comes with fashion design and small volume. In the meantime, it also carries the multiple functions. Therefore, users should be familiar with the various display features.
  • KD21C

  • Elepedol

  • 24V / 36V / 48 V

  • Displays

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Parameter


Model Elepedol KD21C high end segment screen ebike LCD display
Voltage (V)
24/ 36 / 48
Communication UART / CAN /485
Support modes  0-3 / 0-5 / 0-6 / 0-9
USB port  /
Handlebar size for holding (mm)  22.2  / 31.8
Weight  (g) 200
Connector type  5pin SM/ waterproof connector
Cable length

500mm including the connector

220mm for the switch length

Color
Black
Waterproof grade
IP 65
Certification  CE/ EN15194/RoHS


KD21C ebike LCD display 01

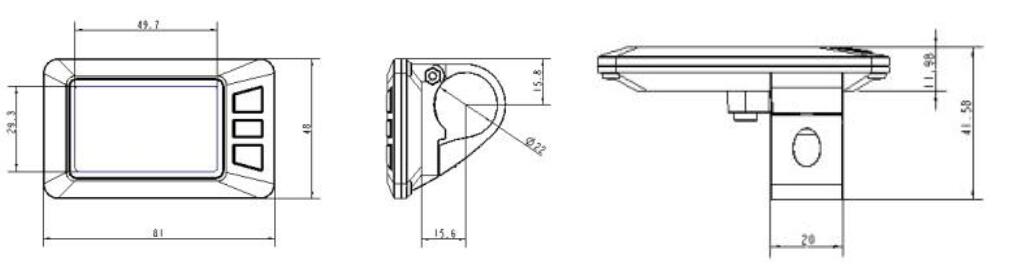

Drawing


drawing KD21C display

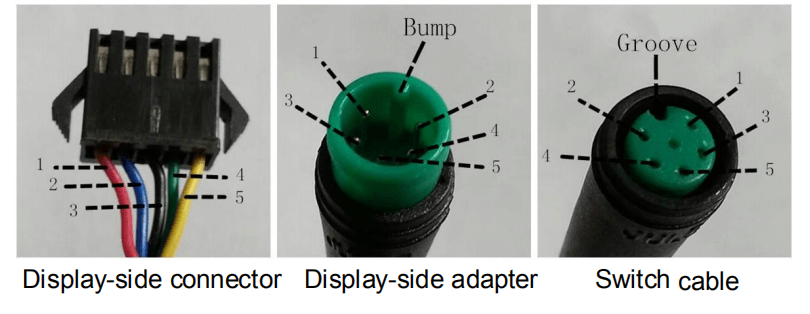

Wiring

ebike display wiring

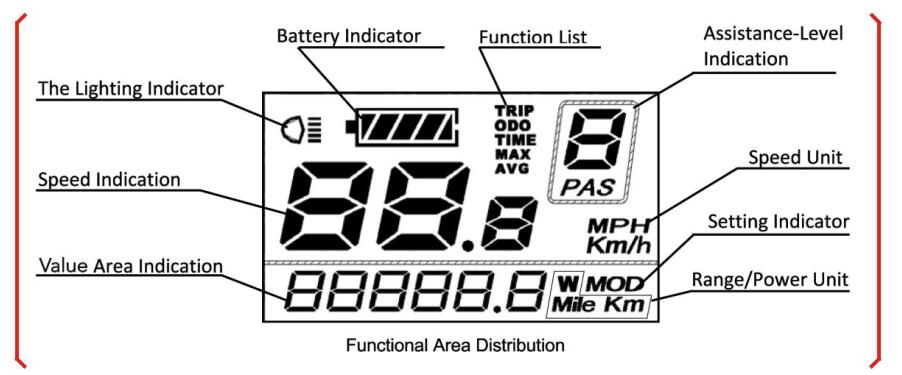

Functions summary and button definition:


functions of display


KD21C can provide a lot of functions to meet the users' demands. The indicating contents are as follows,
●Battery level indicator
●Motor output indication
●Assistance level indication
●Speed indication (incl. current speed, Max. speed and Avg. speed)
●Trip distance and total distance
●The push-assistance function
●Trip time
●The lighting On/Off
●Error code indication
●Various Parameters Settings (e.g. wheel diameter, speed limit,
battery level bar, assistance level, current limit, maximum speed,
password enable, etc.)
●Recover Default Settings



KD21C ebike LCD display 03

 Installation

The KD21C display should be mounted on the left handlebar of the
Ebike at a comfortable angle. Cut off the power supply before connecting
the display to the controller.







LED900S ebike display 003


Connector

We support 2 options for you. One is normal connector, another is waterproof connector. Both of them come with 5 pin signal.
