Elepedol 24V 36V 48V LED 900s Ebike Display

As a part of the ebike, ebike LED/ LCD display plays an important role in the whole ebike system. If we say controller is the brain of the ebike, motor is the arm and leg of the ebike, then LED/ LCD display would combine the function of them. Especially, the LCD display is the important feature that highlights the benefits of integrated technology that characterizes the electric bike. Most people are only familiar with the ebike speedometer, but the LCD display keep eyes on the values of all the vital parameters that you need to be aware of while you are riding. It includes multiply functions, such as the speed, mileage, pedal assist, battery voltage, USB charging, real-time power output, automatic prompt function---Different failure codes are prompted to facilitate the inspection and maintenance of the vehicle. There is no doubt that the major advantage of LCD displays on e-bikes is they let riders monitor their performance and adjust according to the reflected data. Under this condition, riders can push themselves to the limits of their endurance. The LED/LCD display doesn’t make any sense unless the rider know the features it has and the vitality of the information it conveys. Therefore, users should be familiar with the various display features.

  • LED900S

  • Elepedol

  • 24V / 36V / 48 V

  • Displays

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Parameter


Model Elepedol LED900S display
Voltage (V)
 24/ 36 / 48
Communication UART
Support modes  0-5
USB port  /
Handlebar size for holding (mm)  22.2
Weight  (g) 100
Connector type  5pin SM/ waterproof connector
Cable length

1800mm including the SM connector

230mm including the Julet waterproof connector
Color
 Black
Waterproof grade
 IP 65
Certification  CE/ EN15194

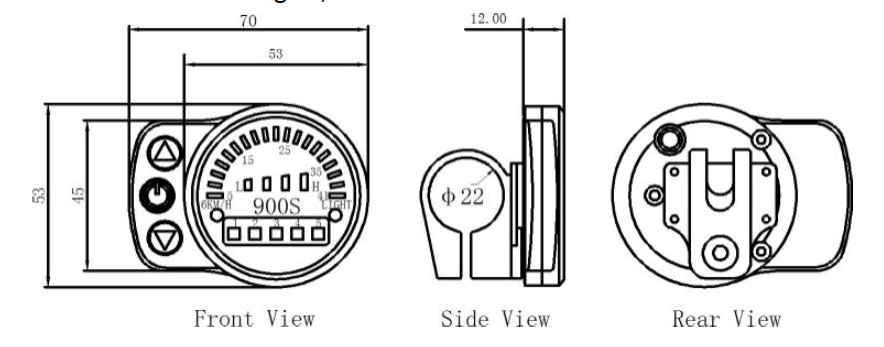

Drawing

LED900S-display



LED900S ebike display 002

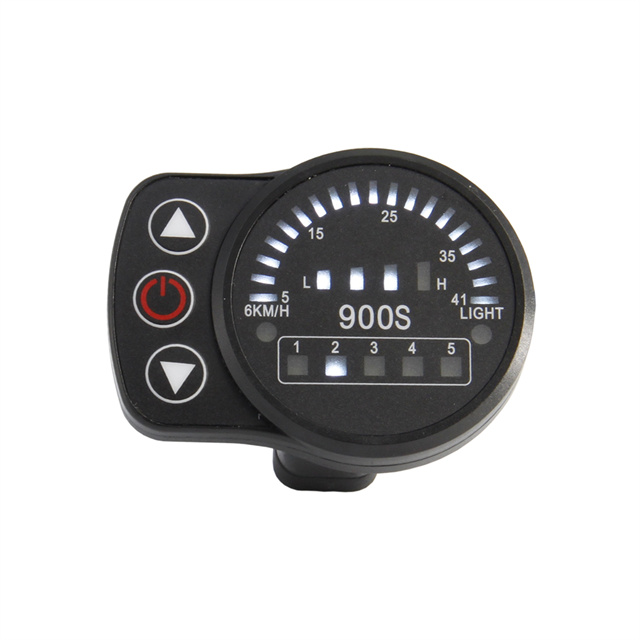

LED900S panel  front view

LED900S ebike display 004

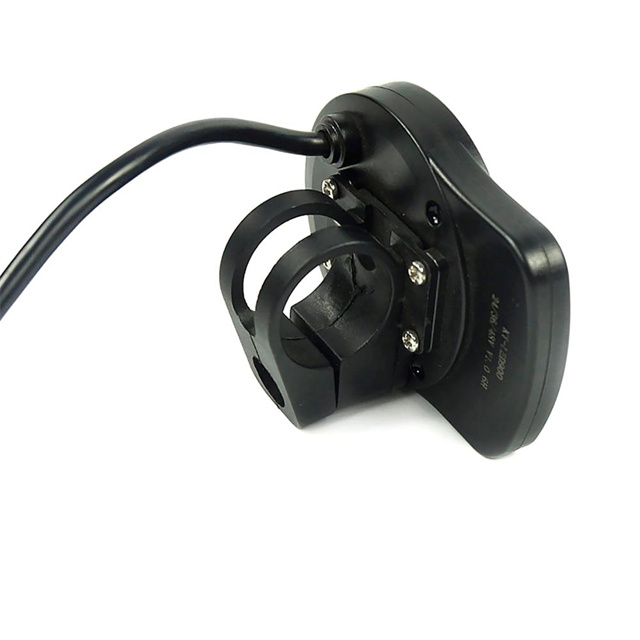

LED 900s panel side view

LED900S ebike display 003

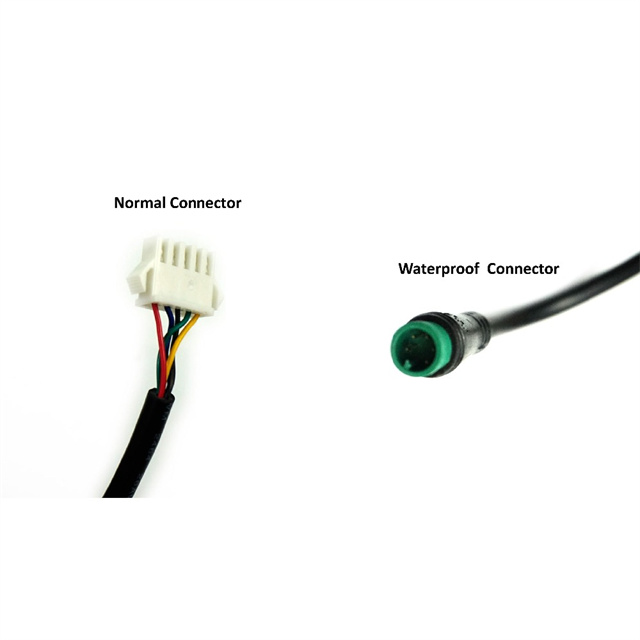

2 kinds of connector

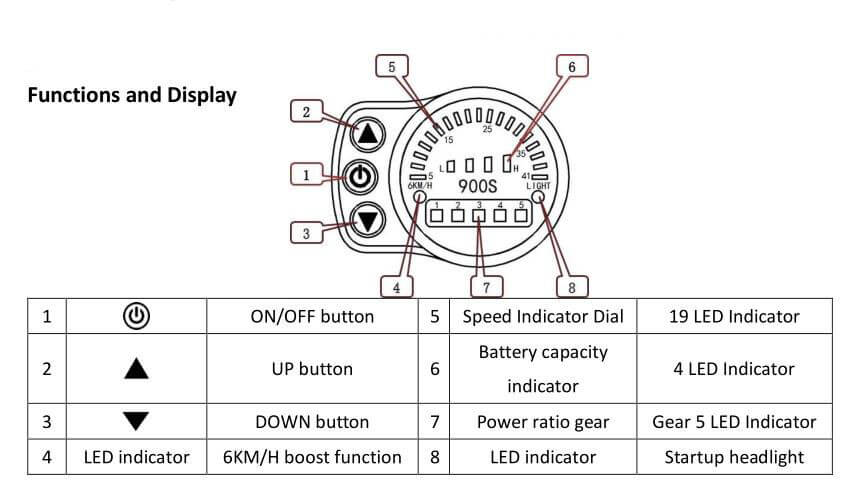

function


Features:

1. Power ON/OFF switch function, it will shutdown after standby for 5 minutes automatically;


2. Four-digit smart power display, which can truly reflect the battery power status and ensure the riding distance;


3. High, middle and low three levels imitating torque assist gear switching and gear indicator display, with gear memory function, it can automatically restore the gear state when it is turned on;


4. 15-digit LED strip speed indicator display;


5. With 6Km/h boost function, the boost indicator flashes when boosting, which can be used by riders when pushing the vehicle, and the vehicle is labor-saving and easy to implement;


6. Undervoltage indication function, when the battery is undervoltage, the undervoltage indicator flashes;


7. With the headlight switch control function, it can turn on and off the headlights. When the headlights are turned on, the headlight indicator lights are on;


8. It adopts five-wire digital communication method and has the function of multi-function parameter self-setting. Users can set and adjust the settings such as motor parameters, speed measurement parameters, speed limit parameters, power parameters and other settings for different models;


9. The instrument comes with good interchangeability, different instruments can be directly interchanged and copy data parameters.


10. The power supply voltage is 24V, 36V, 48V. They can be automatically identified and compatible;


Attention:


  1. KT LED900S display can only be matched with KT controllers. They have same communication protocol.

  2. Please mark in your order if your compatible PAS is 12 magnets pedal assist sensor. Normally, the default setting is based on 8 magnets PAS.

  3. Compared with LED900 display, LED900s can show the real-time speed, but the speed can not more than 41km/h.

  4. The LED900S display is 24V/36V/48V compatible. When you choose the LED900s display with waterproof connector, you'd better to add the 1-5 bus cable, which is the bridge to connect the LED display and controller. Otherwise, you will need to customize a special controller with display functional cable there.

    (Usually, customers want to simplify the cables in the controller, so they will make the functional cables in the 1-5 bus cable, such as display function, ebrake function, throttle function, LED light function etc.)



Download:


LED900S ebike display Operation Manual :

https://drive.google.com/file/d/1Q5-JDFo9BD7ujUjf5caj8b0hGWZmjeDk/view?usp=sharing


How to copy the data from LCD to LED display:

https://drive.google.com/file/d/13OjECBfb9U8K7FK2t5mwkyXWFGDaI7PS/view?usp=sharing
