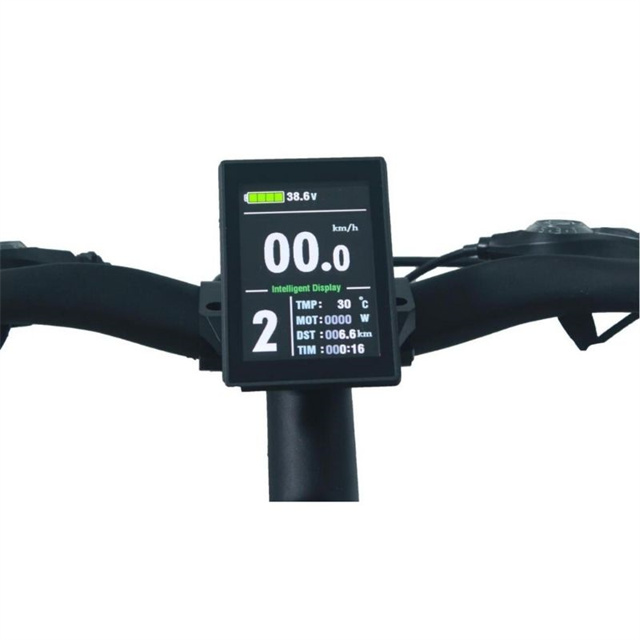

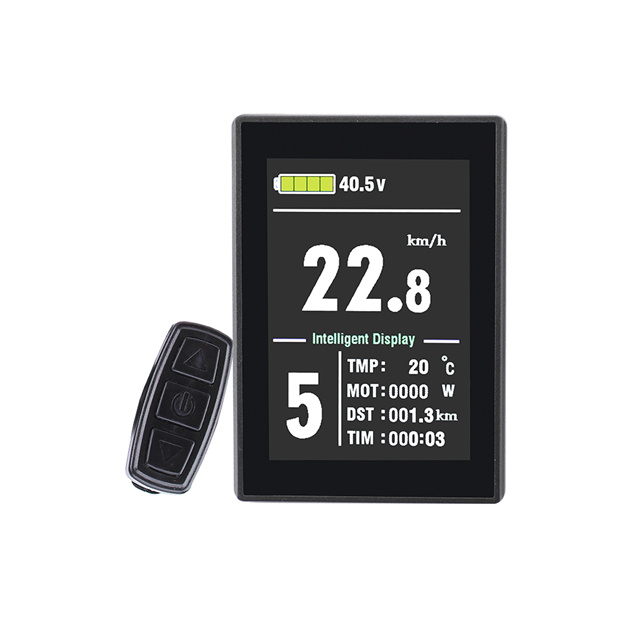

1. Data display function: It shows riding speed, single mileage and accumulated mileage, riding timing, assist gear, motor operating power and temperature, battery voltage and power status, brake status, and Ambient temperature and other cycling parameters.
2. Intelligent power function: it truly reflects the battery power status and records power consumption in real time to ensure the riding mileage;
3. Gear setting function: multi-gear switch and automatically save the power-assist gear, it can restore power-off gear state when turned on.
4. Parameter setting function: It comes with a number of user parameter setting functions, which can set and adjust the settings such as operating modes of motor parameters, speed measurement parameters, speed limit parameters, power parameters, power-assisted control parameters, controller minimum voltage and maximum current parameters for different models ；
5. Data viewing function: users can view and clear historical data of driving, view single or accumulated riding time, riding mileage, single riding maximum speed and average speed, etc.
6. Vehicle boost function: with 6Km/h boost function, the boost sign flashes when boosting, which can be used by cyclists when pushing the vehicle, and the vehicle pushing is labor-saving and easy;
7. Cruise and constant speed function: With the setting and display of the cruise function, it can automatically maintain the speed of the vehicle and make the vehicle drive at a fixed speed as the car.
8. Night driving function: with LCD backlight display and headlight switch control function, instrument backlight and LED lights can be turned on during night driving;
9. Password setting function: provide three-digit power-on password setting;

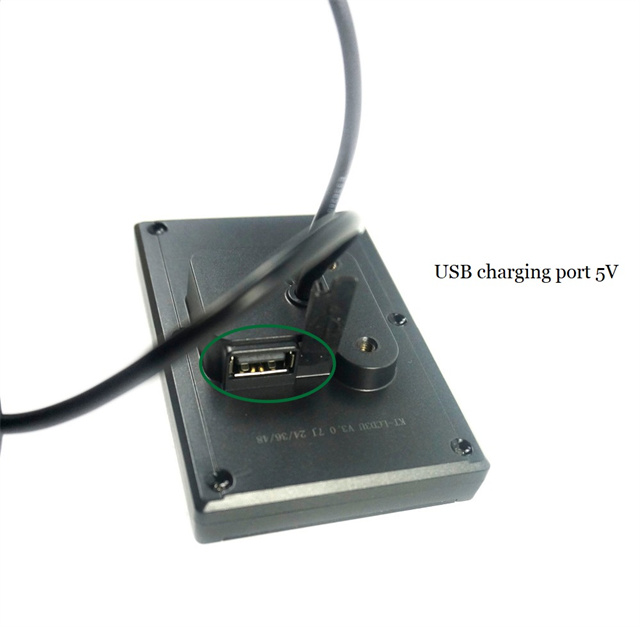

10. USB charging function: with USB charging interface, using high reliability and high stability power chip, output 5V, 1A charging voltage;
11. Automatic prompt function: Different failure codes are prompted to facilitate the inspection and maintenance of the vehicle, in view of the failure of the vehicle. With motor operating temperature display, realize over-temperature alarm and motor protection;

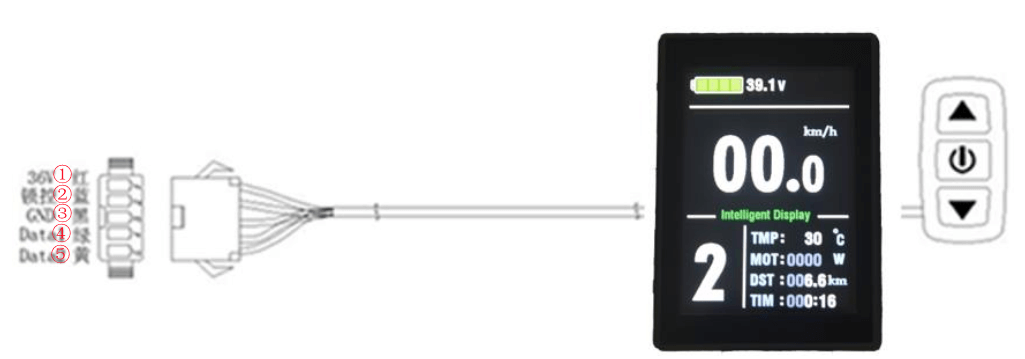

12. With five-wire digital communication method, it has good compatibility and interchangeability, and different meters can be interchanged directly and data parameters can be copied.

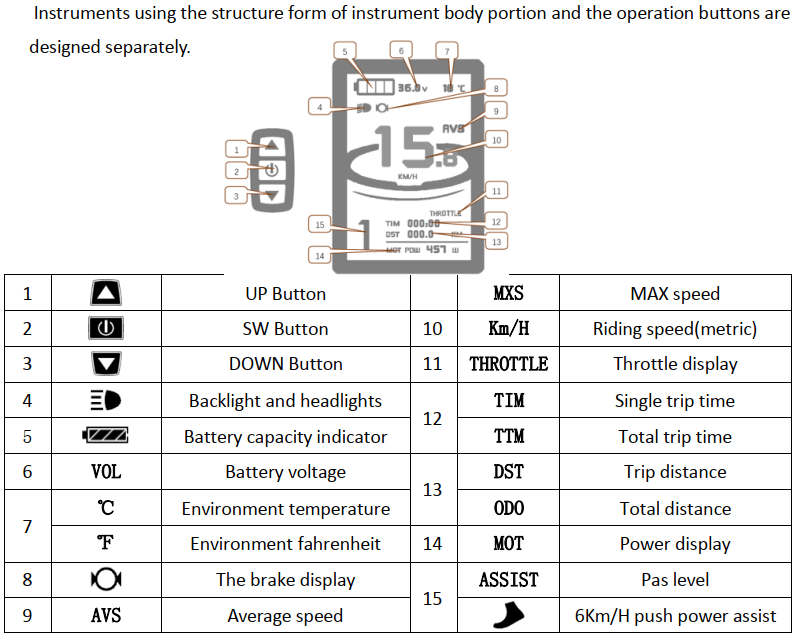

13. The main part of the instrument and the operation buttons adopt a split structure design, which makes the operation more reasonable and convenient;
14. Power supply voltage 24V, 36V, 48V. And, it can be identificated automatically and compatible.
Attention:
1. KT series display can only be matched with KT controllers. They have same communication protocol.
2. Please mark in your order if your compatible PAS is 12 magnets pedal assist sensor. Normally, the default setting is based on 8 magnets PAS.

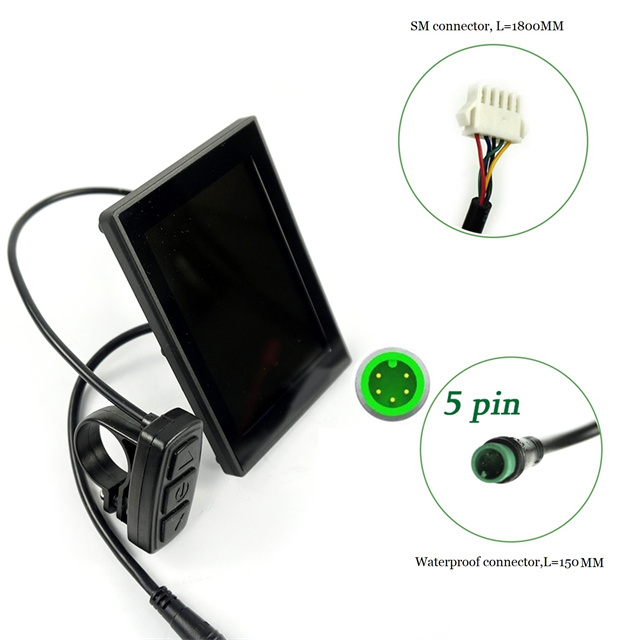

3. The LED/LCD display is 24V/36V/48V compatible. When you choose the display with waterproof connector, you'd better to add the 1-5 bus cable, which is the bridge to connect the LED/LCD display and controller. Otherwise, you will need to customize a special controller with display functional cable there.
(Usually, customers want to simplify the cables in the controller, so they will make the functional cables in the 1-5 bus cable, such as display function, ebrake function, throttle function, LED light function etc.)
Download:
LCD8S ebike display User Manual:
https://drive.google.com/file/d/1tAu6qjUK1n5wBFKzCKZXrFz4xT3vRWMi/view?usp=sharing
