| Product name | Elepedol BBTS1SD torque sensor |
| Input voltage (V) | 4.5-5.5 |
| Input power (W) | ＜0.3 |
| Torque output range (V) | 0.75-3.4 |
| Speed signal pulse (R) | 36 |
| Speed signal duty cycle (%) | 50 |
| Torque signal resolution (mV /N.m) | 35 |
| Torque measuring range (N.m) | 0.5-80 |
| Design standard （EN） | 14764 |
| Bowl specification | BS(C) 1.375*24 |
| Protect grade (EN60529) | IP66 |
| Working temperature (℃） | -20~85 |
| Storage temperature （℃） | -40~120 |
customized functional ebike controller with BBTS1SD torque sensor and matched crank and chain wheel

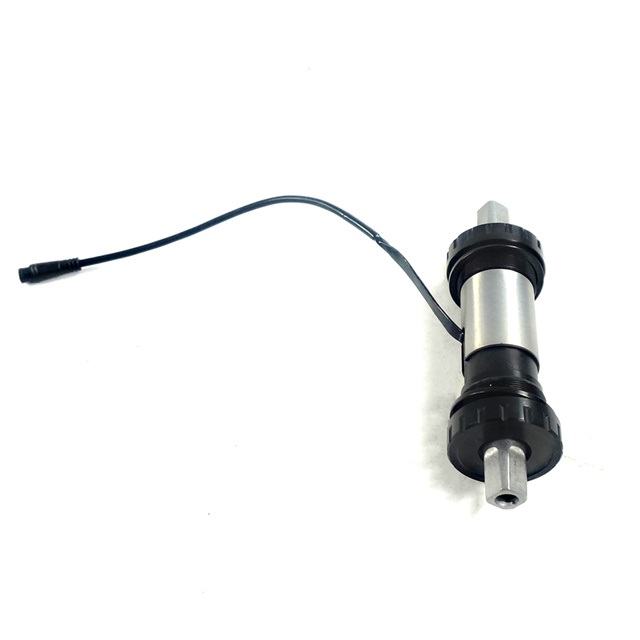

BBTS1SD torque sensor

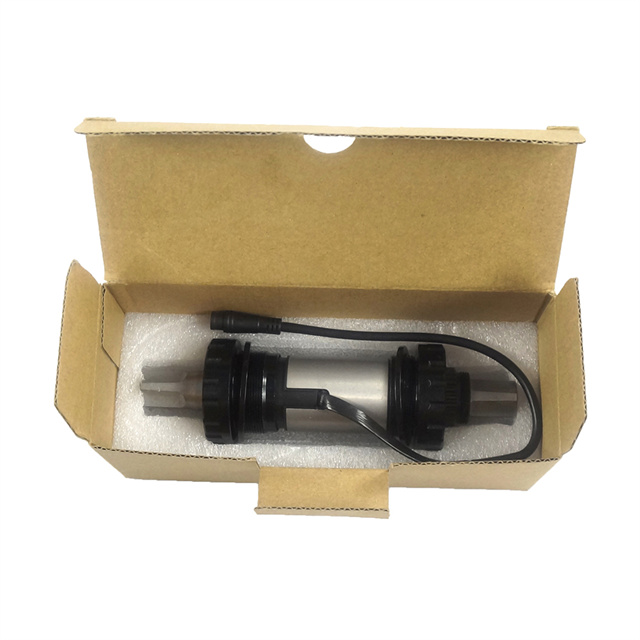

BBTS1SD is our latest development of electric bicycle power sensor, it contains torque signal and speed signal.
The characterstics of the sensor are as below：
a. High precision and good linearity；
b. Fast dynamic response；
c. Maintenance free and good interchangeabilty；
d. Small volume(can be fitted with the standard BB)；
e. Non-contact type, long service life, insensitive to bending moment and axial
force；
f. Low power consumption and good stability。
g. Assembly dimensions and input/output signals can be adjusted

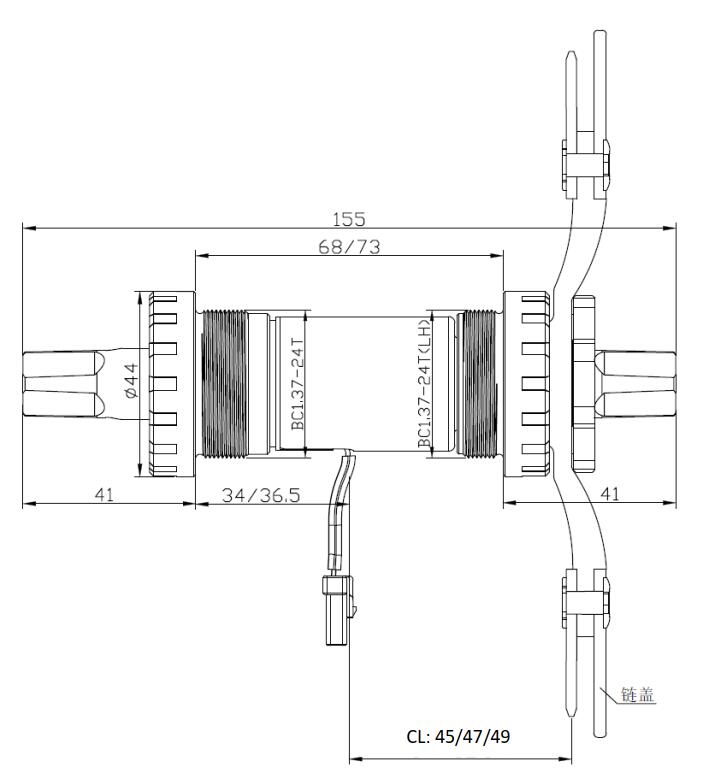

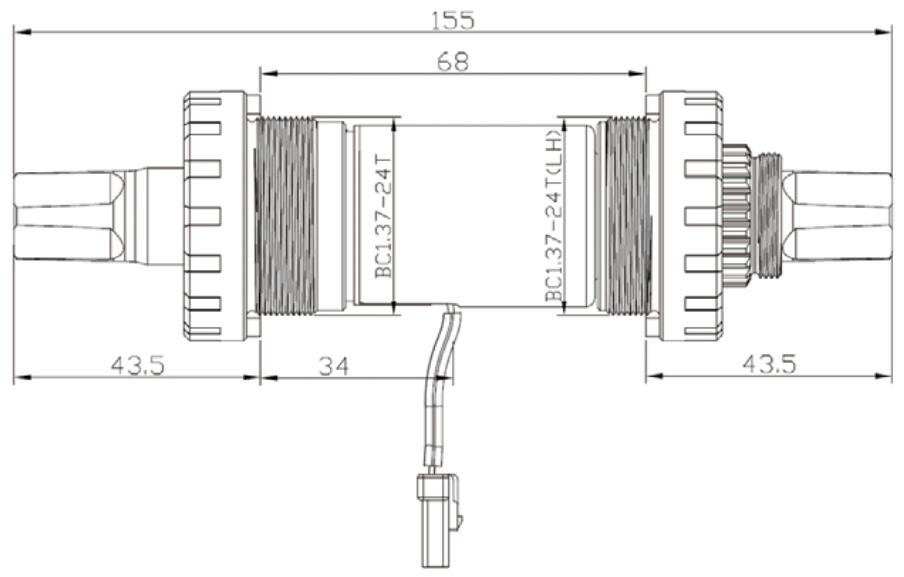

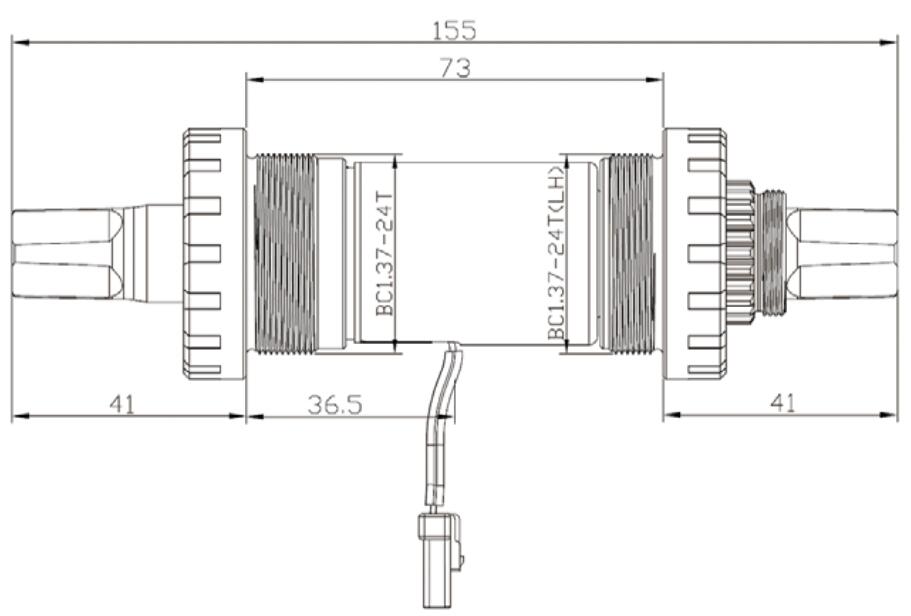

Mechanical Dimension (JIS standard-square shaft)

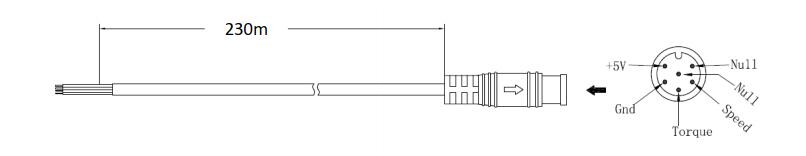

Wire definition (Julet waterproof connector)
CL Dimension
Instructions
Application range：
This torque and speed sensor is applied on the electric bicycle.
External working condition：
Excessive mechanical stress on the torque, for example, longitudinal force,load and vibration are over the limit, may lead to damage the sensor or output undesirable signal. And, external high-intensity magnetic field may affect the measurement result ,If any doubts ,please contact with Elepedol.
Notice:
1) Do not open the sensor housing under any circumstances
2) Before usage, pls check concerning max & min electrical and mechanical loads
3) Do not expose sensor into any electromagnetic field that beyond the electromagnetic compatibility requirement.

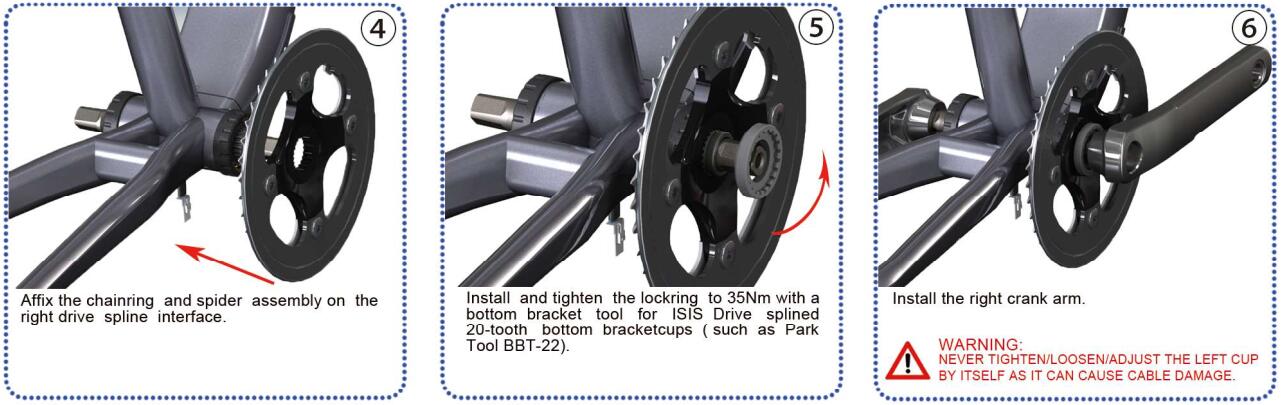

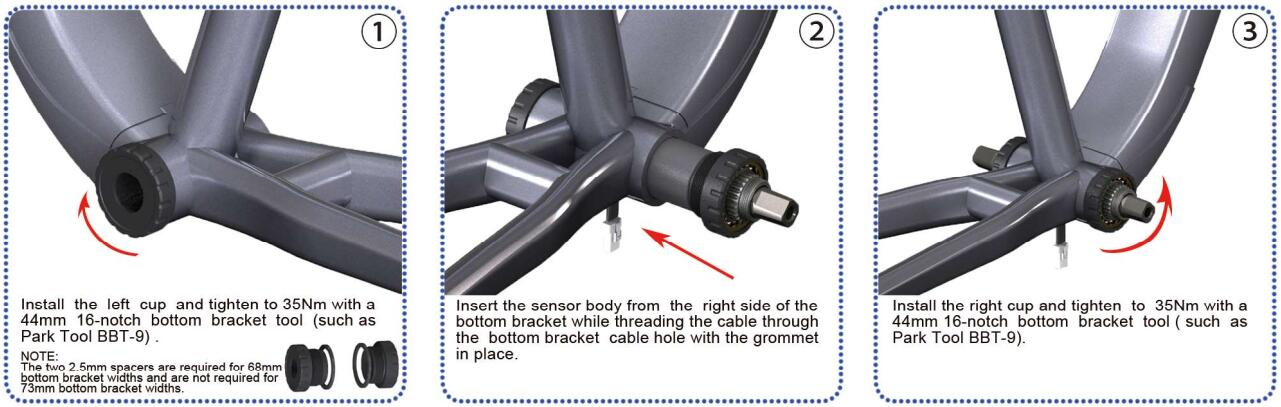

Torque sensor installation instructions

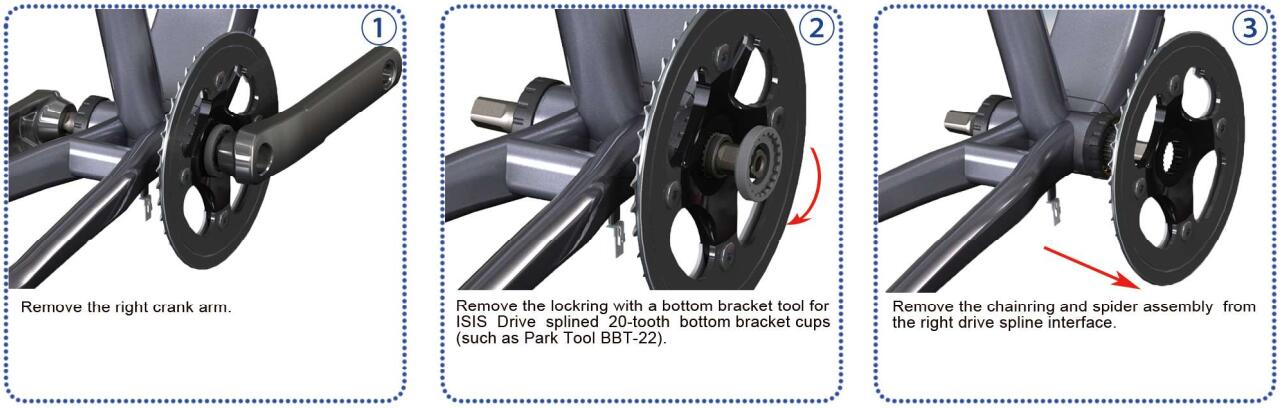

Torque sensor removal instructions
