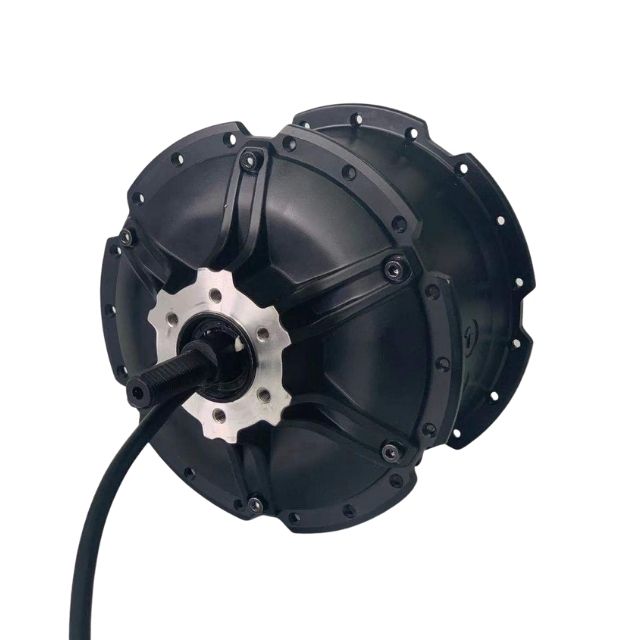

Elepedol SQ-09RX 500W 750W High Speed Fat Tire Geared Hub Motor

Elepedol SQ09RX rear wheel 250W 350W 500W 750W fat tire geared hub motor is specially used for snowbikes. It can be installed in the fat bikes with 175mm or 190mm drop out size. It comes with latest new design, very fashion. Max torque can reach to 78Nm, max speed can reach to 45km/h.

  • SQ09RX

  • ELEPEDOL

  • 8501310000

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

SPECIFICATION

Position Rear
Construction
 Gear
Rated Voltage (V) 36 / 48
Rated Power  (W) 250 /350/500/750
Weight (KG) 4.6
Reduction Ratio 1:5.3
Max Torque (N.m) 78
Wheel Szie 20''/22''/24''/26''/28''/700c
Spoke specification 36Hole      12g/13g
Rated speed (KM/H) 25-45
Magnet Poles (2P)  10
Operating temperature (℃） -20-45
Surface color  Black /Silver
Dropout (mm) 175/190
Drive and freewheel  6s-8s
Brake type V / Disc brake
Efficiency (％） ≥80
Cable position  Shaft center Left
Noise grade (db) ≤45
IP grade  54


DIMENSION

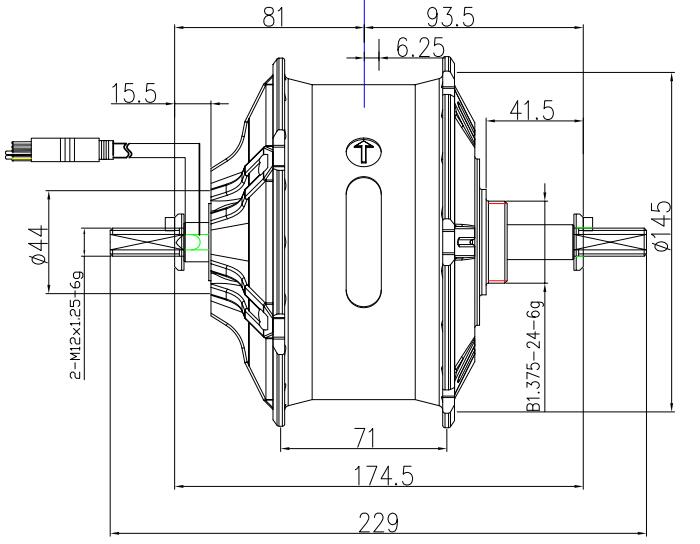

09RX drawing
