Elepedol SQ-M58 36V 48V 350W 500W 750W Ebike Geared Hub Motor

Elepedol SQ-M58 is high performance ebike geared motor. It has front ,rear and rear cassette version.The motor power ranges from 350W to 750W. It is the most powerful geared hub motor we supply for now.if you want high torque geared motor, catch it.

  • SQ-M58

  • ELEPEDOL

  • 8501310000

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

ELEPEDOL 36V 48V 350W 500W 750W GEARED HUB MOTOR

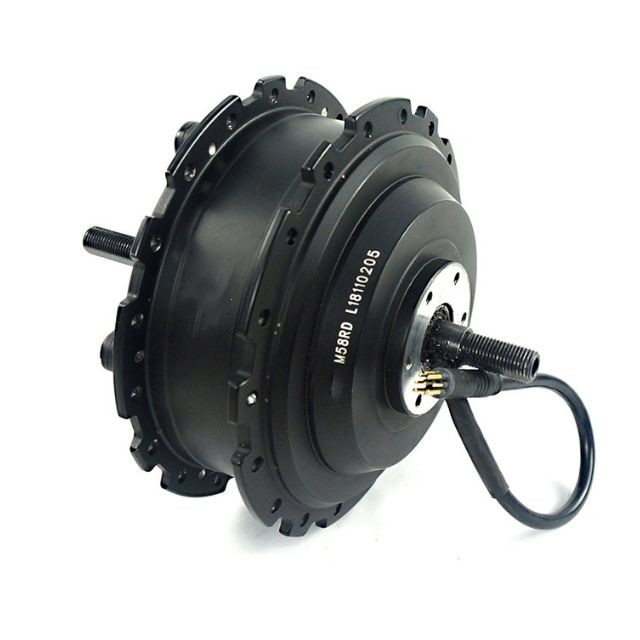

M58 ebike motor 03

SQ-M58 MODEL

There are 3 versions for this model ebike hub motor. Front wheel, rear wheel with freewheel, rear wheel with cassette. Among the geared hub motor we provide, it is the most powerful model. The motor's power ranges from 350W to 750W. If you are looking for a geared hub motor with big power, don't miss it.


SPECIFICATION


Position Front/ Rear
Construction
 Gear
Rated Voltage (V) 36 / 48
Rated Power  (W) 350/500/750
Weight (KG) 4.2
Reduction Ratio 1:12.5
Max Torque (N.m) 50
Wheel Szie 20''/22''/24''/26''/28''/700c
Spoke specification 36Hole      12g/13g
Rated speed (KM/H) 25-42
Magnet Poles (2P)  10
Operating temperature (℃） -20-45
Surface color  Black /Silver
Dropout (mm) Front:  100    /   Rear: 138    / Rear Cassette: 146
Drive and freewheel  Rear: 6s-8s     / Rear Cassette: 8s-10s
Brake type V / Disc brake
Efficiency (％） ≥80
Cable position  Shaft center right
Noise grade (db) ≤45
IP grade  54



DIMENSIONS

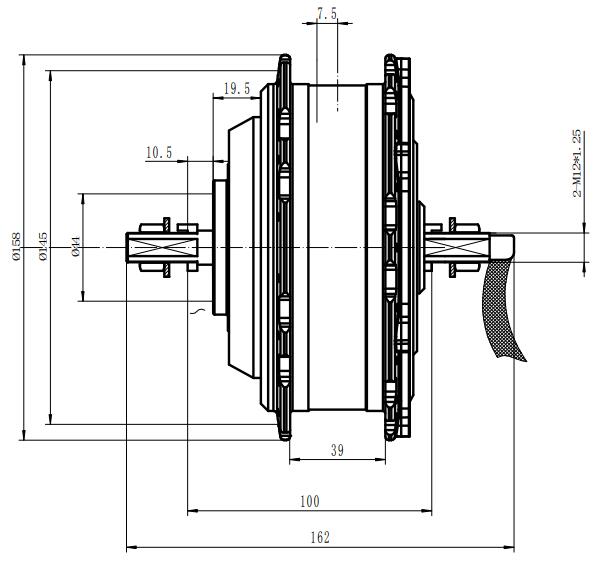

Front:


M58F drawing

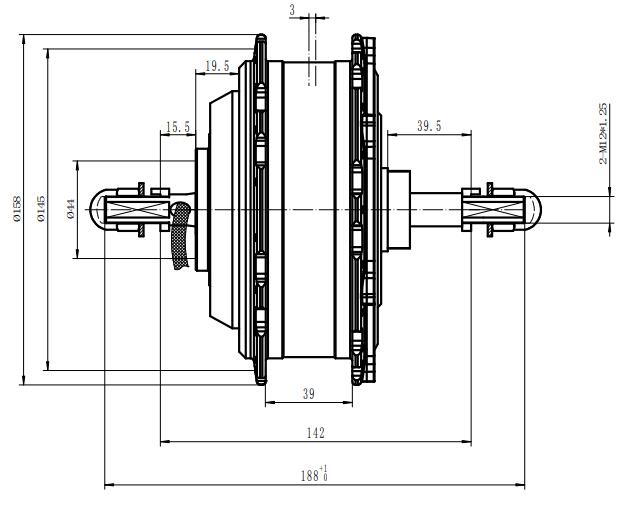

Rear:


M58R drawing

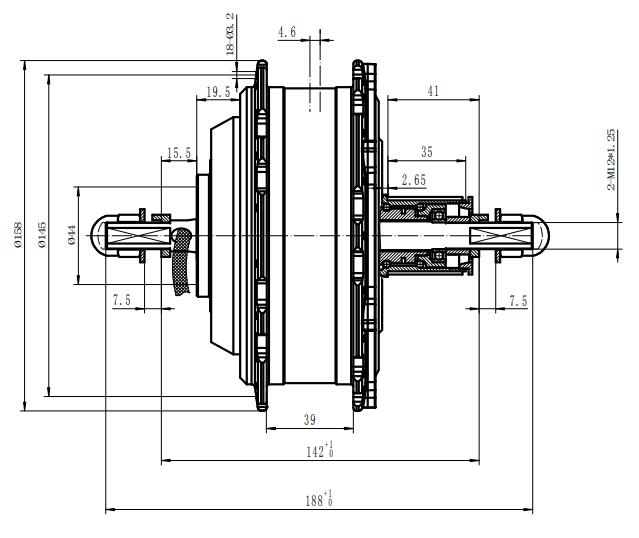

Cassette:

M58C drawing
