SQ-G350
ELEPEDOL
8501310000
| Quantity: | |
|---|---|

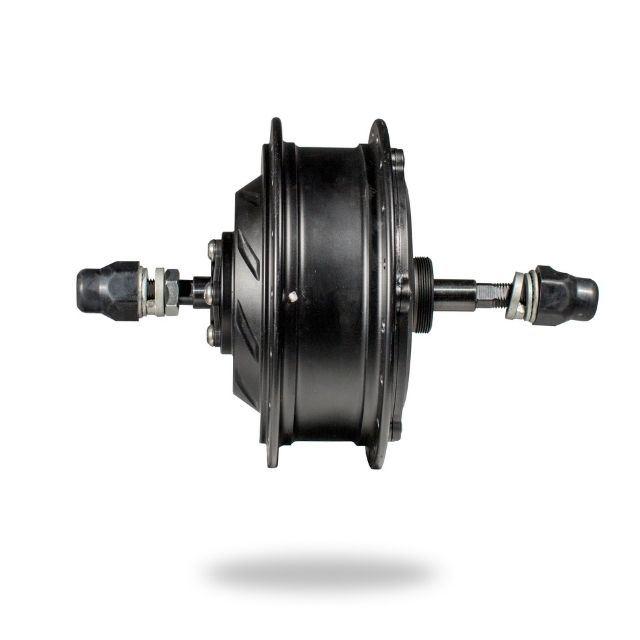

ELEPEDOL 36V 48V 350W 500W GEARED HUB MOTOR

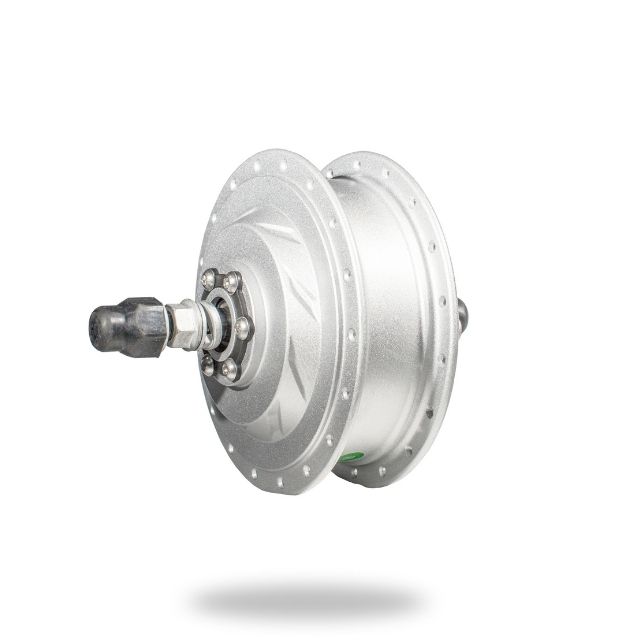

SQ-G350F
Front wheel
SQ-G350R
Rear freewheel wheel

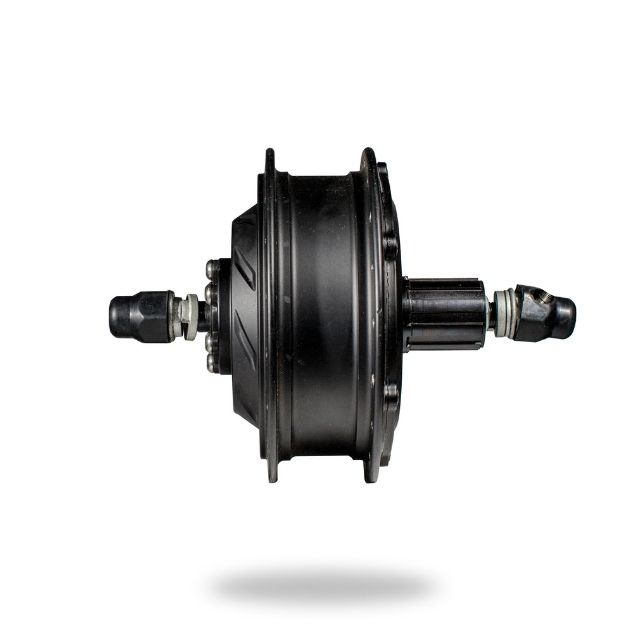

SQ-G350C
Rear cassette wheel
SPECIFICATION
| Position | Front/ Rear |
| Construction | Gear |
| Rated Voltage (V) | 36 / 48 |
| Rated Power (W) | 250 /350/500 |
| Weight (KG) | 3.8 |
| Reduction Ratio | 1: 5 |
| Max Torque (N.m) | 45 |
| Wheel Szie | 20''/22''/24''/26''/28''/700c |
| Spoke specification | 36Hole 12g/13g |
| Rated speed (KM/H) | 25-42 |
| Magnet Poles (2P) | 10 |
| Operating temperature (℃） | -20-45 |
| Surface color | Black /Silver |
| Dropout (mm) | Front: 100 / Rear: 138 / Rear Cassette: 146 |
| Drive and freewheel | Rear: 6s-8s / Rear Cassette: 8s-10s |
| Brake type | V / Disc brake |
| Efficiency (％） | ≥80 |
| Cable position | Shaft center right |
| Noise grade (db) | ≤45 |
| IP grade | 54 |
Elepedol 250W 350W 500W geared motor is designed according to EU standard. It is suitable for city bike, road bike, mountain bike etc. It is silent and powerful. It includes 3 models, front wheel, rear wheel with freewheel and rear cassette wheel, you can check the drawings of different models as below.
DIMENSIONS

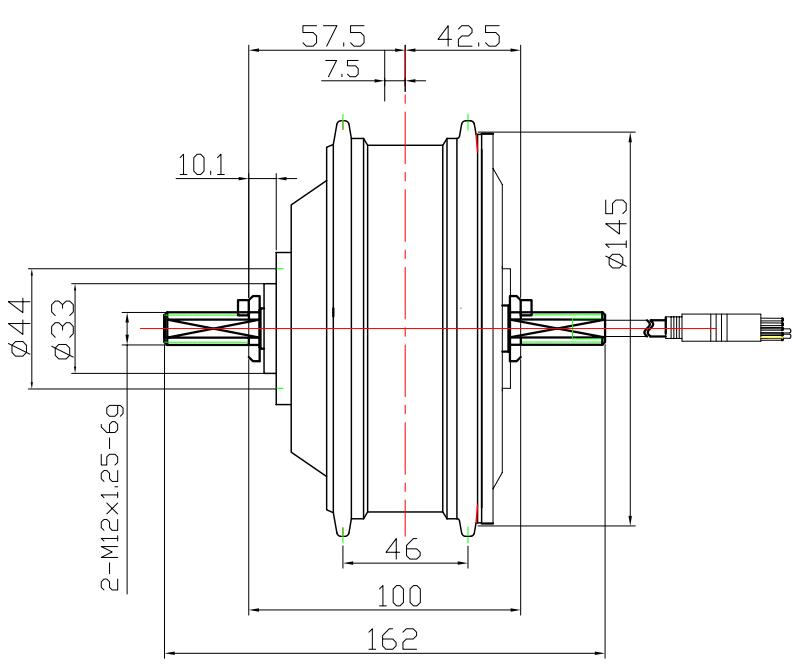

Front:

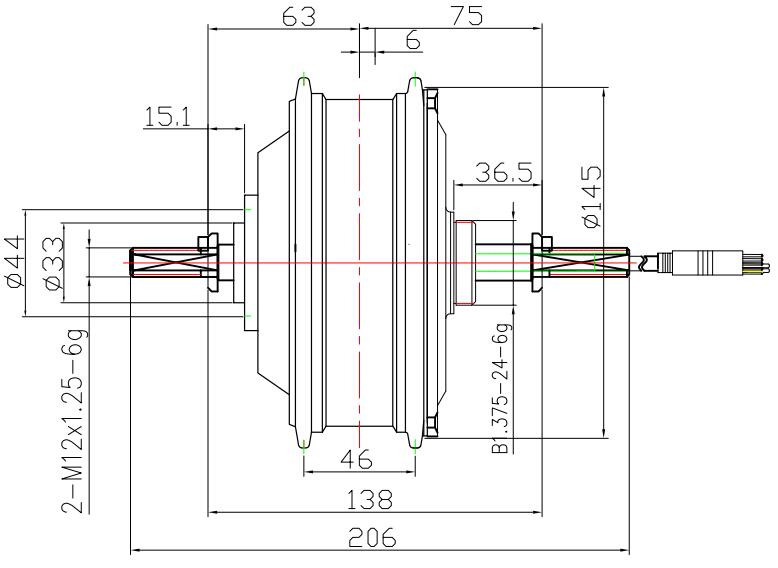

Rear:

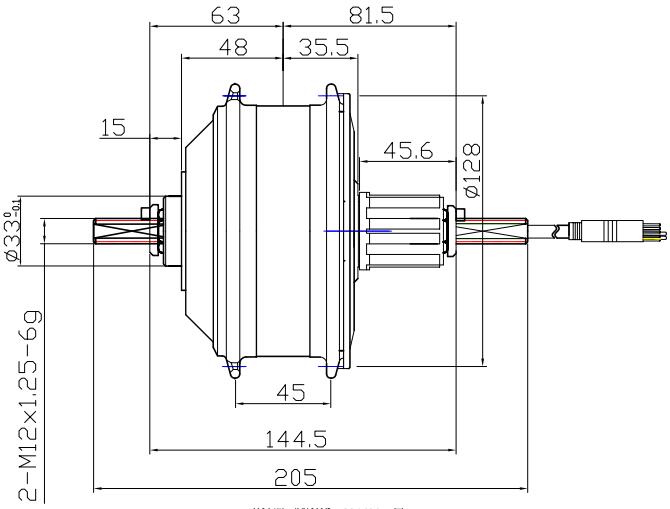

Cassette:
