SQ-GIR01
ELEPEDOL
8501310000
24V / 36V / 48 V
250W / 350W
Geared BLDC Hub Motor
| Quantity: | |
|---|---|

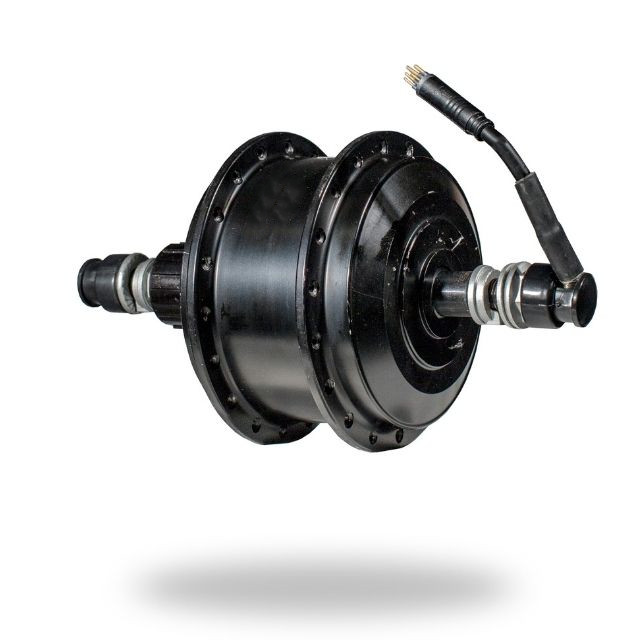

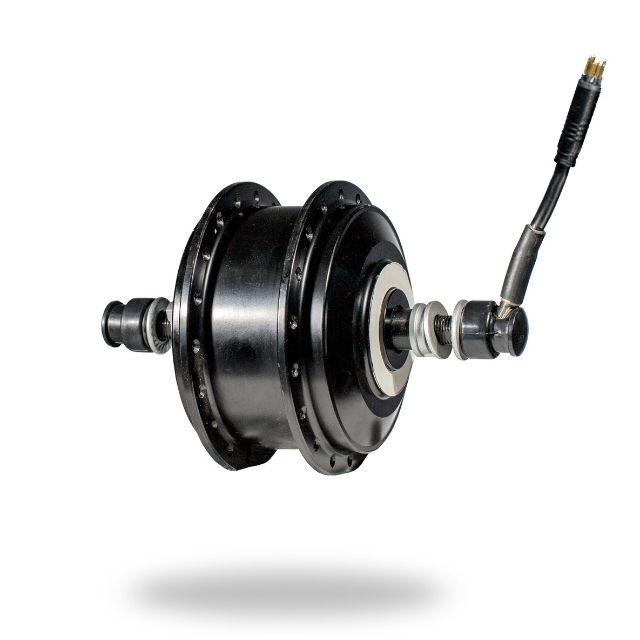

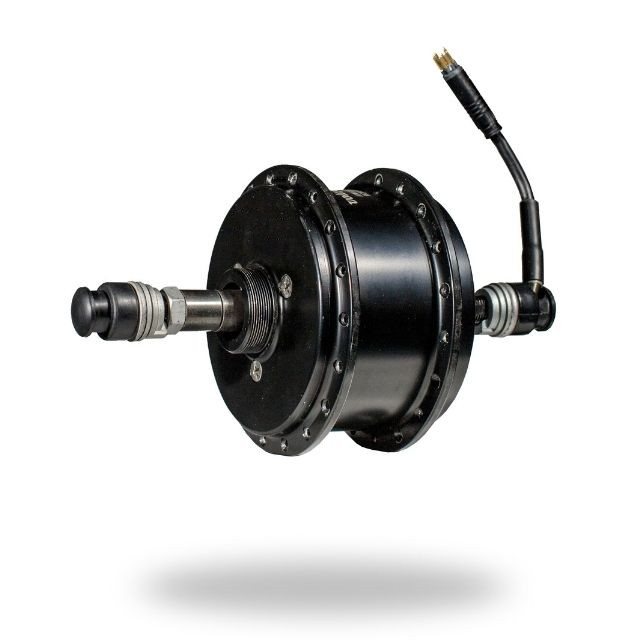

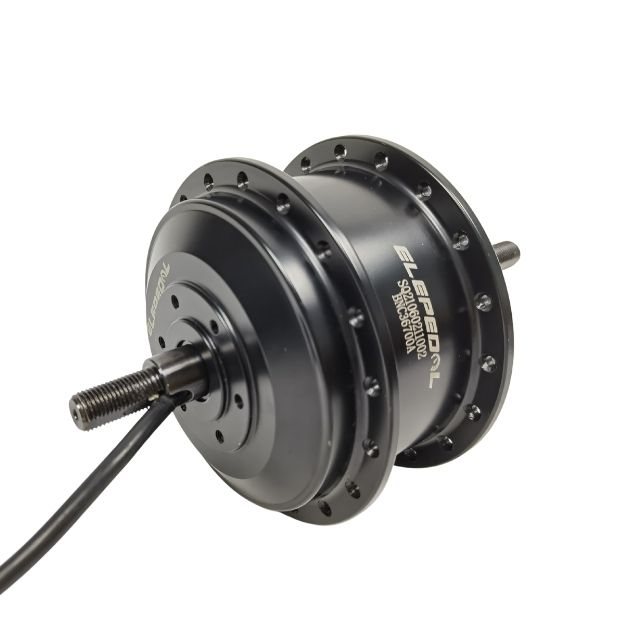

ELEPEDOL 250W INNER RATOR GEARED HUB MOTOR
SQ-GIR01F

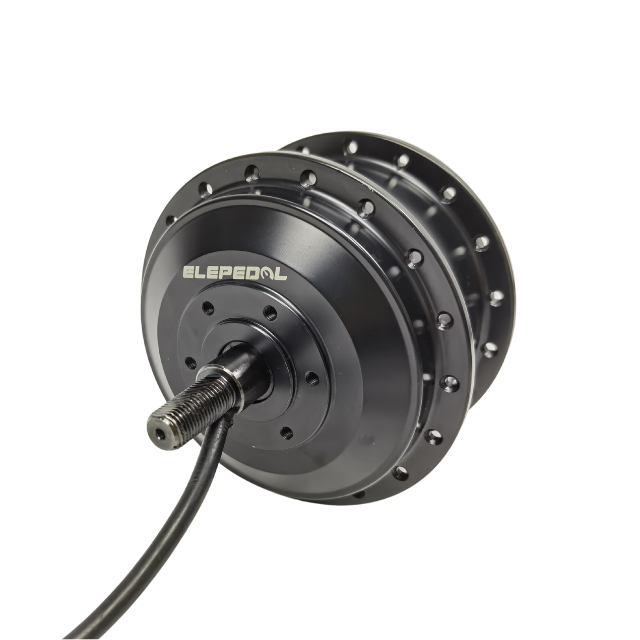

Front wheel motor
SQ-GIR01R
Rear wheel motor
SQ-GIR01C

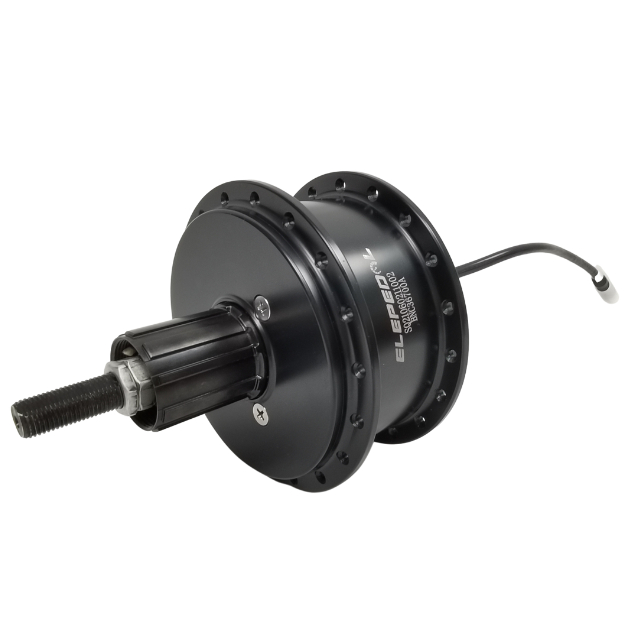

Rear cassette motor
SPECIFICATION
| Position | Front/ Rear |
| Construction | Gear |
| Rated Voltage (V) | 24 / 36 / 48 |
| Rated Power (W) | 250 / 350 |
| Weight (KG) | 2.0 |
| Reduction Ratio | 1: 12.6 |
| Max Torque (N.m) | 31 |
| Wheel Szie | 16''/18''/20''/22''/24''/26''/28''/700c |
| Spoke specification | 28Hole/ 36Hole 12g/13g |
| Rated speed (KM/H) | 25-30 |
| Magnet Poles (2P) | 8 |
| Operating temperature (℃） | -20-45 |
| Surface color | Black /Silver |
| Dropout (mm) | Front: 100 / Rear: 135 / Rear Cassette: 138 |
| Drive and freewheel | Rear: 6s-8s / Rear Cassette: 8s-10s |
| Brake type | V / Disc brake |
| Efficiency (％） | ≥80 |
| Cable position | Shaft center left |
| Noise grade (db) | ≤45 |
| IP grade | 54 |
Elepedol Inner rotor 250W 350W geared motor is designed according to EU standard for road traffic law. It is suitable for city bike, silent and powerful. Max torque can reach to 31Nm, max speed can reach to 32km/h. Max loading weight is suggested to be 90kg. Normally, customers make it 36V 250W, max speed loading speed 25km/h. It includes 3 models, front wheel, rear wheel with freewheel and rear cassette wheel, you can check the drawings of different models as below.
DIMENSIONS

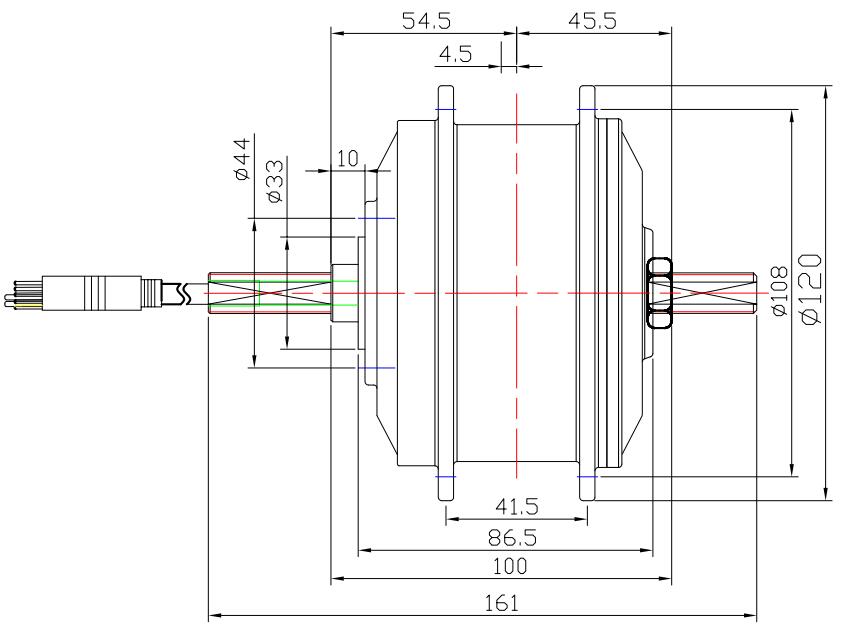

Front:
Rear:

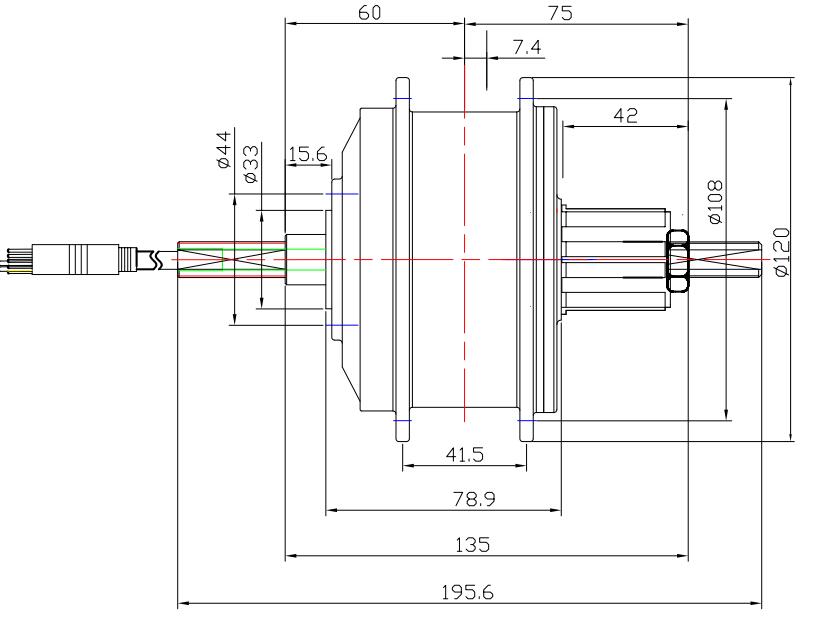

Cassette:
ELEPEDOL 250W INNER RATOR GEARED HUB MOTOR
SQ-GIR01F
Front wheel motor
SQ-GIR01R
Rear wheel motor
SQ-GIR01C
Rear cassette motor
SPECIFICATION
| Position | Front/ Rear |
| Construction | Gear |
| Rated Voltage (V) | 24 / 36 / 48 |
| Rated Power (W) | 250 / 350 |
| Weight (KG) | 2.0 |
| Reduction Ratio | 1: 12.6 |
| Max Torque (N.m) | 31 |
| Wheel Szie | 16''/18''/20''/22''/24''/26''/28''/700c |
| Spoke specification | 28Hole/ 36Hole 12g/13g |
| Rated speed (KM/H) | 25-30 |
| Magnet Poles (2P) | 8 |
| Operating temperature (℃） | -20-45 |
| Surface color | Black /Silver |
| Dropout (mm) | Front: 100 / Rear: 135 / Rear Cassette: 138 |
| Drive and freewheel | Rear: 6s-8s / Rear Cassette: 8s-10s |
| Brake type | V / Disc brake |
| Efficiency (％） | ≥80 |
| Cable position | Shaft center left |
| Noise grade (db) | ≤45 |
| IP grade | 54 |
Elepedol Inner rotor 250W 350W geared motor is designed according to EU standard for road traffic law. It is suitable for city bike, silent and powerful. Max torque can reach to 31Nm, max speed can reach to 32km/h. Max loading weight is suggested to be 90kg. Normally, customers make it 36V 250W, max speed loading speed 25km/h. It includes 3 models, front wheel, rear wheel with freewheel and rear cassette wheel, you can check the drawings of different models as below.
DIMENSIONS
Front:

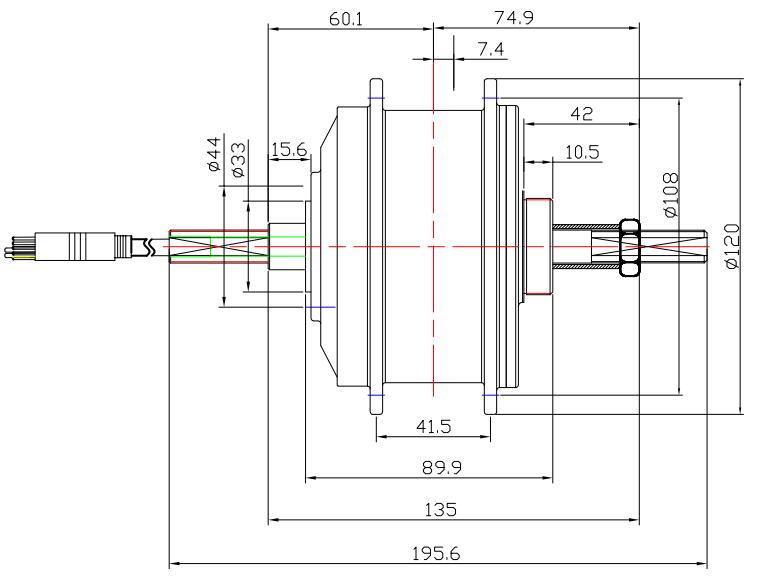

Rear:
