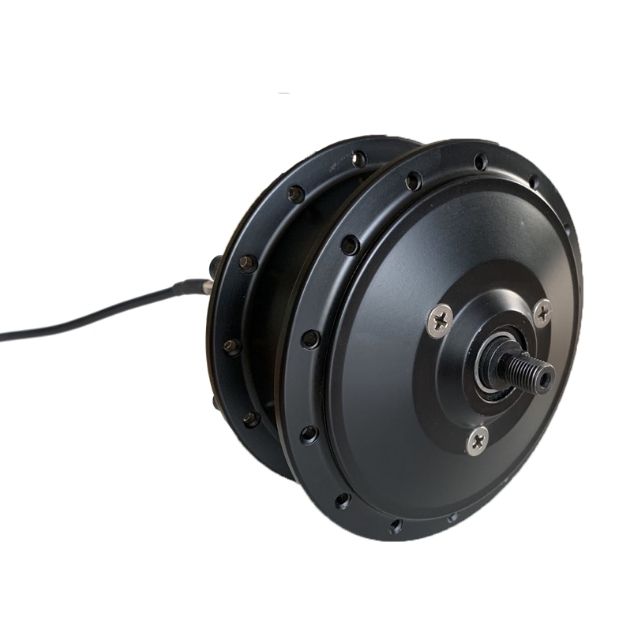

Elepedol SQ-GIR02 36V 250W 74mm Dropout Inner Rator Geared Hub Motor

Elepedol GIR02 geared hub motor is an inner rator brompton geared ebike motor. Its dropout size is 74mm, and it's very light, its weight is only 1.8KG. Max torque can reach to 27Nm, max speed can reach to 30km/h. Compared with SQ-D200 gearless hub motor, it is lighter and more powerful.

  • SQ-GIR02

  • ELEPEDOL

  • 8501310000

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

SPECIFICATION

Position Front
Construction
 Gear
Rated Voltage (V) 24 / 36 / 48
Rated Power  (W) 250
Weight (KG) 1.8
Reduction Ratio 1:12.6
Max Torque (N.m) 27
Wheel Szie 16''/18''/20''/22''
Spoke specification 28Hole      12g/13g
Rated speed (KM/H) 25-30
Magnet Poles (2P)  10
Operating temperature (℃） -20-45
Surface color  Black /Silver
Dropout (mm) 74
Drive and freewheel  /
Brake type V / Disc brake
Efficiency (％） ≥80
Cable position  Shaft center left
Noise grade (db) ≤45
IP grade  54

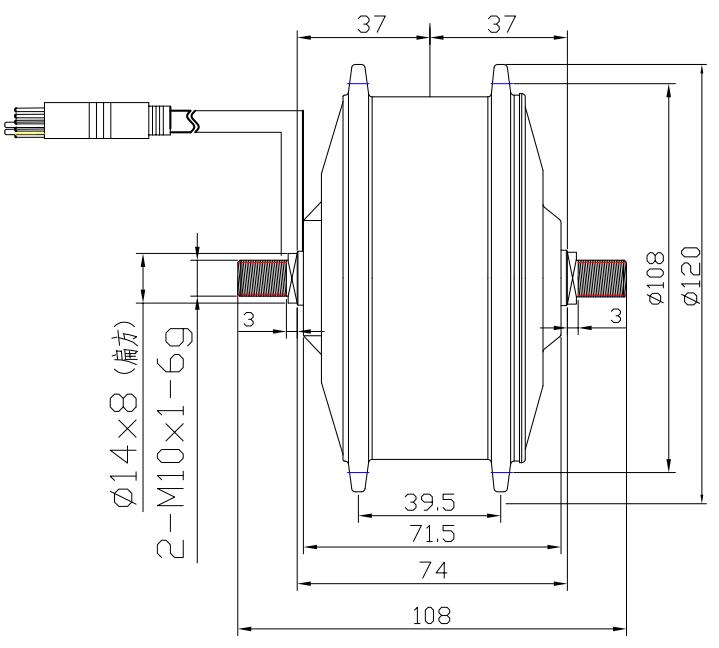

DIMENSION

GIR02 ebike motor drawing
