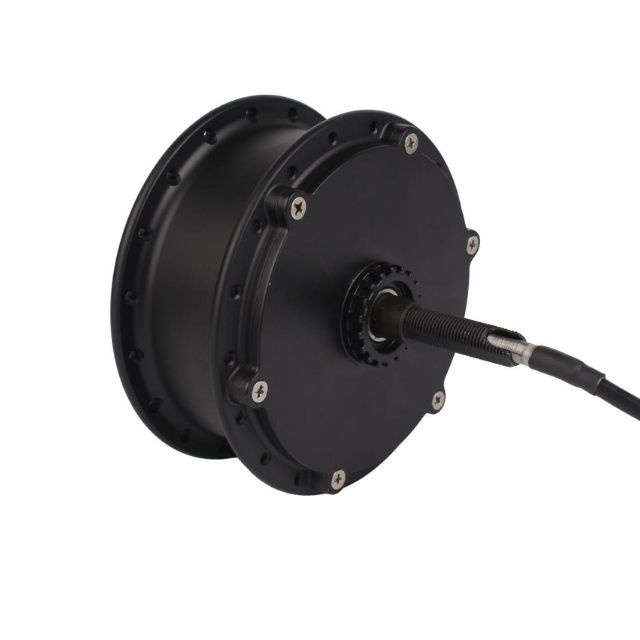

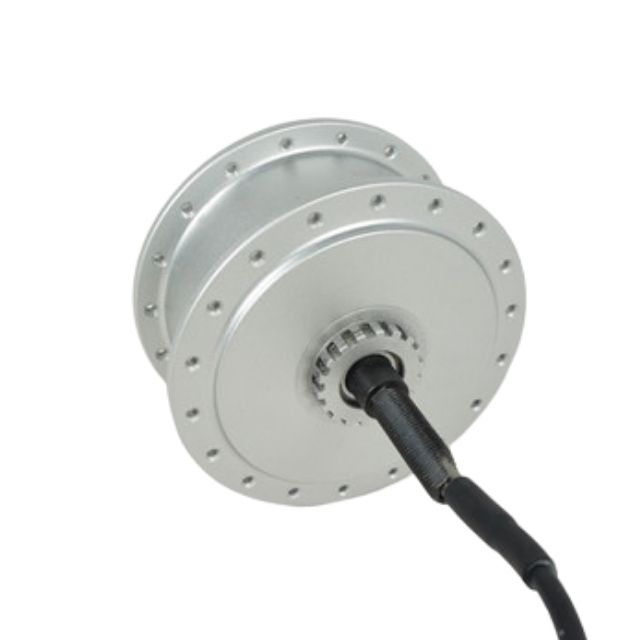

Elepedol SQ-R100 250W Roller Brake Front Wheel Ebike Geared Hub Motor

Elepedol SQ-R100 model motor is roller brake motor for electric bike. It is installed in the front wheel of the electric bicycle. Max torque can reach to 31Nm, max speed cam reach to 28km/h. It is more popular in Netherlands, compared with other countries.

  • SQ-R100

  • ELEPEDOL

  • 8501310000

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

SPECIFICATION

Position Front
Construction
 Gear
Rated Voltage (V) 24/ 36 / 48
Rated Power  (W) 200 / 250
Weight (KG) 2.8
Reduction Ratio 1:4.4
Max Torque (N.m) 31
Wheel Szie 16''/18''/20''/22''/24''/26''/28''/700c
Spoke specification  36Hole      12g/13g
Rated speed (KM/H) 25-28
Magnet Poles (2P)  10
Operating temperature (℃） -20-45
Surface color  Black /Silver
Dropout (mm) 100
Drive and freewheel  /
Brake type Roller brake
Efficiency (％） ≥80
Cable position  Shaft center left
Noise grade (db) ≤45
IP grade  54

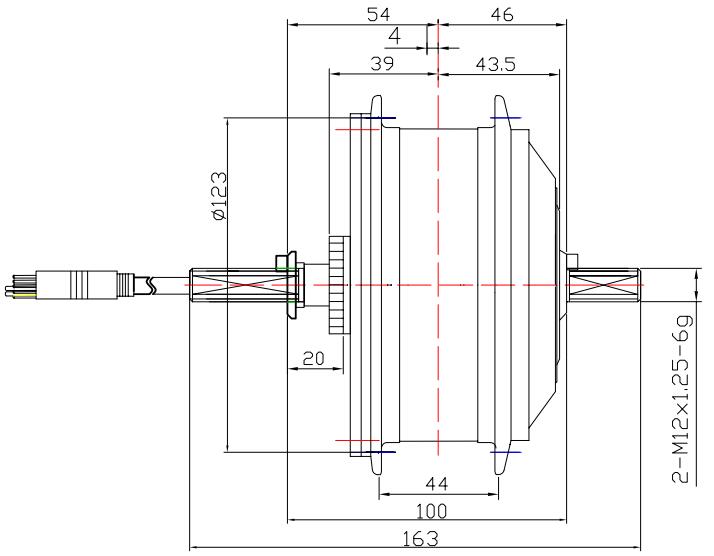

DIMENSION

R100 drawing
