Elepedol 12inch 14inch 16inch 250W 350W Single-speed Aluminum Casting Wheel Motor

Elepedol SQ-12A /14A/ 16A model motors are single speed aluminum casting wheel motors. Using them, then no need spokes. And, we will provide the matched front wheel for you. Compared with spoked wheel motors, the cost is cheaper, and production time is shorter. Since they don't need to be installed with the spokes. The motors max torque can be 41Nm, max speed can reach to 32km/h. If you think our design is not the one as you need, just please share your customized design with us, our engineers will check if your designs can be realized into production.
  • SQ-12A /14A /16A

  • ELEPEDOL

  • 8501310000

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

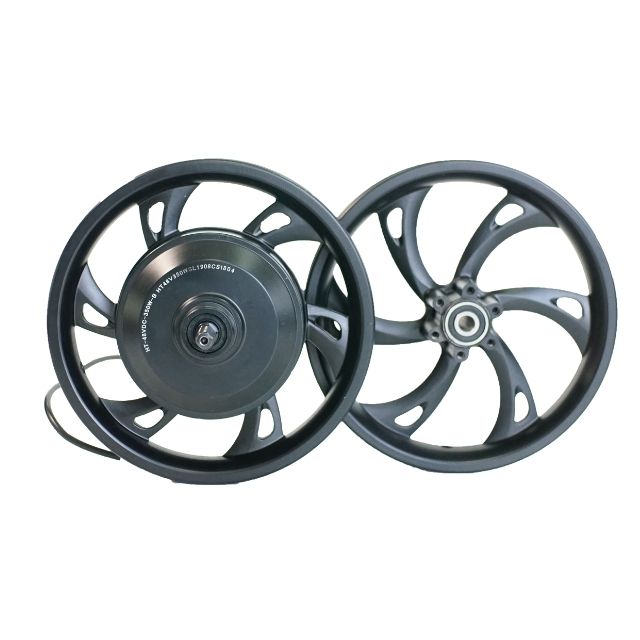

SQ12A ebike motor 001

SQ-12A

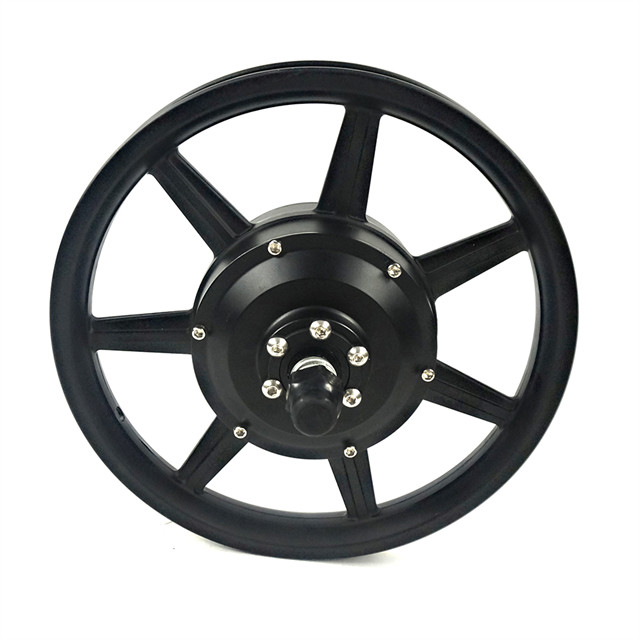

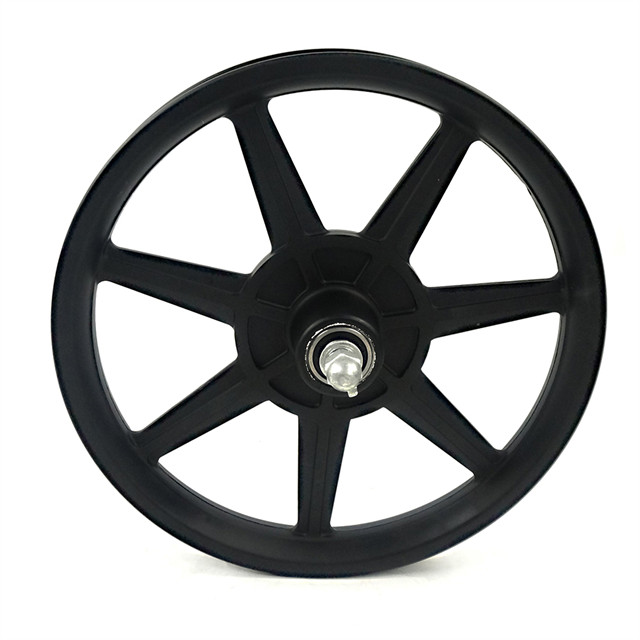

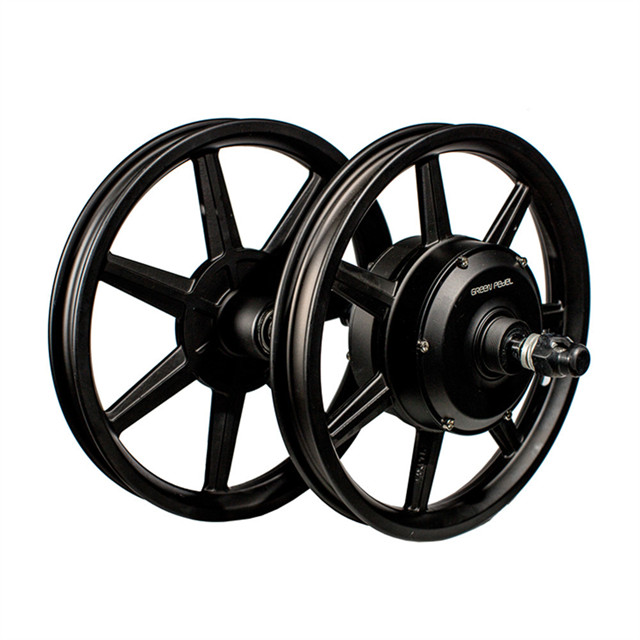

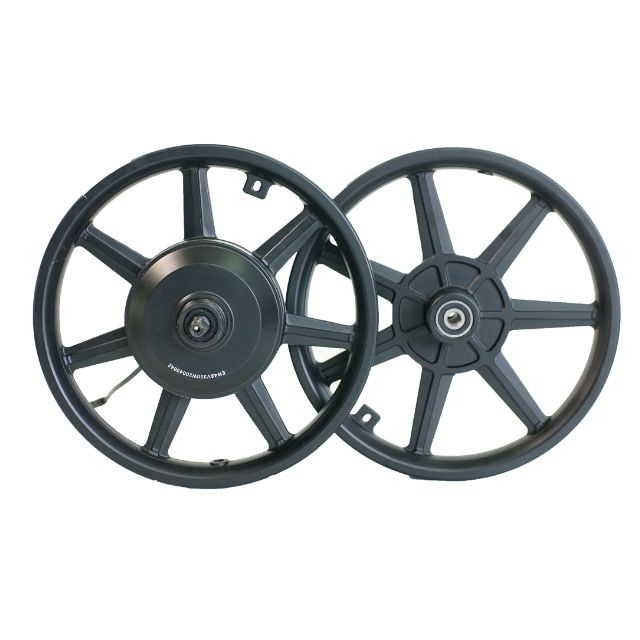

SQ14A ebike motor 001

SQ-14A

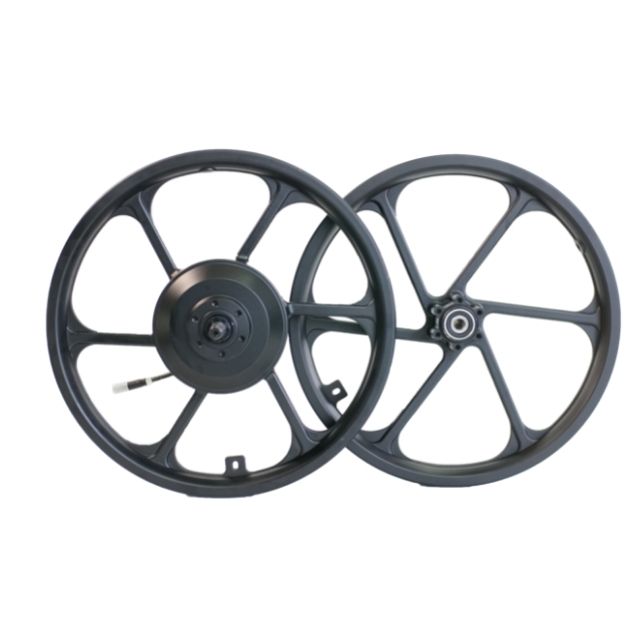

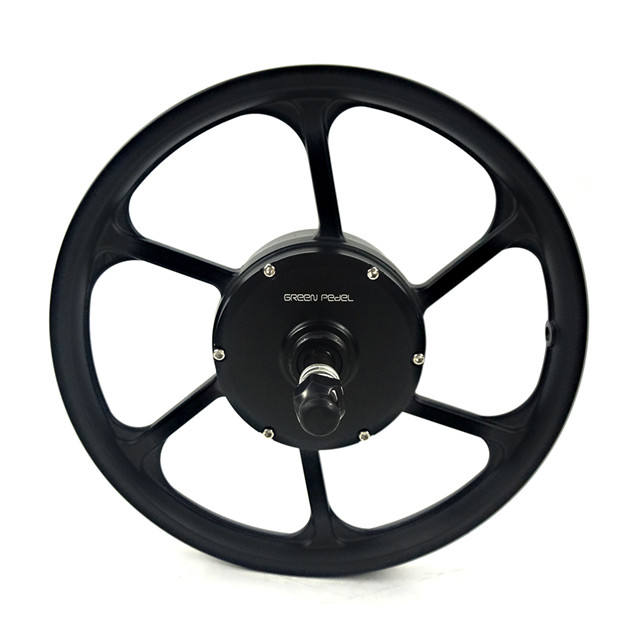

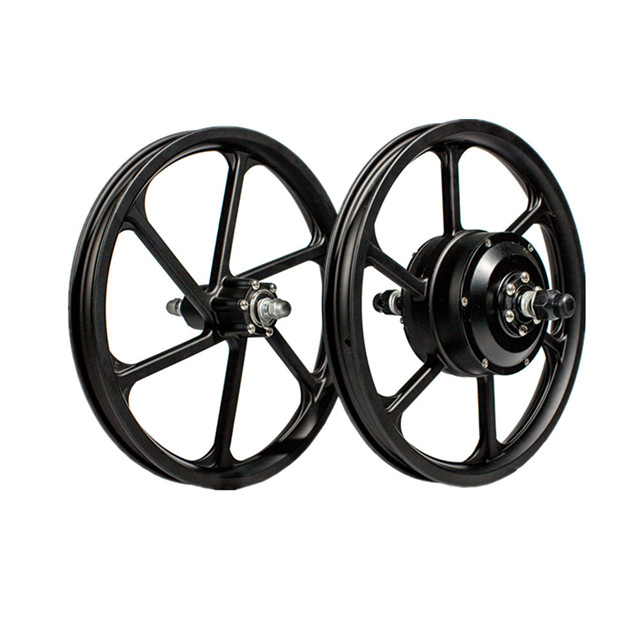

SQ16A ebike motor 001

SQ-16A


SPECIFICATION

Position Rear
Construction
Gear
Rated Voltage (V) 36 / 48
Rated Power  (W) 250 /350
Weight (KG) 3.5-4.8
Reduction Ratio 1:4.4
Max Torque (N.m) 41
Wheel Szie 12'' / 14'' / 16''
Spoke specification  /
Rated speed (KM/H) 25-32
Magnet Poles (2P)  10
Operating temperature (℃) -20-45
Surface color  Black /Silver
Dropout (mm) 135
Drive and freewheel  single speed
Brake type V / Disc brake
Efficiency (%) ≥80
Cable position  Shaft center right / left (optional)
Noise grade (db) ≤45
IP grade  54

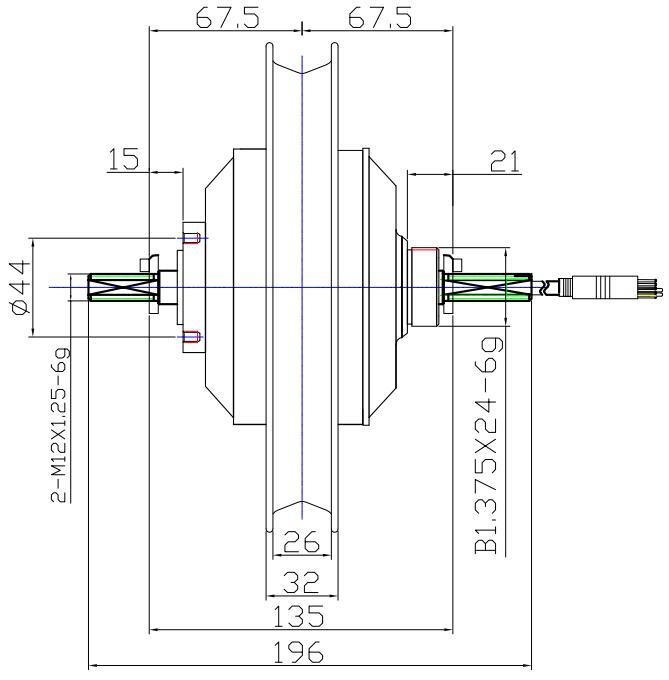

DIMENSION


12 14 16 drawing
