Elepedol SQ-V12 Electric Bike Double Hall Pedal Assist Speed Sensor

1. Adopting the integrated structure design of double Hall detecting element and built-in disk, it has unique novel and beautiful appearance.
2. Compared with the traditional separate sensor, it realizes the coaxial movement of the disk and the magnetic sensing element, with high sensing sensitivity and stable signal.
3. 12 signal output, fast response speed of booster, can automatically distinguish forward and reverse rotation when pedaling.
4. It's easy and convenient to install and remove. The sensor is divided into two types: left-side installation and right-side installation, the left type is KT-V12L, and the right type is KT-V12R.

  • KT-V12

  • Elepedol

  • 24V / 36V / 48 V/ 72V

  • 250W / 350W / 500W / 1000W / 1500W / 3000W

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Parameter


Product name  Elepedol KT-V12 dual hall speed pedal assist sensor
Installation   Left/ Right
Voltage (V) 36/ 48
Color Black
Weight  (g) 50
Magnet  (pc) 12
Cable length (mm) 800mm including the connector
Plug 3 pin connector

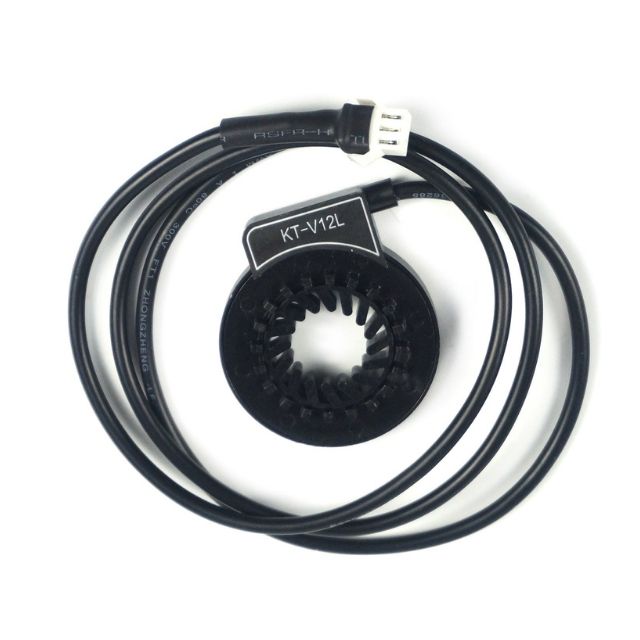

V12 pedal assist sensor 000

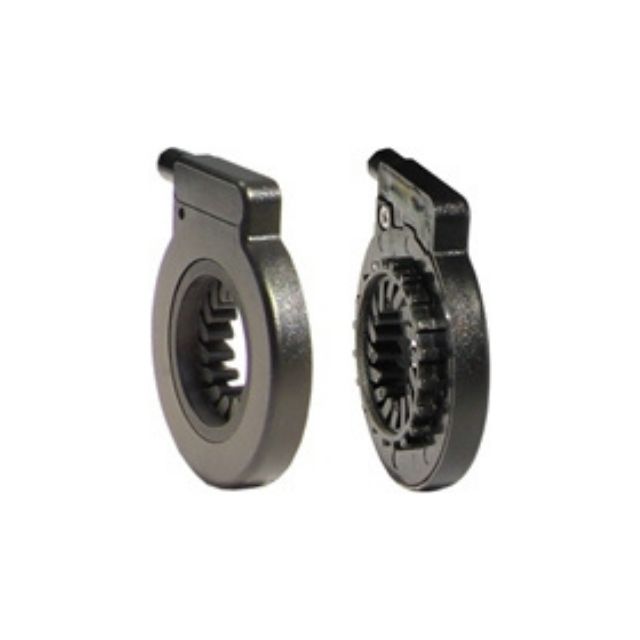

face squarely view

V12 pedal assist sensor ceshi

side view

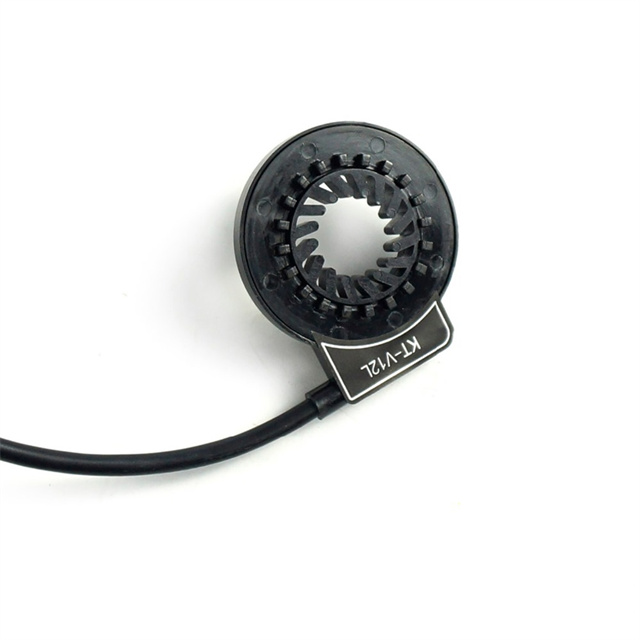

ebike V12 pedal assist sensor 001

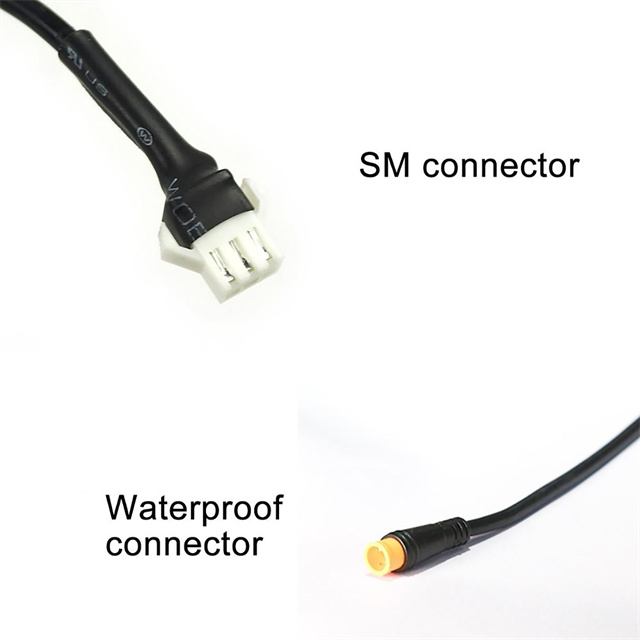

There are 2 types connectors for your option. SM connector, Julet waterproof connector. Both of them are 3 pin signal.

ebike V12 pedal assist sensor 004

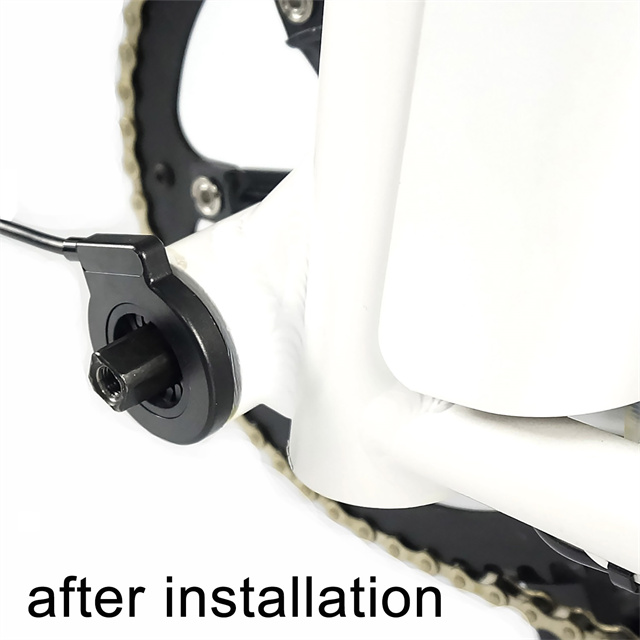

It's easy to install the V12 pedal assist sensor. Right picture is to show you the ebike installed with V12L dual hall pedal assist sensor.







Take the V12 model as an example to show you how to install the V12L in the electric bike.

V12001

Step 1

V12002

Step 2

V12003

Step 3

V12004

Step 4

Step 1: find the left side bottom bracket of the bicycle

Step 2: Remove the crank of the bike

Step 3: install the pedal assist sensor

Step 4: intsall the crank in the electric bike
