Elepedol SQ-D1500S 1500W 3000W Gearless Electric Motor for Fat Tire Bike

Elepedol SQ-D1500S gearless motor is a kind of electric motor for fat tire bike. The power ranges from 1000W to 3000W. Normally, customers make it 1500W. The dropout size is 170mm. Max speed can be 45km/h, maxt torque can reach to 80Nm, max loading weight is suggested to be 165KG. Because of the big working current for the motor, so the motor cable must use 4 square model.

  • SQ-D1500S

  • Elepedol

  • 8501310000

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

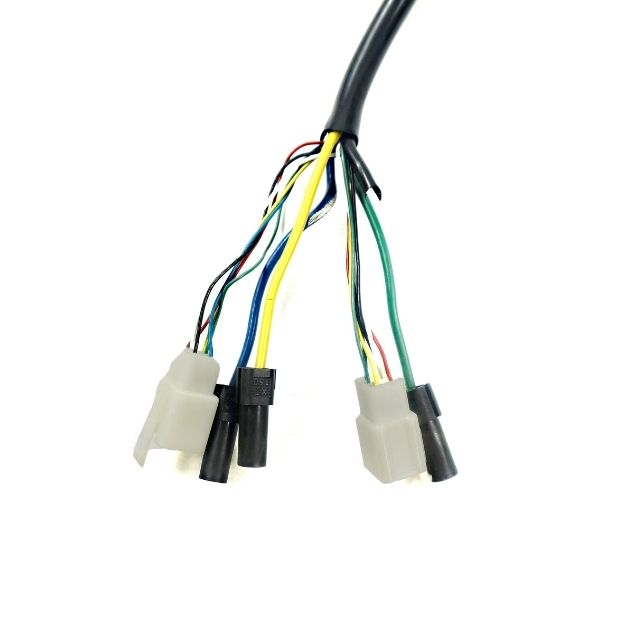

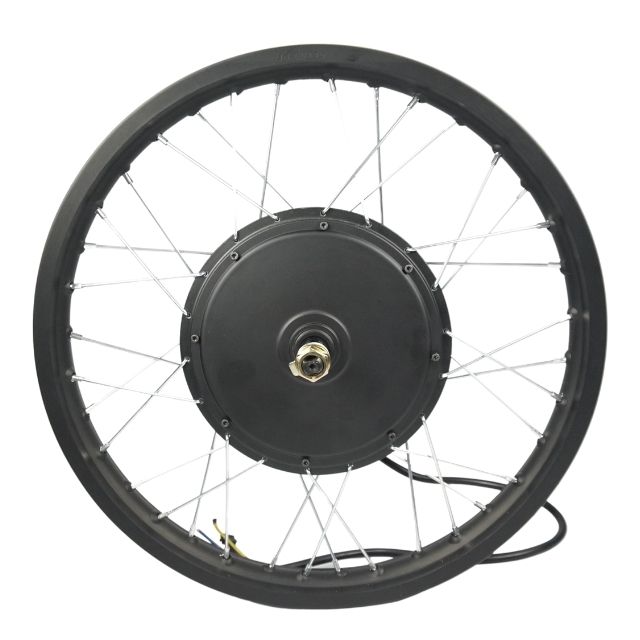

D1500A ebike motor 010

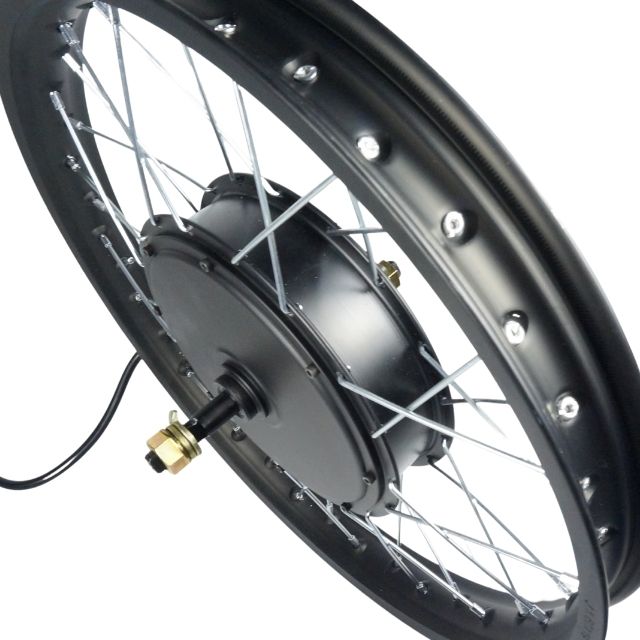

D1500A ebike motor 003


SPECIFICATION


Position Rear
Construction
 Gearless
Rated Voltage (V) 48 /72V
Rated Power  (W) 1000 / 1500 /3000
Weight (KG) 11
Max loading weight (KG) 165
Max Torque (N.m) 80
Wheel Szie 26''/28''/700c
Spoke specification 36Holes       10g
Rated speed (KM/H) 42-45
Magnet Poles (2P)  23
Operating temperature (℃） -20-45
Surface color  Black /Silver
Dropout (mm) 170
Drive and freewheel  Rear: 6s-7s / single-speed  (the axle should be customized)
Brake type V / Disc brake
Efficiency (％） ≥80
Cable position  Shaft side left
Noise grade (db) ≤45
IP grade  54


DIMENSION

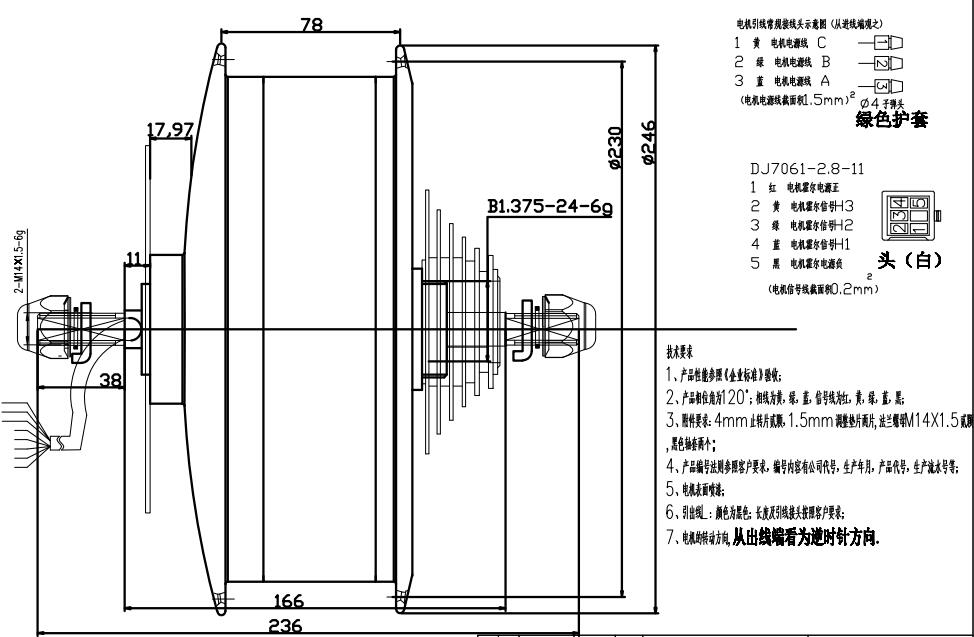

D1500S drawing

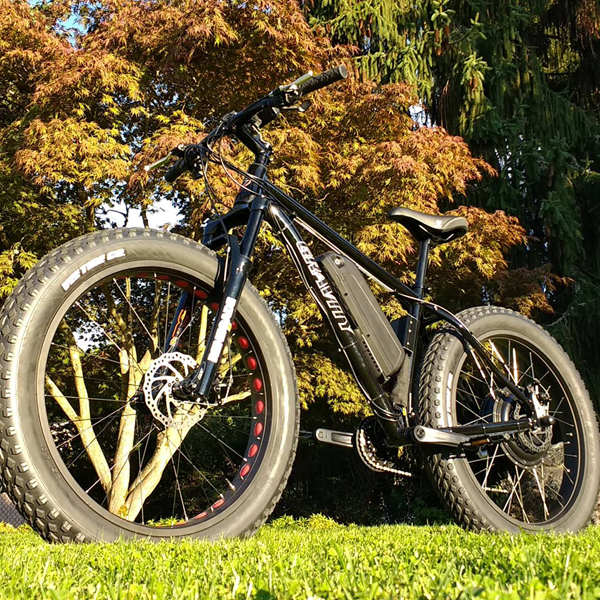

Fat tire electric bike installed with Elepedol SQ-D1500S gearless hub motor:




fat tire ebike
