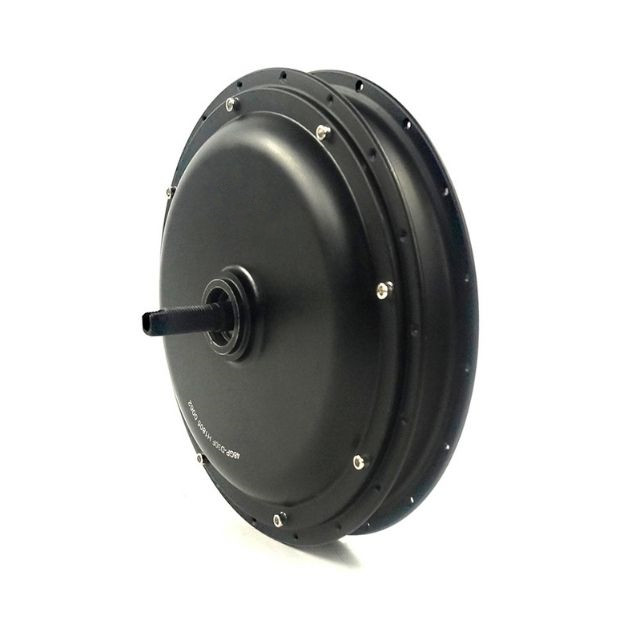

Elepedol SQ-D500 500W 750W Gearless Electric Bike Hub Motor

Elepedol D500 series model motors are gearless hub motor for electric bike. We provide 3 options for you. Front wheel, rear wheel with freewheel, and rear wheel with cassette. Max speed can reach to 45km/h, max torque can reach to 50Nm. Max loading weight is suggested to 130KG. It's powerful and more silent compared with geared electric motor for bike. Most customers choose to use this model for off-road, and when you plan to use this model on city road legally, just set a prameter in LCD display, then the power will be limitted and the speed will no more than 25km/h. Under this condition, you can enjoy not only the high speed on for off-road, but also the riding on city-road.

  • SQ-D500

  • Elepedol

  • 8501310000

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

SPECIFICATION


Position Front / Rear
Construction
 Gearless
Rated Voltage (V) 36 / 48
Rated Power  (W) 250 /350/500/750
Weight (KG) 6
Reduction Ratio /
Max Torque (N.m) 50
Wheel Szie 20''/24''/26''/28''/700c
Spoke specification 36Holes       12g/13g
Rated speed (KM/H) 35-45
Magnet Poles (2P)  23
Operating temperature (℃） -20-45
Surface color  Black /Silver
Dropout (mm) 100 / 138 / 146
Drive and freewheel  Rear: 6s-7s / Rear cassette:  8s-9s
Brake type V / Disc brake
Efficiency (％） ≥80
Cable position  Front: Shaft center right    Rear: Shaft side left
Noise grade (db) ≤45
IP grade  54



DIMENSIONS


D500F (Front wheel ebike motor):


D500F drawing 001

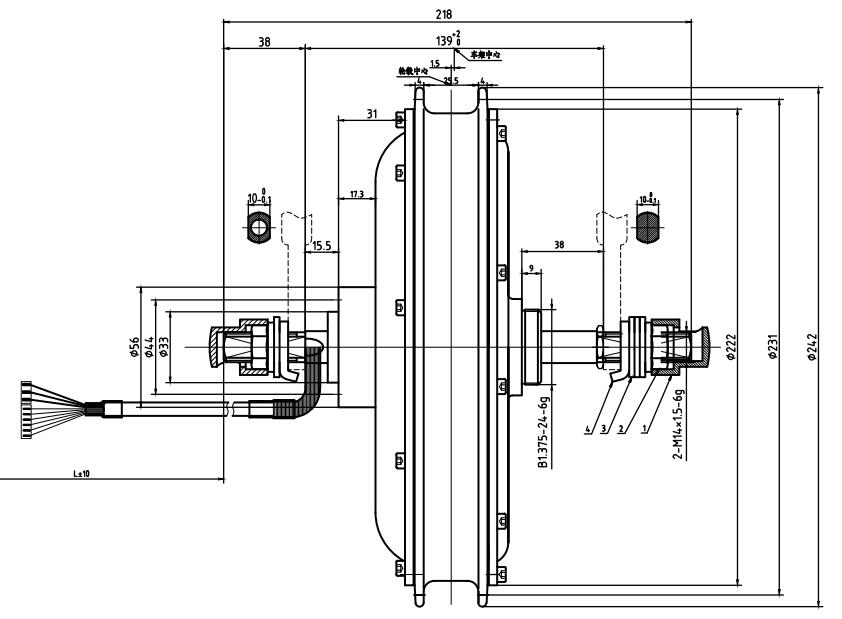

D500R(Rear wheel with freewheel ebike motor):


D500R drawing 001


D500C(Rear wheel with cassette ebike motor):


D500C drawing
