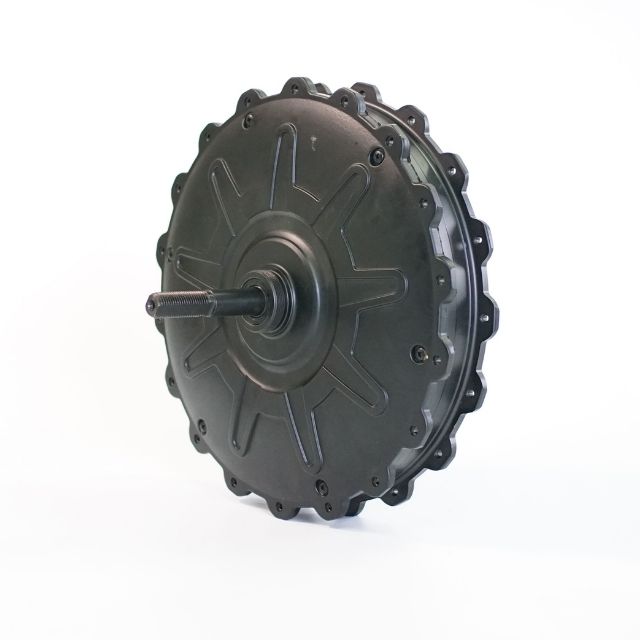

Elepedol SQ-11RX New Design 350w 500w 750w Gearless Hub Motor

Elepedol SQ-11RX motor is a new design gearless ebike hub motor. It is specially used in the rear wheel. Rated power is 350W to 750W, max torque can reach to 53Nm, max speed can reach to 45km/h. Compared normal gearless hub motor, it has fashion design and lighter. If you are looking for a rear wheel gearless hub motor for the ebikes, please don't miss this model.

  • SQ-11RX

  • ELEPEDOL

  • 8501310000

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

SPECIFICATION

Position Rear
Construction
 Gearless
Rated Voltage (V) 36 / 48
Rated Power  (W) 350/500/750
Weight (KG) 5.7
Reduction Ratio 1:1
Max Torque (N.m) 53
Wheel Szie 20''/22''/24''/26''/28''/700c
Spoke specification 36Hole      12g/13g
Rated speed (KM/H) 25-45
Magnet Poles (2P)  23
Operating temperature (℃） -20-45
Surface color  Black /Silver
Dropout (mm) 135
Drive and freewheel  6s-8s
Brake type V / Disc brake
Efficiency (％） ≥80
Cable position  Shaft center left
Noise grade (db) ≤45
IP grade  54


DIMENSION

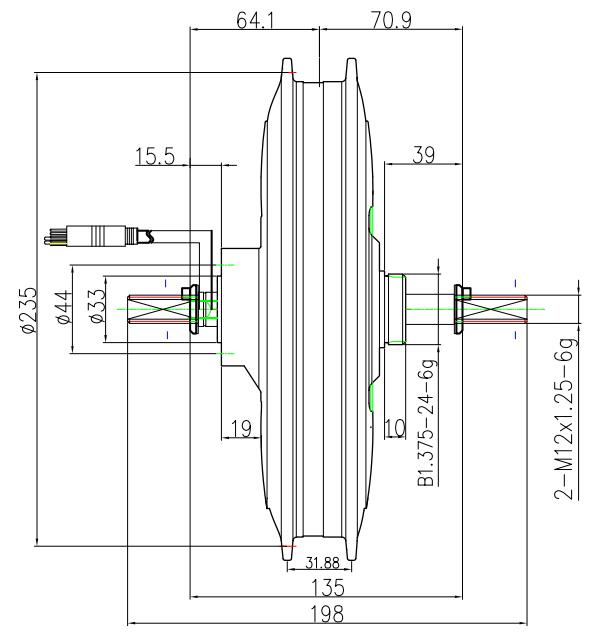

11RX drawing
