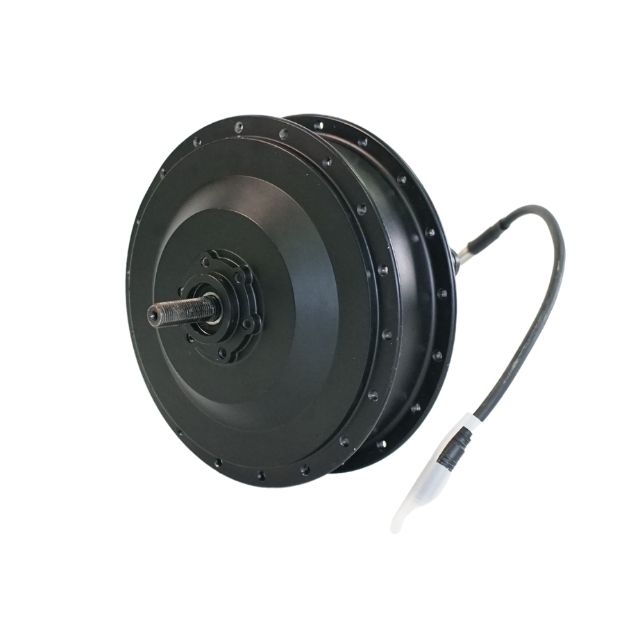

Elepedol SQ-10RX High Speed 350W 500W Rear Wheel Geared Hub Motor

Elepedol SQ-10RX /SQ-10CX motor are 350W/ 500W rear wheel motors, the former one is rear wheel with freewheel, the latter one is rear wheel with cassette. Max torque can reach to 55Nm, max speed can reach to 38km/h. If you are looking for a rear wheel geared hub motor with 500W power and low budget, then please don't miss this model.

  • SQ-10RX / SQ-10CX

  • ELEPEDOL

  • 8501310000

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

SPECIFICATION

Position Rear
Construction
 Gear
Rated Voltage (V) 36 / 48
Rated Power  (W) 350 / 500
Weight (KG) 5.0
Reduction Ratio 1:5.3
Max Torque (N.m) 55
Wheel Szie 20''/22''/24''/26''/28''/700c
Spoke specification 36Hole      12g/13g
Rated speed (KM/H) 25-38
Magnet Poles (2P)  10
Operating temperature (℃） -20-45
Surface color  Black /Silver
Dropout (mm) 10RX: 135    / 10CX: 140
Drive and freewheel  Rear: 6s-8s     / Rear Cassette: 8s-10s
Brake type V / Disc brake
Efficiency (％） ≥80
Cable position  Shaft center right
Noise grade (db) ≤45
IP grade  54


DIMENSION

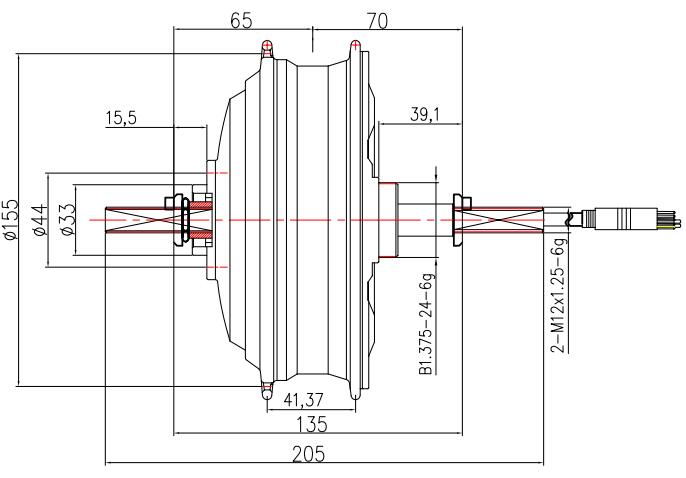

Rear wheel with freewheel (SQ-10RX):

10RX drawing

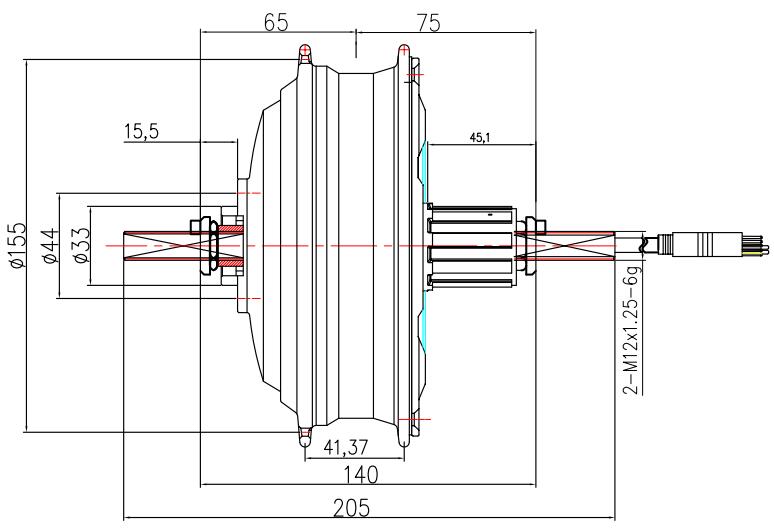

Rear wheel with cassette (SQ-10CX):

10cx drawing
