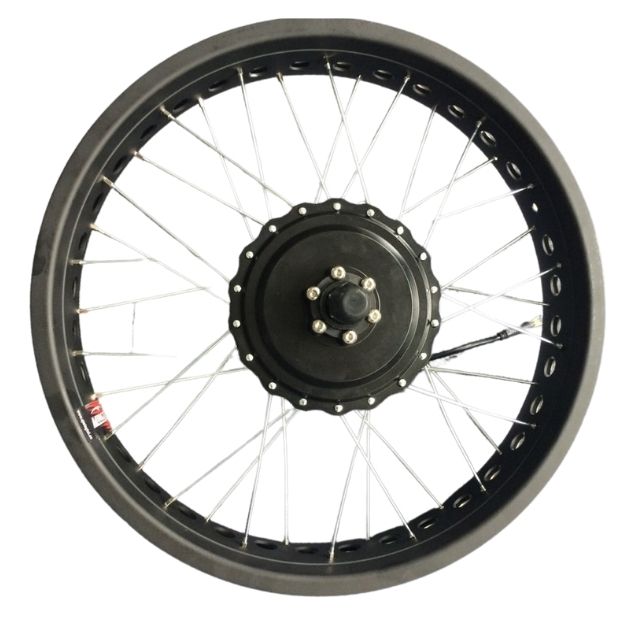

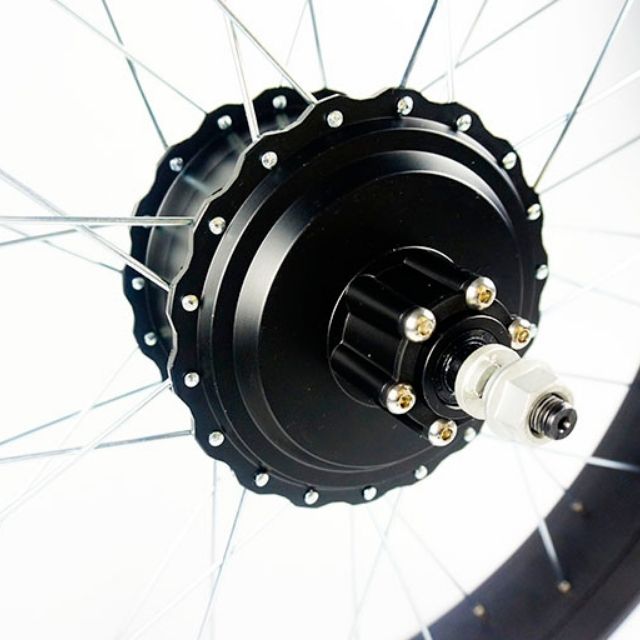

Elepedol SQ-G500S 350W 500W 750W Fat Tire Ebike Geared Hub Motor

Elepedol SQ-G500S series fat bike ebike motor is a classical model. It has 3 models, front wheel, rear wheel with freewheel, rear wheel with cassette. Max torque can reach to 78Nm, max speed can reach to 45km/h. Compared with the same power in gearless motors, its weight is really so light, only 4.2KG. You can install it in the snowbikes whose dropout size is 135mm / 175mm / 190mm.

  • SQ-G500S

  • ELEPEDOL

  • 8501310000

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

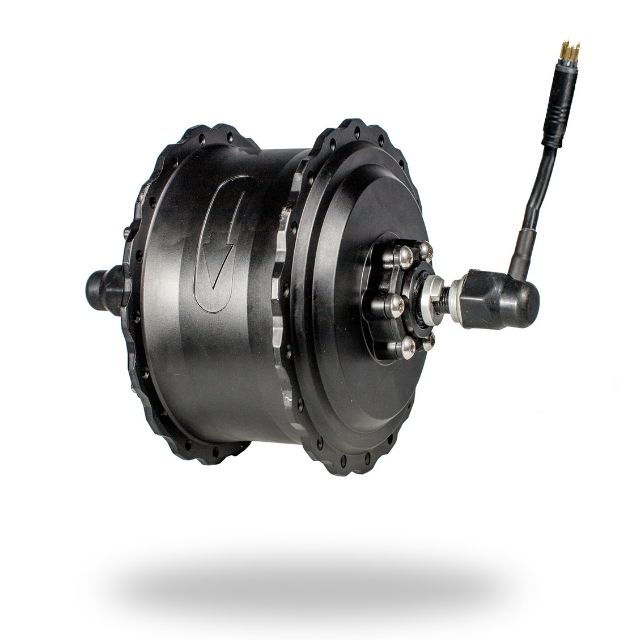

G500SF ebike motor 02

SQ-G500SF

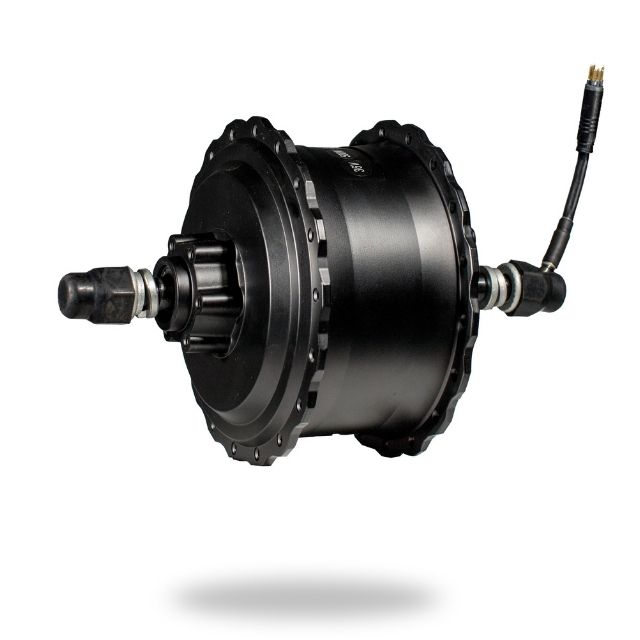

G500SR ebike motor 01

SQ-G500SR

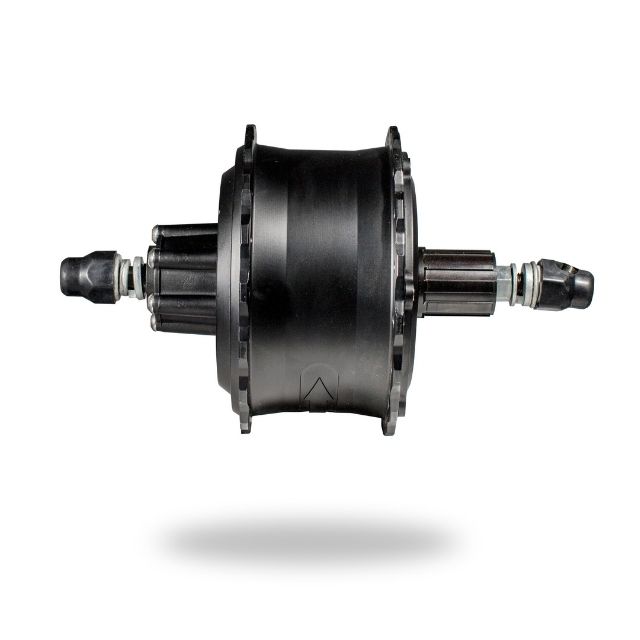

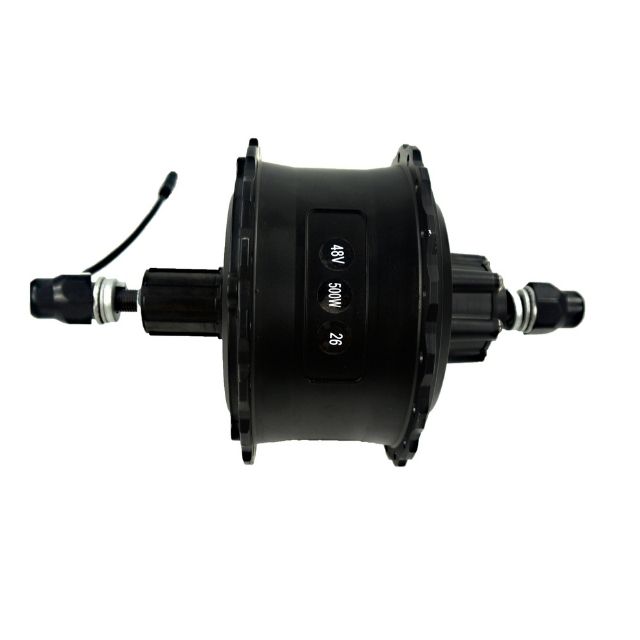

G500SC ebike motor 02

SQ-G500SC


SPECIFICATION

Position Front/ Rear
Construction
 Gear
Rated Voltage (V) 36 / 48
Rated Power  (W) 250 /350/500/750
Weight (KG) 4.2
Reduction Ratio 1:5
Max Torque (N.m) 78
Wheel Szie 20''/22''/24''/26''/28''/700c
Spoke specification  36Hole      12g/13g
Rated speed (KM/H) 25-45
Magnet Poles (2P)  10
Operating temperature (℃） -20-45
Surface color  Black /Silver
Dropout (mm) 135/ 175 /190
Drive and freewheel  Rear: 6s-8s     / Rear Cassette: 8s-10s
Brake type V / Disc brake
Efficiency (％） ≥80
Cable position  Shaft center right
Noise grade (db) ≤45
IP grade  54


DIMENSION

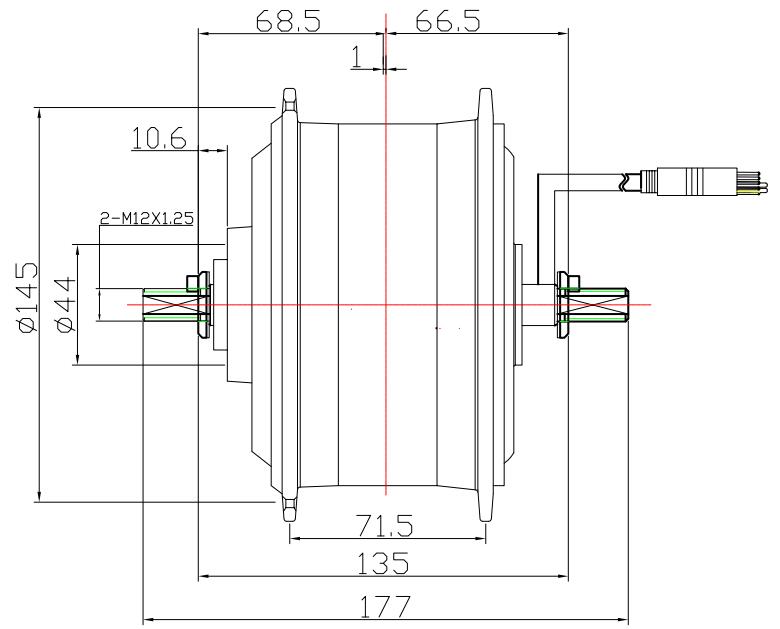

Front wheel:

G500SF drawing

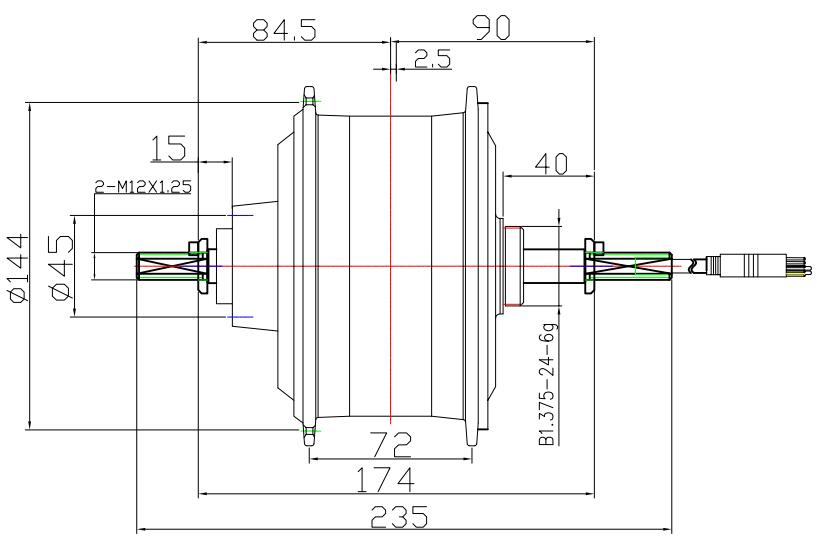

Rear wheel with freewheel:

G500SR drawing

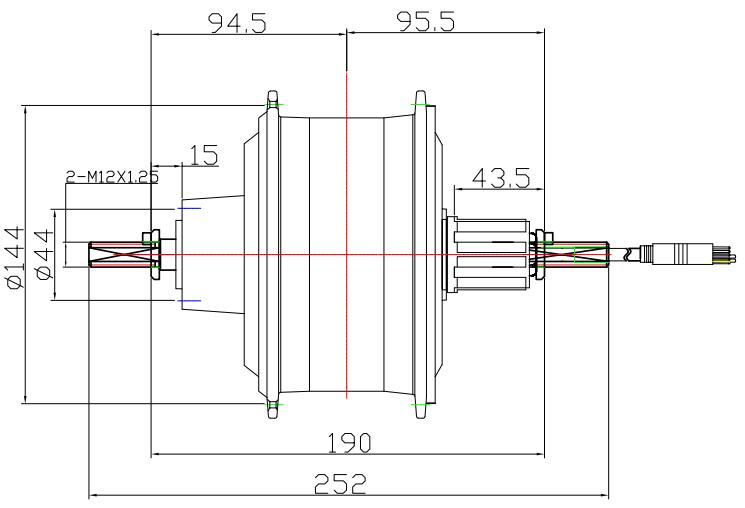

Rear wheel with cassette:

G500SC drawing
