Elepedol SQ-20M / 26M 250W 350W Magnesium Alloy Casting Rear Wheel Motor

Elepedol SQ-20M /SQ-26M model motors are 20inch /26inch magnesium casting wheel motors. Because of the special material, even they are casting wheel motor, their weight is still light. It's only 3.9kg. The power can be 250W 350W, max speed can be 32km/h.

  • SQ-20M / 26M

  • Elepedol

  • 8501310000

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

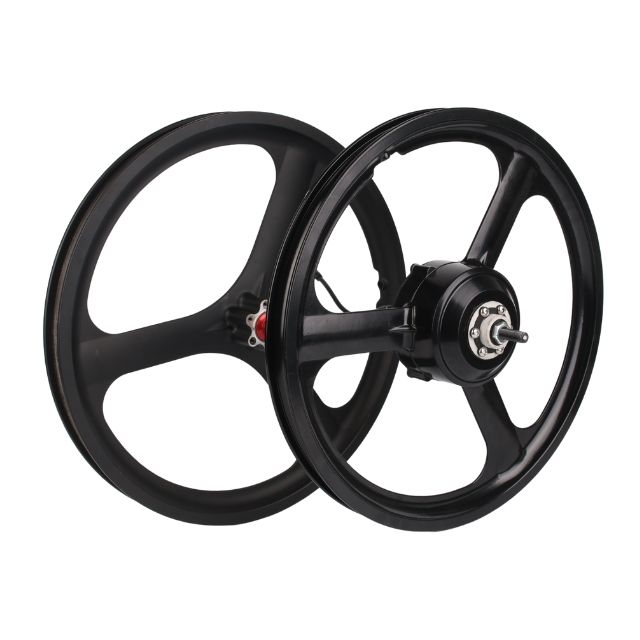

SQ20M ebike motor 01

SQ-20M

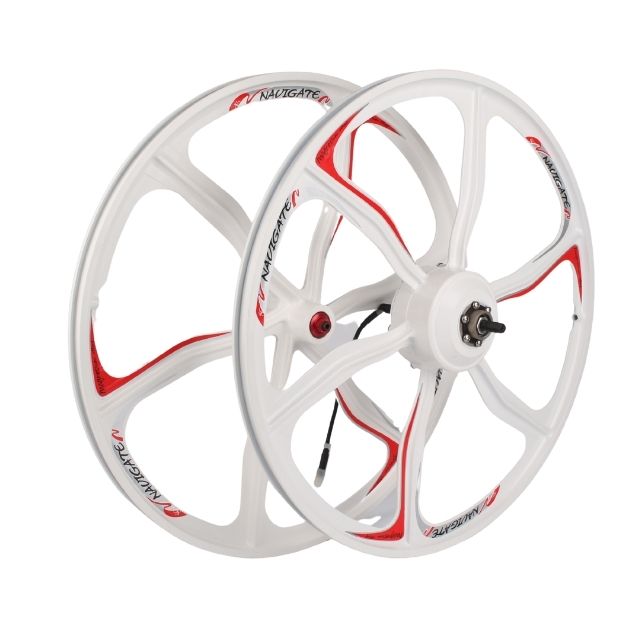

SQ26M ebike motor 01

SQ-26M



SPECIFICATION


Position Rear
Construction
 Gear
Rated Voltage (V) 36 / 48
Rated Power  (W) 250 /350
Weight (KG) 63.9
Reduction Ratio 1: 4.4
Max Torque (N.m) 42
Wheel Szie 20inch / 26inch
Spoke specification /
Rated speed (KM/H) 25-32
Magnet Poles (2P)  10
Operating temperature (℃） -20-45
Surface color  Black /Silver
Dropout (mm) 138
Drive and freewheel  Rear: 6s-8s
Brake type V / Disc brake
Efficiency (％） ≥80
Cable position  Shaft center right
Noise grade (db) ≤45
IP grade  54

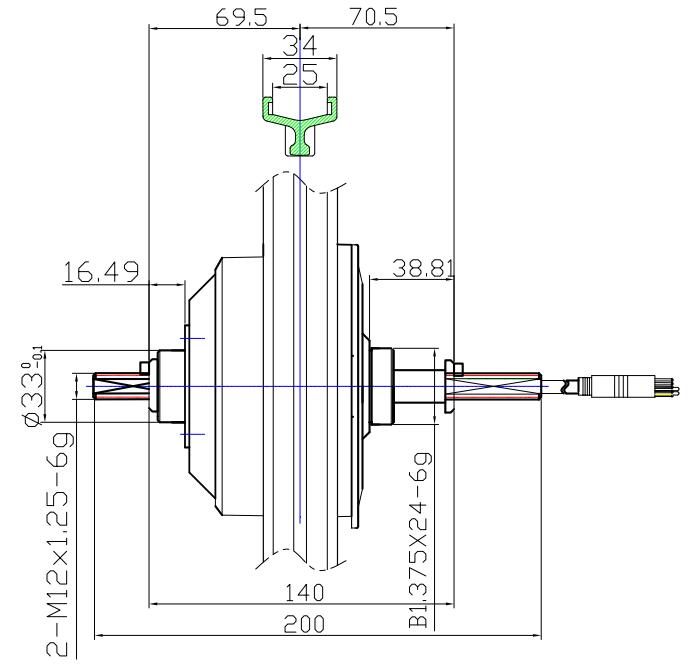

DIMENSION

20 26 drawing
