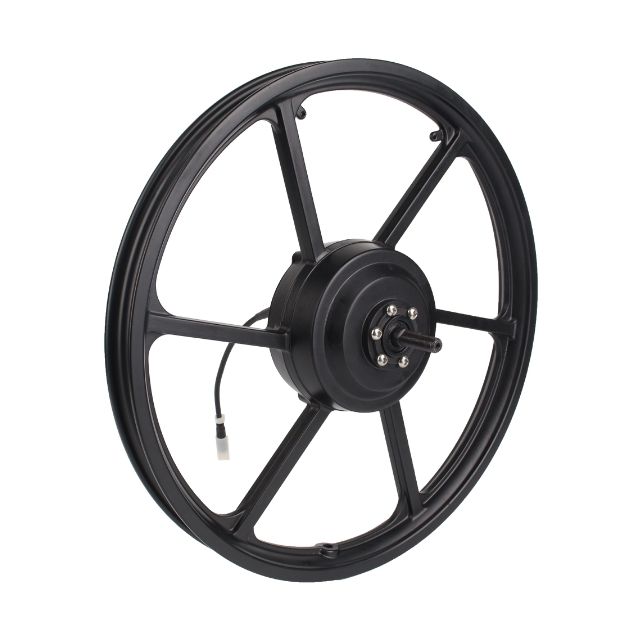

Elepedol SQ-201A 250W 350W 500W Standard Aluminum Casting Wheel Motor

Elepedol SQ-201A model motor is a standard 20inch aluminum casting wheel motor. We provide not only the rear wheel motor, but also the matched front wheel. The power ranges from 250W to 500W, max torque can reach to 48Nm. It can be installed with tyres of 20inch *(1.75-2.5). Max speed can reach to 43km/h. The dropout size of the motor is 138mm. Compared with the spoked wheel motors with similar power, its weight is heavier, 5.5kg. But, the price is cheaper.

  • SQ-201A

  • Elepedol

  • 8501310000

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

SPECIFICATION


Position Rear
Construction
 Gear
Rated Voltage (V) 36 / 48
Rated Power  (W) 250 /350/500
Weight (KG) 5.5
Reduction Ratio 1: 5
Max Torque (N.m) 48
Wheel Szie 20inch * (1.75-2.5)
Spoke specification /
Rated speed (KM/H) 25-43
Magnet Poles (2P)  10
Operating temperature (℃） -20-45
Surface color  Black /Silver
Dropout (mm) 138
Drive and freewheel  Rear: 6s-8s
Brake type V / Disc brake
Efficiency (％） ≥80
Cable position  Shaft center right
Noise grade (db) ≤45
IP grade  54

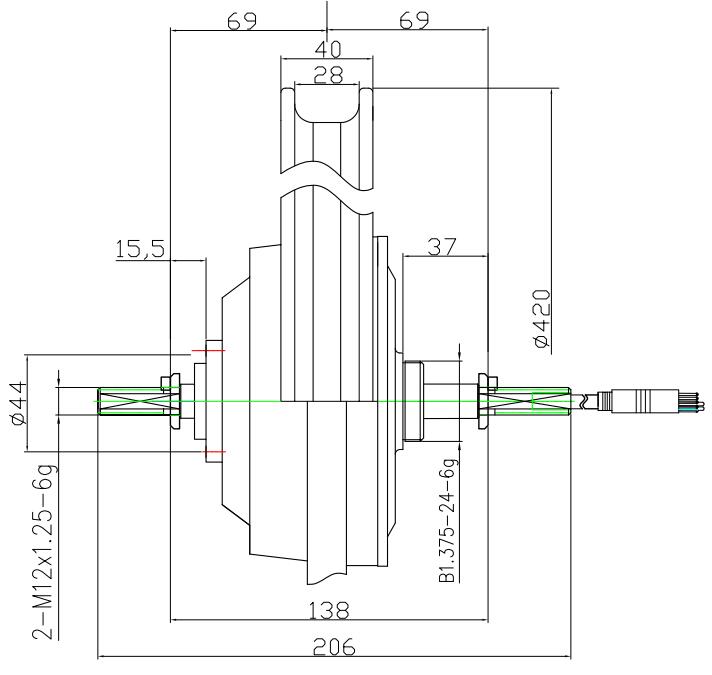

DIMENSION

201 drawing
