Elepedol SQ-202A / 203A 250W 350W 500W 750W Standard Fat Tire Aluminum Casting Wheel Ebike Motor

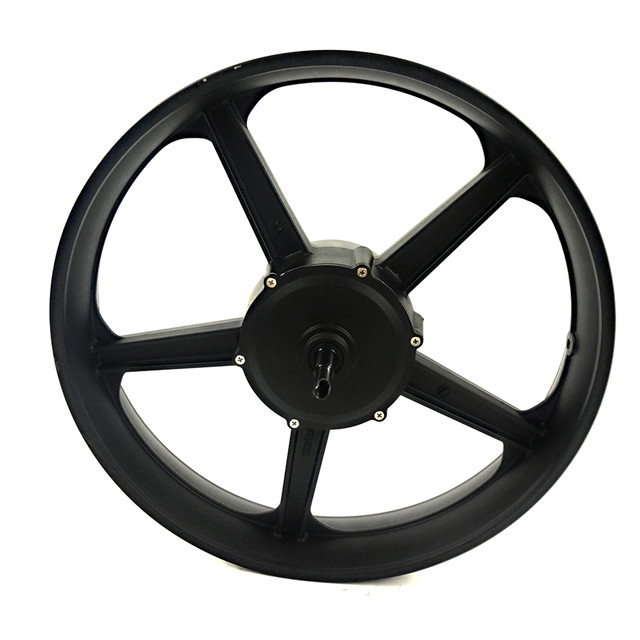

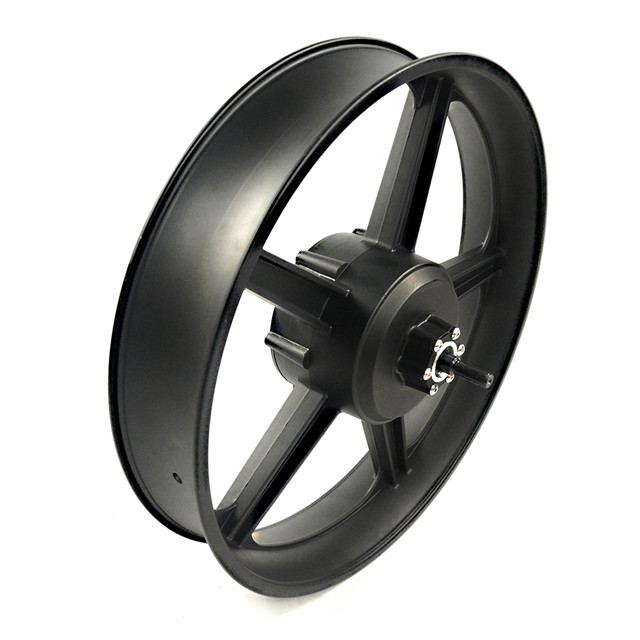

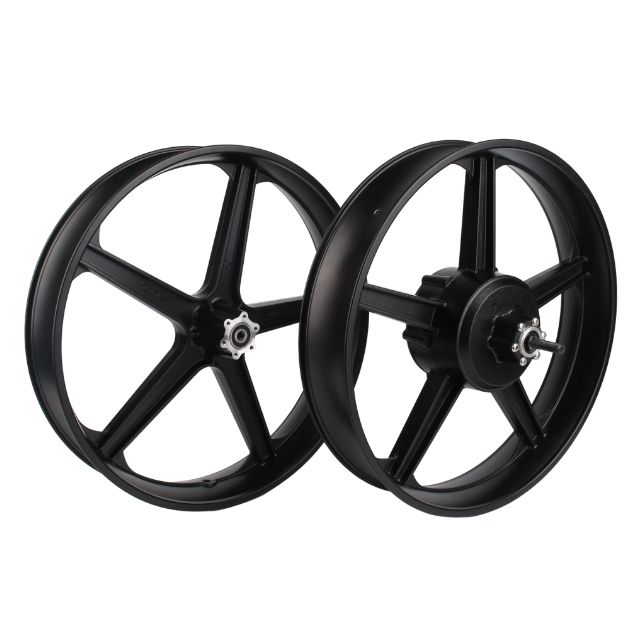

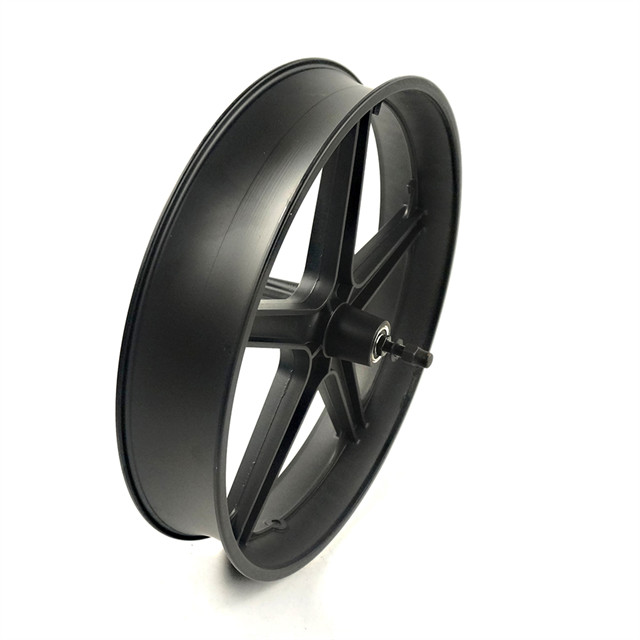

As classical snowbike aluminum casting wheel motors, SQ-202A model and SQ-203A model can meet most of customers' requirements. The power can range from 250W to 750W, according to your demands. The max speed can reach to 45km/h. The dropout size has 2 models, one is 175mm, another is 190mm. Compared with spoked wheel motors, aluminum casting wheel motors are cooler, but their weight is heavier than spoked wheel motors.
  • SQ-202A / 203A

  • Elepedol

  • 8501310000

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

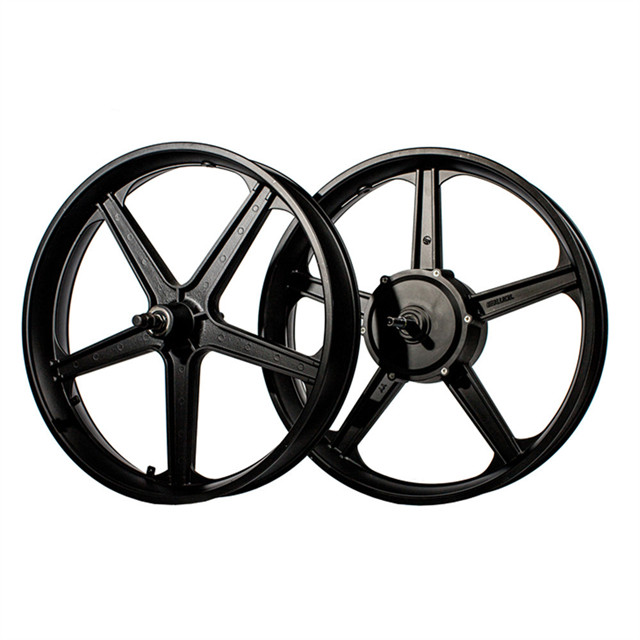

SQ202A ebike motor 002

SQ-202A

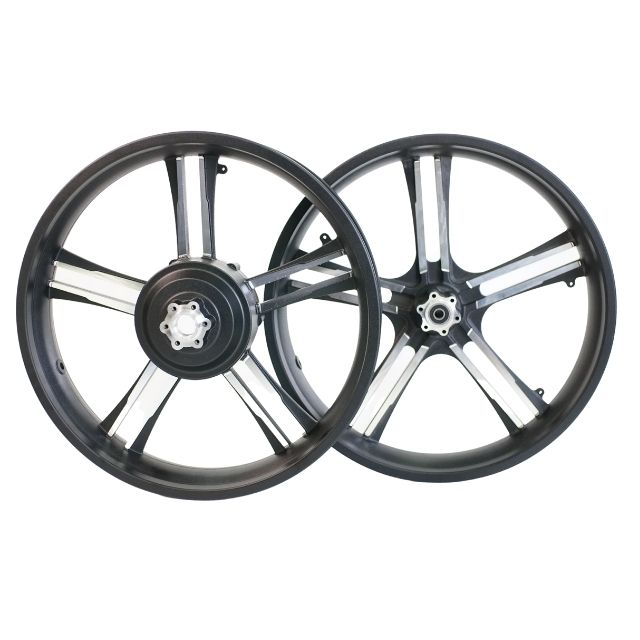

SQ203A ebike motor 001

SQ-203A


SPECIFICATION

Position Rear
Construction
Gear
Rated Voltage (V) 36 / 48
Rated Power  (W) 250 /350/500/750
Weight (KG) 7.8
Reduction Ratio 1:5
Max Torque (N.m) 78
Wheel Szie 20inch
Spoke specification /
Rated speed (KM/H) 25-32
Magnet Poles (2P)  10
Operating temperature (℃) 25-45
Surface color  Black /Silver
Dropout (mm) 175 / 190
Drive and freewheel  Rear: 6s-8s
Brake type V / Disc brake
Efficiency (%) ≥80
Cable position  Shaft center right
Noise grade (db) ≤45
IP grade  54

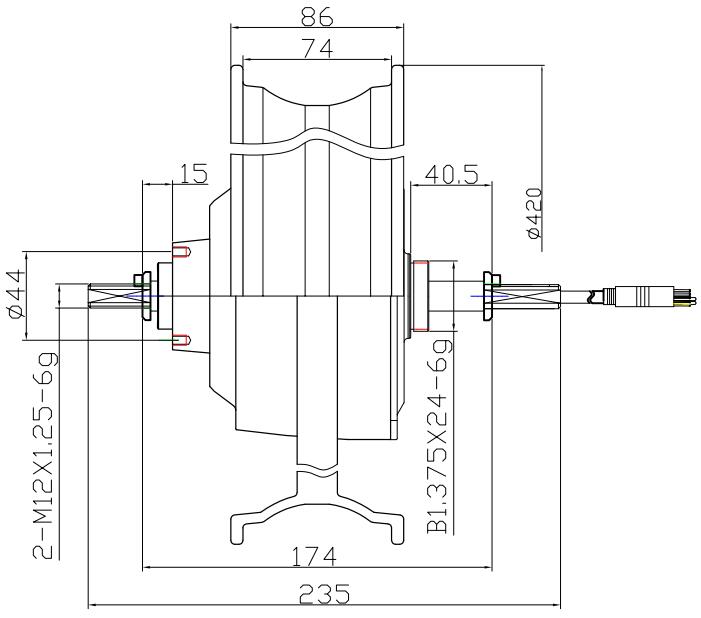

DIMENSION

202 203 drawing
