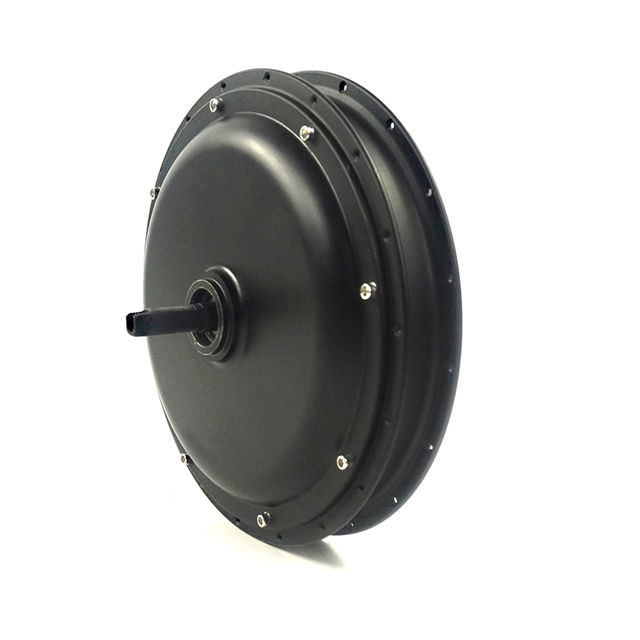

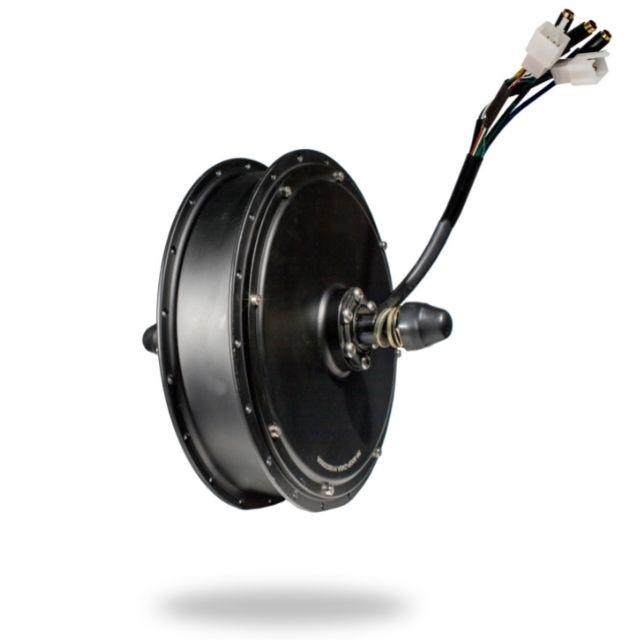

Elepedol SQ-D1000 750W 1000W Gearless Hub Motor for Electric Bike

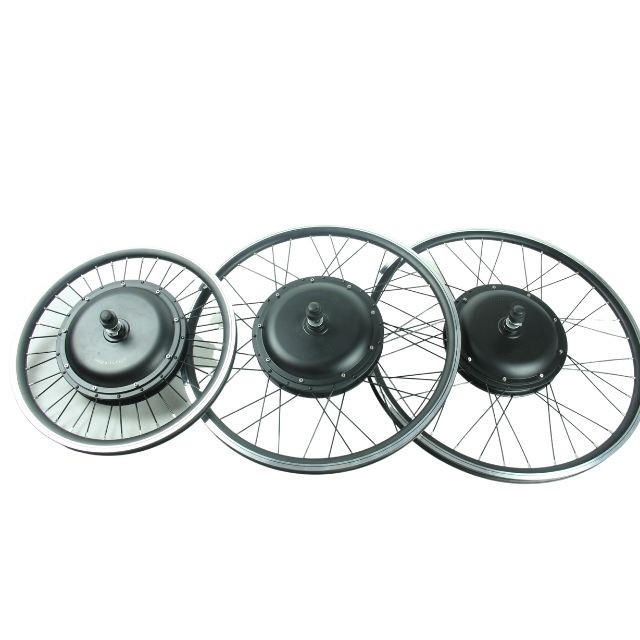

Elepedol SQ-D1000 series model motors are gearless electric bike hub motor. We provide 3 options for you. Front wheel, rear wheel with freewheel, rear wheel with cassette. The power can range from 250W to 1000W. Normally, customers choose 750W /1000W for this model. Max speed can reach to 50km/h, usually we recommend 42km/h for 26inch. Max torque can reach to 60Nm. Max loading weight is suggested to 150KG. For the motor cable, we support 8pin waterproof cable. If you pursue high speed with high power, SQ-D1000 model would be a good choice.

  • SQ-D1000

  • Elepedol

  • 8501310000

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

SPECIFICATION


Position Front / Rear
Construction
 Gearless
Rated Voltage (V) 36 / 48
Rated Power  (W) 250 /350/ 500/750/1000
Weight (KG) 6.5
Max loading weight (KG) 150
Max Torque (N.m) 50
Wheel Szie 20''/24''/26''/28''/700c
Spoke specification 36Holes       12g/13g
Rated speed (KM/H) 42-50
Magnet Poles (2P)  23
Operating temperature (℃） -20-45
Surface color  Black /Silver
Dropout (mm) 100 / 138 / 146
Drive and freewheel  Rear: 6s-7s / Rear cassette:  8s-9s
Brake type V / Disc brake
Efficiency (％） ≥80
Cable position  Front: Shaft center right    Rear: Shaft side left
Noise grade (db) ≤45
IP grade  54



DIMENSIONS


D1000F (Front wheel ebike motor):


D500F drawing 001


D1000R(Rear wheel with freewheel ebike motor):


D500R drawing 001


D1000C(Rear wheel with cassette ebike motor):


D500C drawing
