Elepedol 8 Magnet Standard Pedal Assist Sensor for Electric Bike

Elepedol 8 magnets PAS is the best selling model in the ebike conversion market. It can be installed in different kinds of electric bikes, and the price is very good. It's sensitive, reliable, and the waterproof performance is also very nice.

  • 8P

  • Elepedol

  • 24V / 36V / 48 V/ 72V

  • 250W / 350W / 500W / 1000W / 1500W / 3000W

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Parameter


Product name  Elepedol KT 8 magnets speed pedal assist sensor
Installation   Left
Voltage (V) 36/ 48/72
Color Black
Weight  (g) 50
Magnet  (pc) 8
Cable length (mm) 800mm including the connector
Plug 3 pin connector

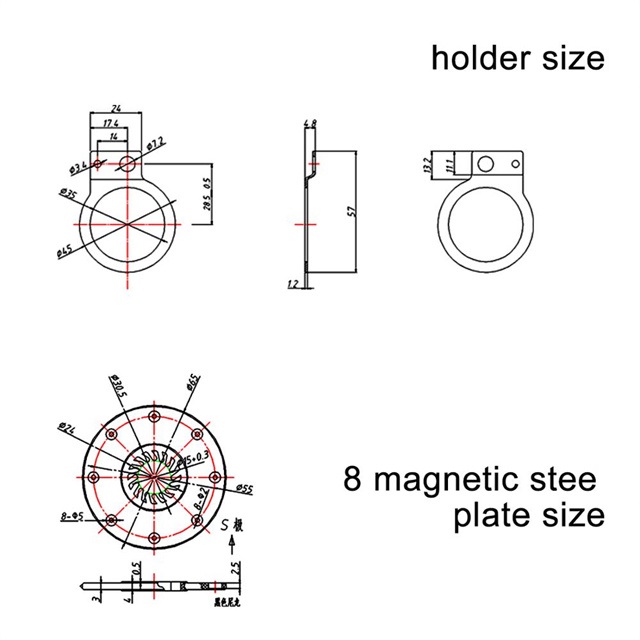

8P pedal assist sensor 000


ebike 8P pedal assist sensor 001



ebike V12 pedal assist sensor 001




There are 2 types connectors for your option. SM connector, Julet waterproof connector. Both of them are 3 pin signal.

ebike 8P pedal assist sensor 004




It's easy to install the 8P pedal assist sensor. Right picture is to show you the ebike installed with 8P dual hall pedal assist sensor.







4 steps to show you how to install the 8P in the electric bike.

8P PAS 001

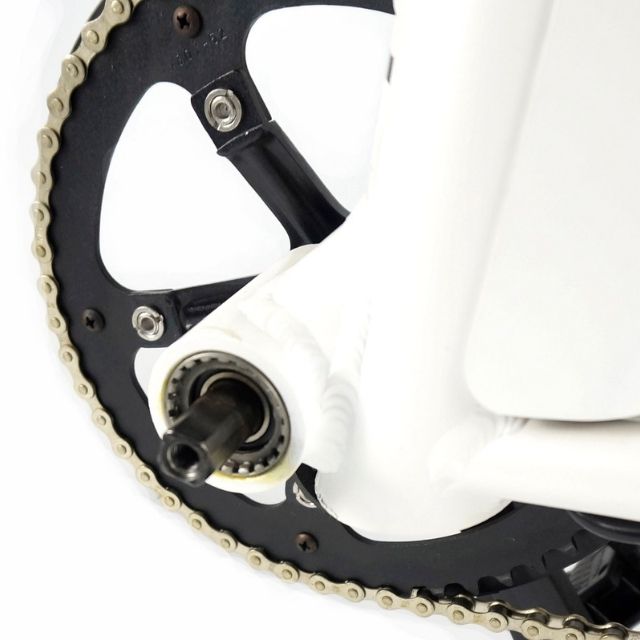

Step 1

8P PAS 002

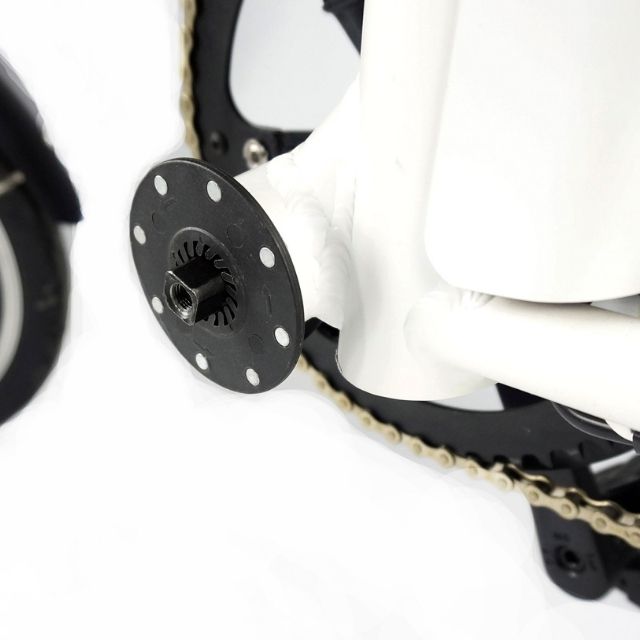

Step 2

8P PAS 003

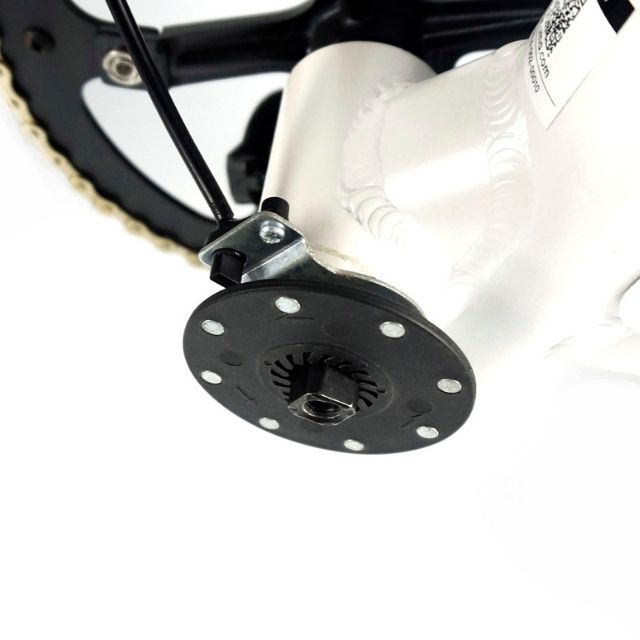

Step 3

8P PAS 004

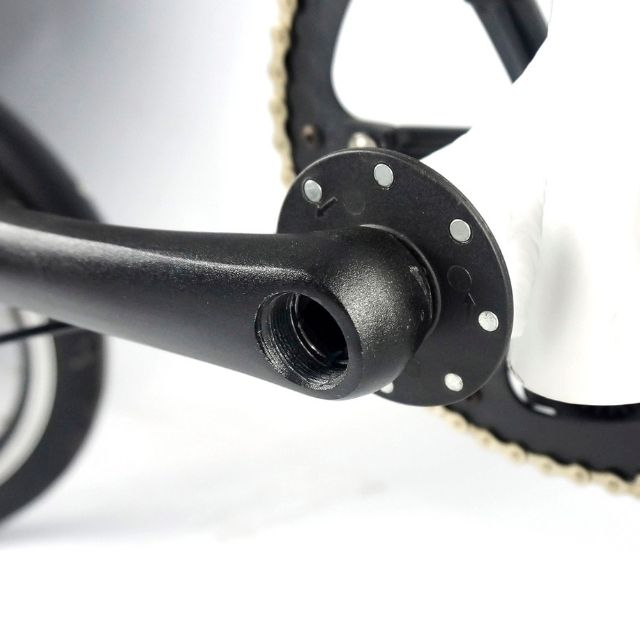

Step 4

Step 1: find the left side bottom bracket of the bicycle

Step 2: Remove the crank of the bike

Step 3: install the pedal assist sensor

Step 4: intsall the crank in the electric bike
