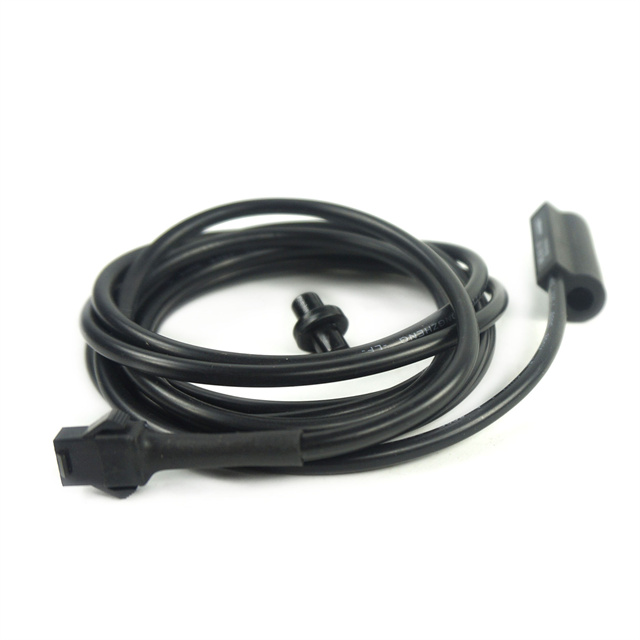

MSBK-1F / 1R
Elepedol
24V / 36V / 48 V/ 72V
Brake sensor
| Quantity: | |
|---|---|
Parameter
| Model | MSBK-1F / 1R cut off power electric brake sensor |
| Power | 5V / 2mA |
| Signal | Active: 0V Inactive: 5V |
| Housing Material | Intensive ABS |
| Size (mm) | 36 *16 * 12 |
| Weight | 30g |
| Connector | 3pin SM connector (Red: VCC, Black: GND,White: Signal) Julet waterproof 3pin connector |
| Indicator | Active: Red light InActive: Light off |
| Cable length | SM connector : 1800mm including the connector |
| Julet waterproof 3pin connector: 250mm including the connector | |
| Color | Black |
| Installation position | Left / Right |
| Waterproof grade | IP76 |

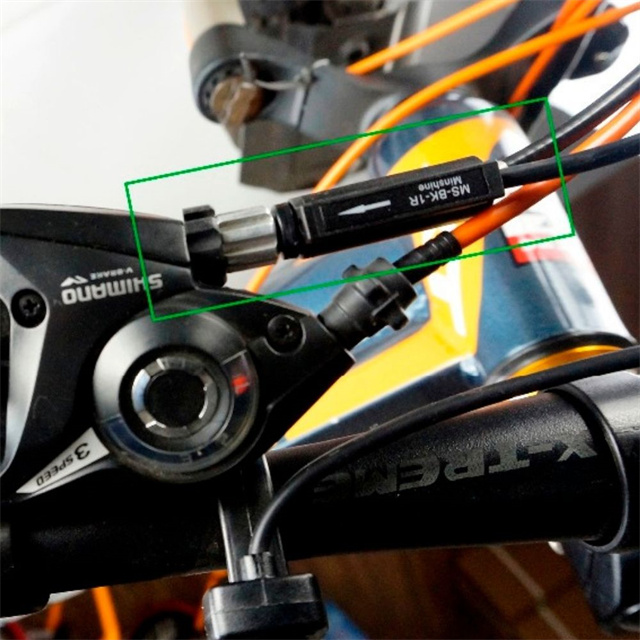

MSBK series electric bike brake sensor
after being installed in the ebike

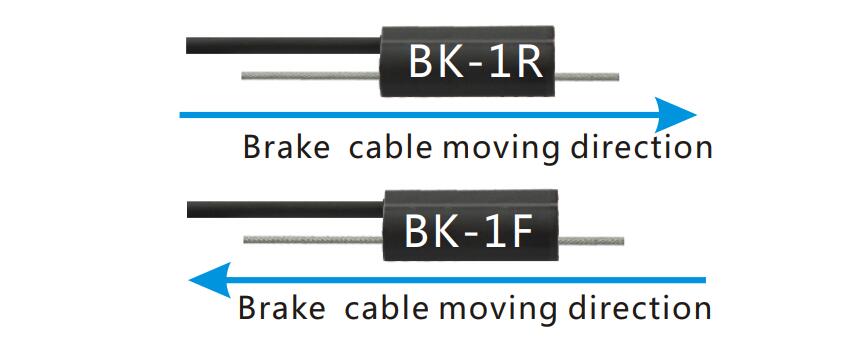

How to distinguish 1F and 1R model electric brake sensor?
It depends on the position which is to be fixed and the direction of the brake cable moving.

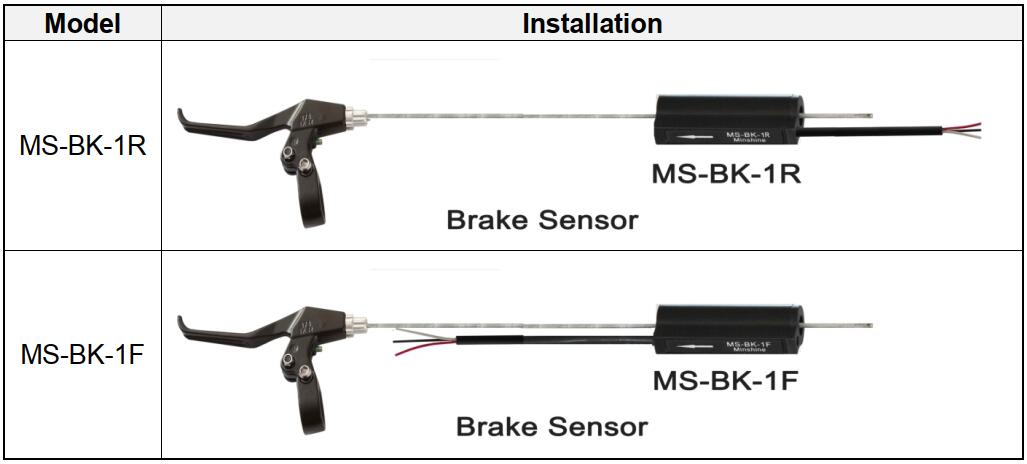

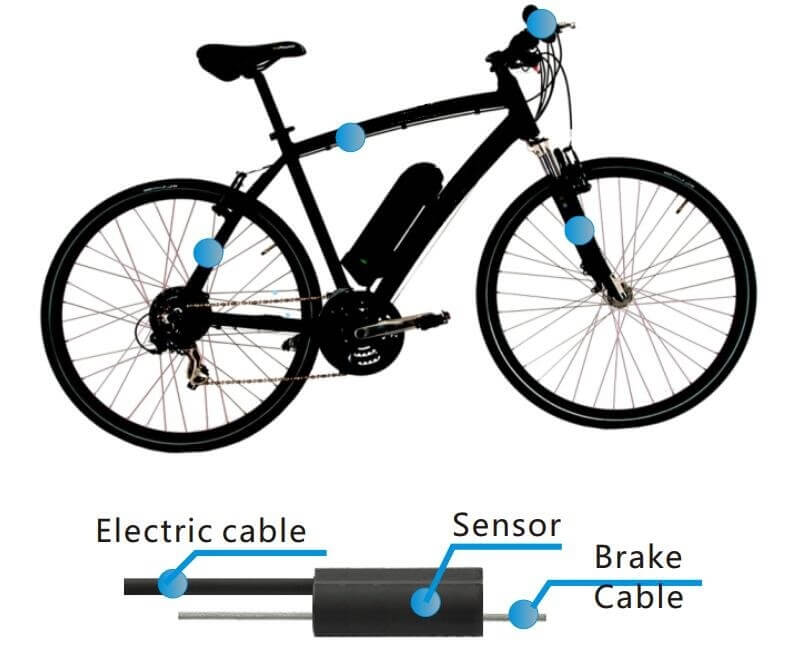

A picture let you know how to install the MSBK-1F / 1R ebike brake sensor:
Elepedol MSBK 1F/1R ebike brake sensor is an in-line brake sensor, brake cable go through the sensor, the electric bike brake signal come out from sensor immediately when the brake cable moving , system can cut-off the power after got this signal .
