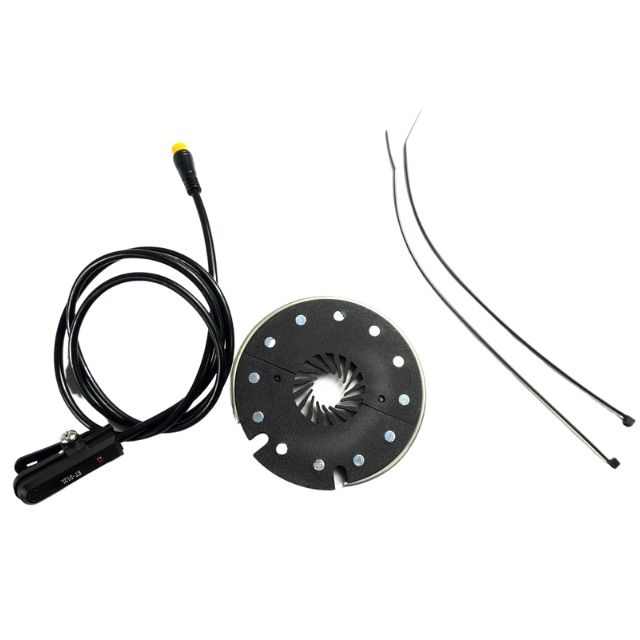

Elepedol Divided 12 Magnets Pedal Assist Sensor for Ebike

Elepedol D12 model speed pedal assist sensor has 12 signal output, fast boost response speed, good accuracy, strong water resistance, and high reliability. It's convenient and quick to finish the installation and disassembly. The pedal assist sensor is divided into two models: left-side installation and right-side installation, which can be installed in different positions and adapted to various bicycle models.

  • D12

  • Elepedol

  • 24V / 36V / 48 V/ 72V

  • 250W / 350W / 500W / 1000W / 1500W / 3000W

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Parameter


Product name  Elepedol KT 12 magnets speed pedal assist sensor
Installation   Left / Right
Voltage (V) 36/ 48/72
Color Black
Weight  (g) 50
Magnet  (pc) 8
Cable length (mm) 800mm including the connector
Plug 3 pin connector

D12 pas divided 002

Dimension of the pedal assist sensor magnet plate:

D12-PAS-size

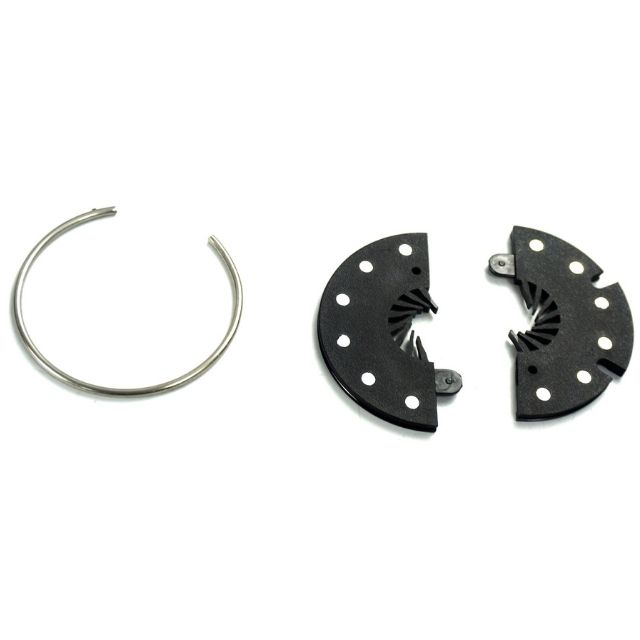

D12 ebike PAS 0001

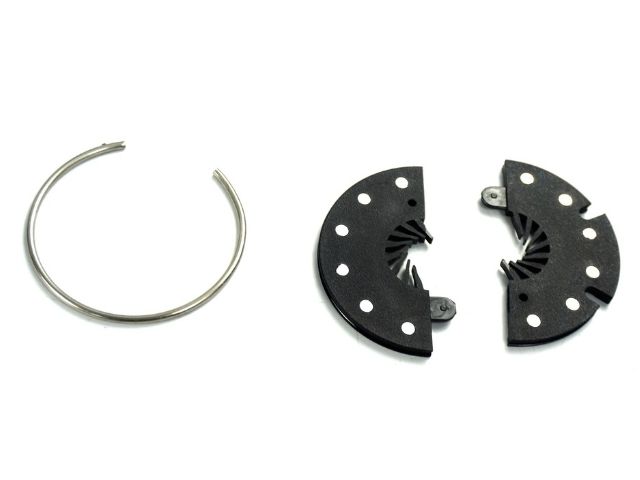

The pedal assist sensor magnet plate can be divided. It means you don't need to remove the crank when you want to install it in the electric bicycle.






ebike V12 pedal assist sensor 001

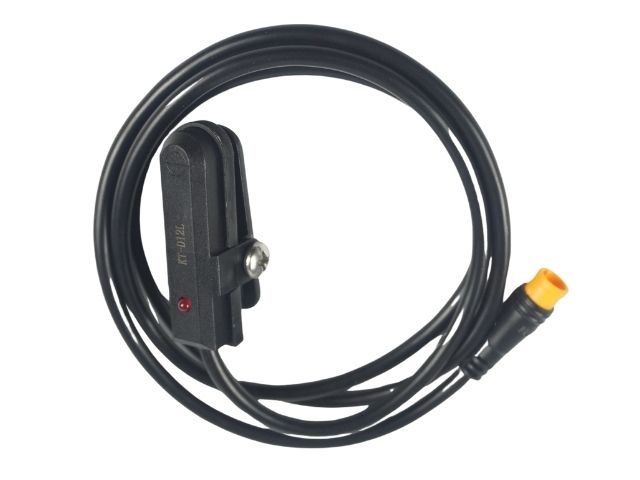

The pedal assist sensor's connector can be normal SM connector, or Julet waterproof connector. No matter which type of connector, they are 3pin signal.






2 Steps to teach you how to install the D12 pedal assist sensor in the ebike:


12P ebike PAS 003

Tie the pedal assist sensor with plastics cable

12P ebike PAS 004

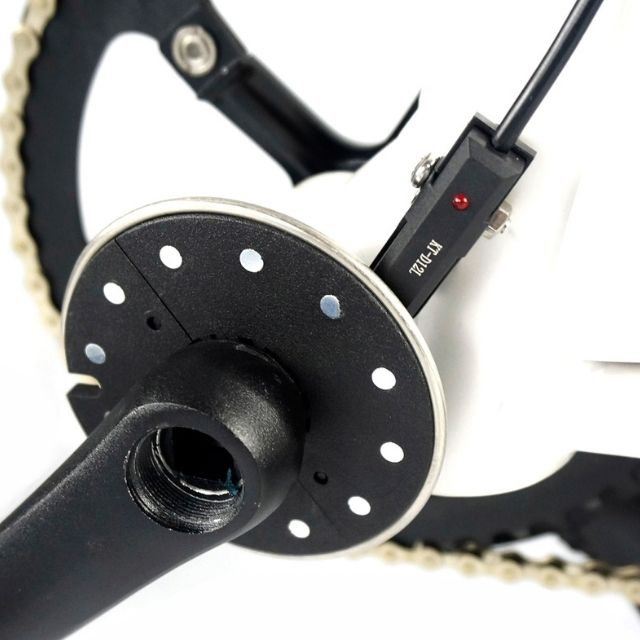

install the magnet plate in the bottom bracket parts of the electric bike
