Elepedol 36V 250W Inner Rotor Geared Ebike Conversion Kit

Elepedol 36V 250W inner rator geared hub motor ebike conversion kit becomes more and more popular in European market. 250W ebike motor, max speed is limited to 25KM/H to make the riding legal in Europe. Light weight, means less consume, almost silent when riding the converted electric bike. Mature control system means lower after-sale rate. 14A ebike sine wave or square wave controller with different kinds of displays for your optional. Also, there are many options of the lithium batteries for your optional. Normally, it is used for city bike, but some consumers also convert MTB bike with this model electric bike kit.

  • SQ-GIR01

  • Elepedol

  • 8501310000

  • 24V / 36V / 48 V

  • 250W / 350W

  • ebike hub motor kit

  • Different options for options

  • 18650 cell / 2170 cell

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

CONFIGURATION:

Motor

36V 250W Inner rator geared hub motor, speed is limited to 25KM/H

   (read more)
Controller  36V 14A square/ sine wave 6 mosfet intelligent controller
Display LED display / LCD display for your options
Throttle  Thumb / Twist throttle
Brake Electric brake levers /Ebrake sensor
PAS 8P/12P magnets Imitation moment PAS for your optional
LED light  Front LED light or Rear LED light for your optional
Switch  Switch to control the Rear LED light, if you need turn light function
Battery

36V 11Ah (read more)
Charger  36V 2A smart charger  (power off when it is full chargerd)
Total weight for the whole ebike conversion kit
 5KG
Max range per charge
 50-70KM


INSTALLATION TIPS:


Fork size

Front: 100mm

Rear freewheel: 135mm

Rear cassette: 138mm

 Brake type
 V / Disc brake
Wheel size
 16''/18''/20''/22''/24''/26''/28''/700c Fit for which bike  City / Mountain Bike
Spoke size  12g /13g  Wheel specification
 Aluminium double wall rim 1.5-1.95
Hole in the wheel  36H Torque arm Optional


Elepedol 36V 250W Silent ebike conversion kit for City bike becomes more and more popular in electric bike kit market. Here's what cyclists say about it: It's really a good electric bicycle system that's perfect for city commutes and road cycling tours on holidays. Normally, it includes 250W inner rator geared ebike hub motor, 14A e-bike controller, throttle, ebrake levers, display, PAS, lithium battery. With these electric bike parts, you can convert the bicycle into electric bicycle easily. You can choose to make the whole ebike system with normal connectors, or upgrade to waterproof connectors. And, if you want to make the electric bike more simple, you can customize the controller built inside of the lithium battery.

Here, let's introduce these electric bike parts to you separately.



AKM 100SX 250W ebike motor 05

SQ-IR01 ebike geared hub motor


1. First, let's talk about the motor. We use our hot sale model SQIR01 250W/350W geared ebike hub motor.

There are 3 models for your options, front wheel, rear wheel, rear wheel with cassette. We can provide normal freewheel and cassette freewheel. You can convert the bikes with wheels from 12inch to 29inch. We also support wheeled ebike motors.

You can customize your LOGO in the motor, just please share the document of the LOGO with us after you confirm the order.





AW 6 mosfet ebike controller 006

Elepedol 36V 14A 6 mosfet controller


Secondly, let's talk about the controller. As a customized functional intelligent controller, it can be sinewave or square. (What's the difference between sinewave controller and square controller?)And,you can choose to use standard cables with SM connectors or use Julet waterproof cables.

We support customized functions in the controller with customized program, such as headlight with horn function, rear light with brake function and turn light function, reverse functions, alarm functions etc.

The connectors can be normal SM connector or Julet waterproof connector.

If you pursue more simple, you can ask us to make the controller built inside of the lithium battery.

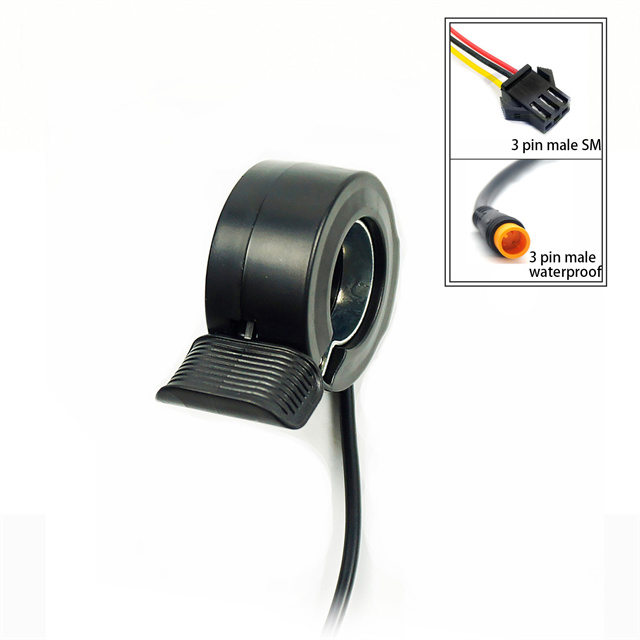

130X throttle001

Elepedol thumb throttle


High quality thumb throttle, 2 kinds of connectors for your options.

If you prefer twist throttle, we can aslo provide different models for your options.

And,we also have some fashion design throttle with display or battery indicator. Just please contact us to get more options.



8P PAS 004


PAS


With the pedal assist, it can extend the mileage of a single ride. Here, we use the most basic model,1:1 8 magnets PAS.

We also have other models PAS, 10 magnets PAS, 12 magnets divided PAS, 12 magnets integrated PAS etc.

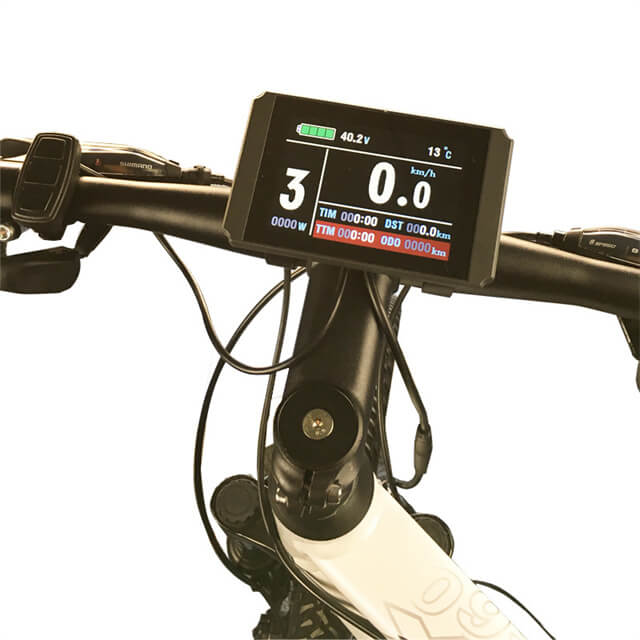

LCD8S electric bike display 0000

Display

Various ebike displays for your options. No matter you need LED display or LCD display; colorful screen or standard screen, or TFT; big size screen or small size screen, horizontal LCD display or vertical LCD display.




115PDD electric bike brakes 008



eBrake levers


Normally, when the max speed for the ebike is less than 25km/h, you can decide add or remove the electric brakes. Here, we put the electric brake levers in the system.

If you don't want to remove the original mechanic brake levers from the bicycle, you can consider to choose electric brake sensors.

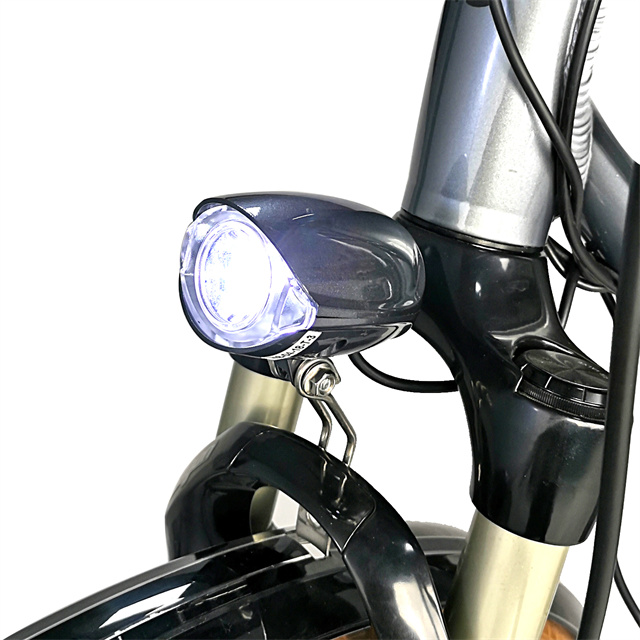

QD151 headlight 006

Headlight


To make sure that customers can ride the ebike even in a dark place, we put a LED light in the system.

Here, we introduce the most basic headlight. QD151 model,

the maximum spot illumination at a distance of ten meters reaches 20 Lux.

There 2 models for your options. One is without horn function, another is with horn function.

You can also contact us to know more options of the headlights. Various stytles for your optional.




ebike battery box 01 Lithium battery

Here, we introduce the best selling DP-5C model lithium battery.

As the best selling inclined tube battery,DP-5C model can be filled with 52 cells, you can customize the capacity with different battery cells. For 250W hub motor kit, customers have a lot of choices, just please choose the right one in their budget.

There are many different kinds of lithium batteries for your options. It includes downtube type, rear rack type, seatube type. Each type have 10-20 models lithium battery case for your optional.

And, we provide different kinds of cells, such as Chinese cell, Sumsung cell, LG cell, Panasonic cell etc.


ebike battery charger

Elepedol charger for lithium battery

When the capacity of the battery is less than 11Ah, 2A charger is enough. But, when the capacity is more than 11Ah, you can consider 3A charger.

We support different plugs for your optional too, such as European plug, American plug, Australian plug, British plug, South African plug, Chinese plug,etc.





The road driving requirement in most countries is 250w, so this electric bicycle conversion kit is undoubtedly the best choice, which allows you to choose different riding modes under different situations. If you have a shop or even a factory that needs to purchase electric bicycle conversion kits,we have many preferential activities for batch purchase. No matter whether the quantity is100 sets, 1000 sets or even 10,000 sets, we can always meet your requirements.
