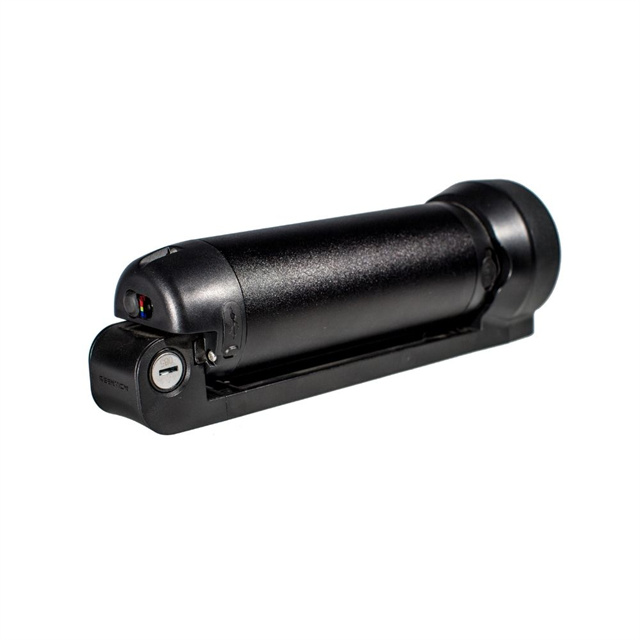

Elepedol DC-2C 36V Electric Pocket Bike Battery

Elepedol DC-2C model is a kind of lithium battery with small volume for electric bicycle. Maximum cells is 21 pcs 18650 cells. Max capacity is 36V 7Ah with LG3500 cell. So, usually, it is used for ebike with pedal assitant. Under this condition, it still can support 35-50km riding distance per charge. It is enough for normal riding no matter you ride the ebike to go to work or have a short journey.

  • DC-2C

  • ELEPEDOL

  • 24V / 36V

  • Downtube lithium battery

  • 21 PCS

  • 18650 cell

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

SPECIFICATION


Battery type  eBike lithium-ion battery
Rated Voltage (V)
 24 / 36
Full battery voltage (V)  29 / 42
Maximum cells (PCS)  21
Battery cell type  18650 cell
Max cell configuration 7S/ 3P    or    10S/ 2P
Max capacity  24V 10.5Ah        36V 7Ah
BMS
 20A -30A
Battery charge cycles 500 cycles to 70% capacity
Charging port
 DC2.1 ,different standard plug for different country
Discharging port 2 Pin
LED indicator single LED with three colors
USB port  with
Power switch  without
Controller box with      (can fit 6 mosfets controller)
L * W * H (mm)  326 * 214 * 86
Package size  (mm) 430*210*160
HS code 8507600090


DIMENSION

DC-2C drawing 002

_battery cell 1000 002



18650 cell

You can choose Chinese cell, Samsung cell, LG cell, Panasonic cell according to your demand. Currently, some best selling models like Chinese cell 2200, Chinese cell 2500, Samsung cell 26MJ, Samsung cell 32E, LG3200, LG3500, we have enough in stock.

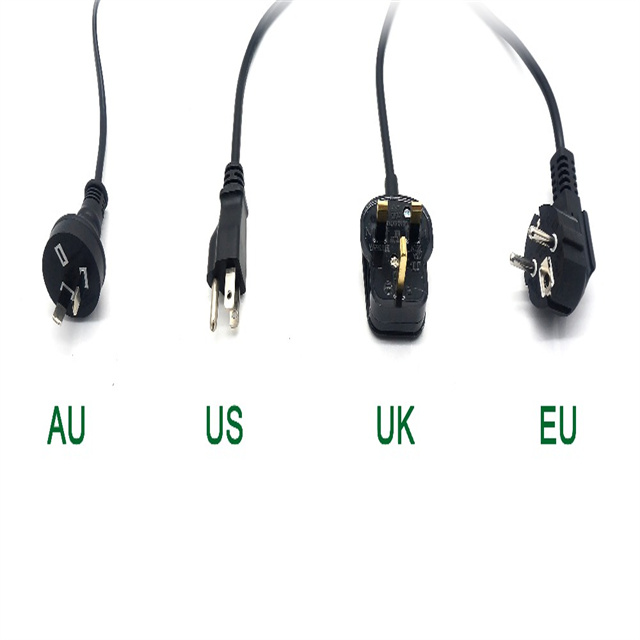

charger connectors

Charger plug

We support different kind of plugs according to customers' local standard.  Normally, AU, US, UK, EU, the 4 models can meet most customers' demands.





DC-2C

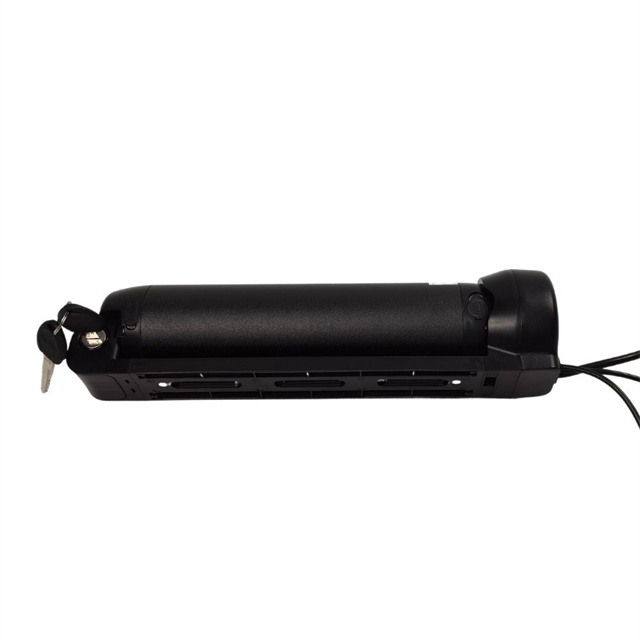

Elepedol DC-2C model is a kind of lithium battery with small volume for electric bicycle. Maximum cells is 21 pcs 18650 cells. Max capacity is 36V 7Ah with LG3500 cell. So, usually, it is used for ebike with pedal assitant. Under this condition, it still can support 35-50km riding distance per charge. It is enough for normal riding no matter you ride the ebike to go to work or have a short journey. To make the whole eBike more simple, the controller can be built inside of the bottom parts of the battery case. It fits 6 mosfet ebike motor controller , at most 17A controller.
