Elepedol DP-5C 36V 48V Lithium Battery for Electric Bike

As the best selling model battery in the ebike conversion market, DP-5C battery is really a kind of high cost-effective product. It can be intsalled in most of mountain bike, city bike, fat tire super 73 model bike. Max capacity can reach to 36V 17.5Ah / 48V 14Ah.

  • DP-5C

  • Elepedol

  • 36V / 48V

  • Downtube lithium battery

  • 52 PCS

  • 18650 cell

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

SPECIFICATION


Battery type  eBike lithium-ion battery
Rated Voltage (V)
 24 / 36 / 48
Full battery voltage (V)  29 / 42 / 54.6
Maximum cells (PCS)  52
Battery cell type  18650 cell
Max cell configuration 7S/ 7P    or    13S/ 4P   or   10S/ 5P
Max capacity  24V 24.5Ah        36V 17.5Ah        48V 14Ah
BMS
 20A -30A
Battery charge cycles 500 cycles to 70% capacity
Charging port
 DC2.1 ,different standard plug for different country
Discharging port 4 Pin
LED indicator 4 LED lights
USB port  without
Power switch  with
Controller box with      (can fit 9 mosfet controller)
L * W * H (mm)  368 * 90 * 96
Package size  (mm) 430*210*160
HS code 8507600090

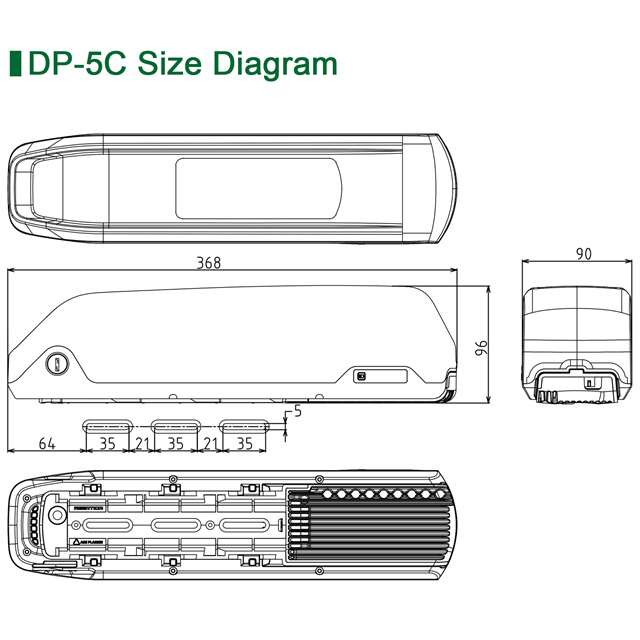

DIMENSION

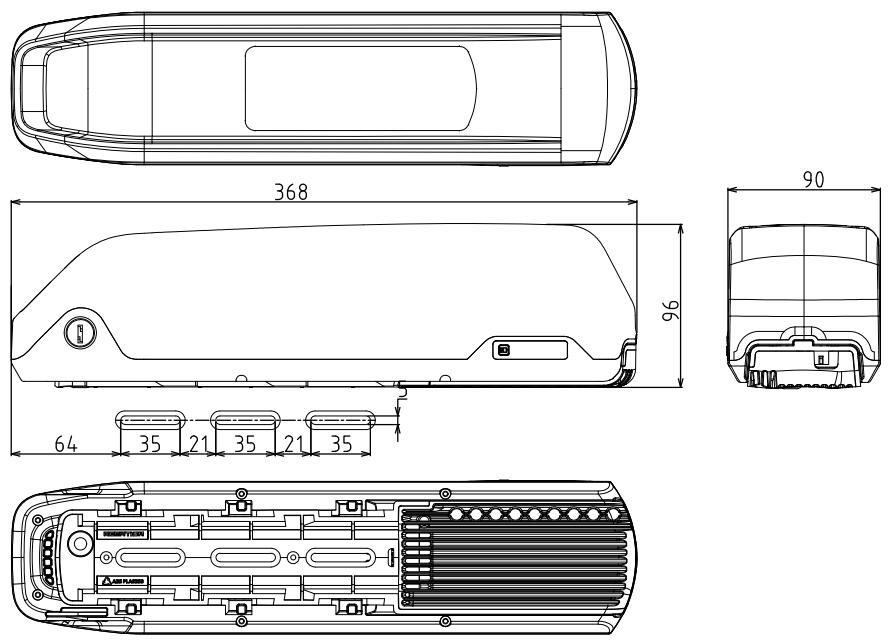

DP-5C drawing 01

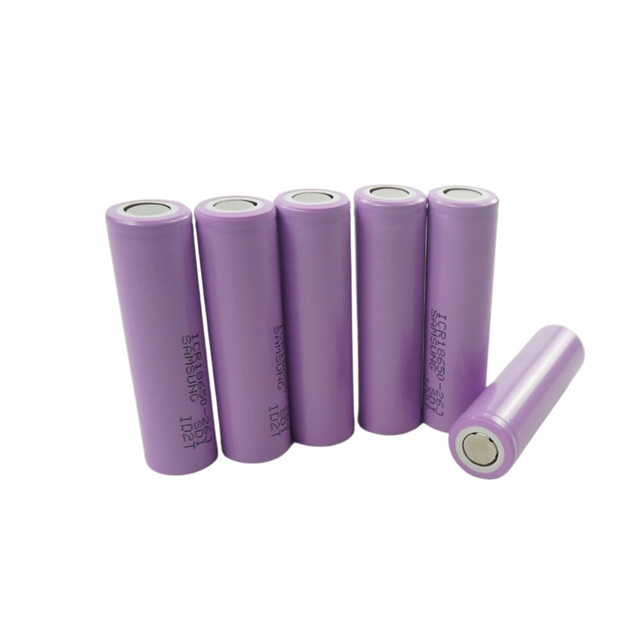

_battery cell 1000 002



18650 cell

You can choose Chinese cell, Samsung cell, LG cell, Panasonic cell according to your demand. Currently, some best selling models like Chinese cell 2200, Chinese cell 2500, Samsung cell 26MJ, Samsung cell 32E, LG3200, LG3500, we have enough in stock.





charger connectors

Charger plug

We support different kind of plugs according to customers' local standard.  Normally, AU, US, UK, EU, the 4 models can meet most customers' demands.


ebike 001

Mountain eBike

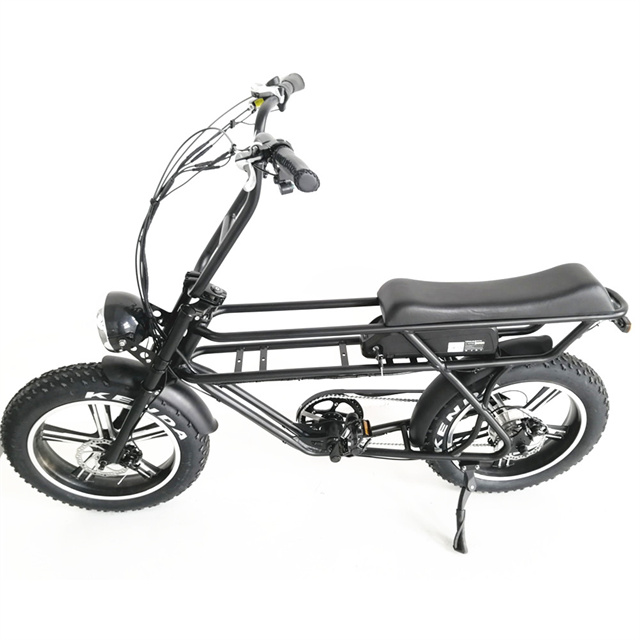

fat tire electric bike 001

Super 73 model fat tire eBike


As the best selling model battery in the ebike conversion market, DP-5C battery is really a kind of high cost-effective product. It can be intsalled in most of mountain bike, city bike, fat tire super 73 model bike,even in some three wheel electric bicycle, four wheel electric bike. Max capacity can reach to 36V 17.5Ah / 48V 14Ah. The controller can be built inside of the bottom parts of the battery case. It supports at most 9 mosfet, 25A controller.
