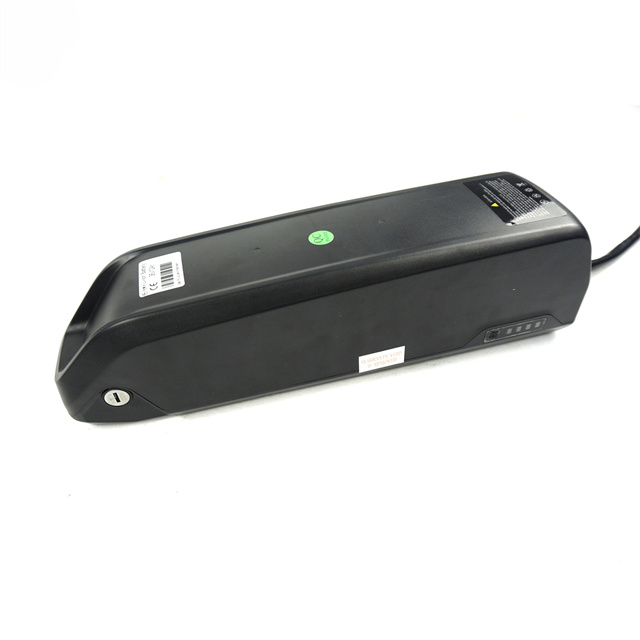

Elepedol DP-6C 36V 48V Downtube Lithium Ion Battery for Electric Bike

As the best selling model battery in the ebike conversion market, DP-6C battery is really a kind of high cost-effective product. It can be intsalled in most of mountain bike, city bike, fat tire super 73 model bike. Max capacity can reach to 36V 21Ah / 48V 17.5Ah.

  • DP-6C

  • Elepedol

  • 36V / 48V

  • Downtube lithium battery

  • 65 PCS

  • 18650 cell

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

SPECIFICATION


Battery type  eBike lithium-ion battery
Rated Voltage (V)
 36 / 48
Full battery voltage (V)  42 / 54.6
Maximum cells (PCS)  65
Battery cell type  18650 cell
Max cell configuration 13S/ 5P   or   10S/ 6P
Max capacity  36V 21Ah        48V 17.5Ah
BMS
 20A -30A
Battery charge cycles 500 cycles to 70% capacity
Charging port
 DC2.1 ,different standard plug for different country
Discharging port 4 Pin

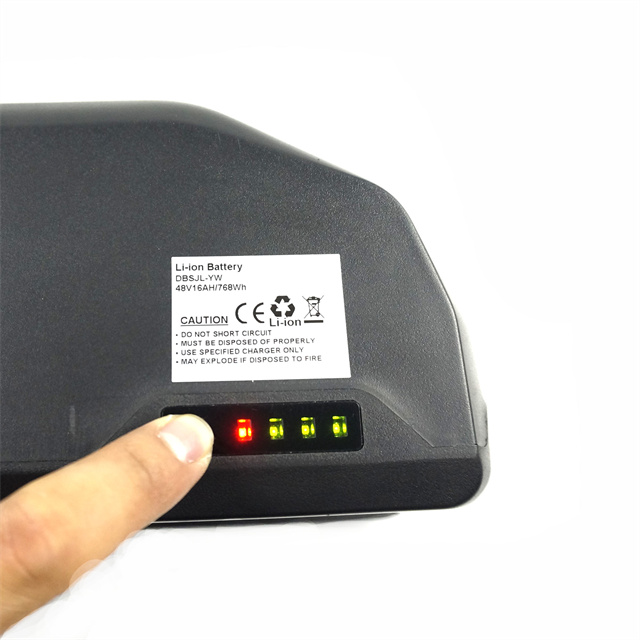

LED indicator 4 LED lights
USB port  without
Power switch  with
Controller box with      (can fit 9 mosfet controller)
L * W * H (mm)  368 * 90 * 112
Package size  (mm) 430*210*160
HS code 8507600090

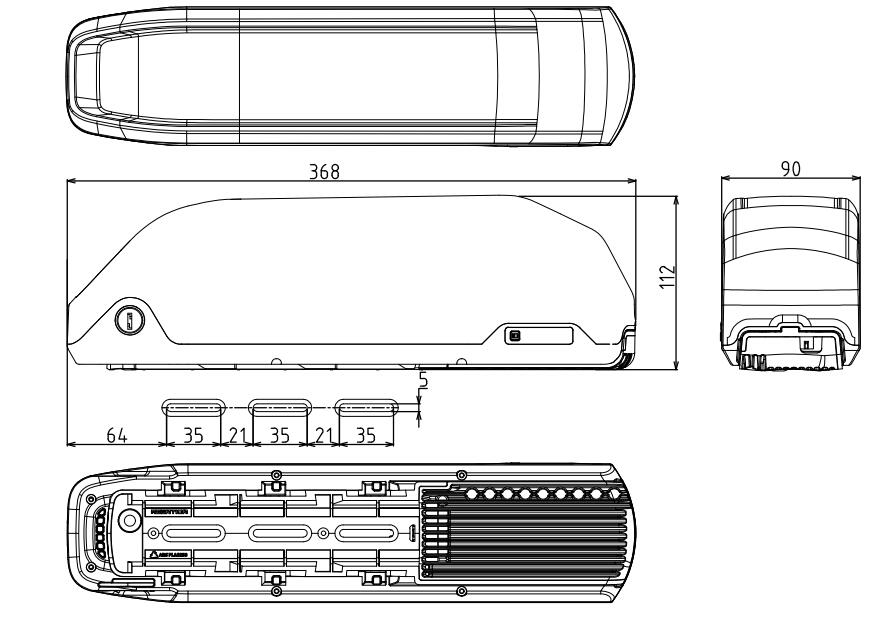

DIMENSION



DP-6C drawing 002

_battery cell 1000 002



18650 cell

You can choose Chinese cell, Samsung cell, LG cell, Panasonic cell according to your demand. Currently, some best selling models like Chinese cell 2200, Chinese cell 2500, Samsung cell 26MJ, Samsung cell 32E, LG3200, LG3500, we have enough in stock.





charger connectors

Charger plug

We support different kind of plugs according to customers' local standard.  Normally, AU, US, UK, EU, the 4 models can meet most customers' demands.


ebike 001

Mountain eBike


fat tire electric bike 001

Super 73 model fat tire eBike

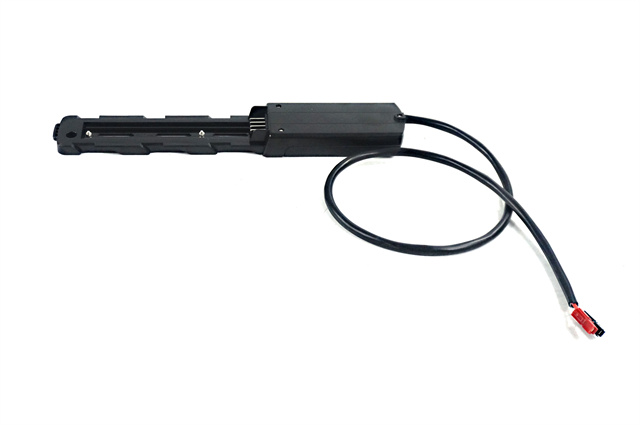

As the best selling model battery in the ebike conversion market, DP-6C battery is really a kind of high cost-effective product. It can be intsalled in most of mountain bike, city bike, fat tire super 73 model bike,even in some three wheel electric bicycle, four wheel electric bike. Max capacity can reach to 36V 21Ah / 48V 17.5Ah. The controller can be built inside of the bottom parts of the battery case. It supports at most 9 mosfet, 25A controller.
