RB-1
Elepedol
24V / 36V / 48 V
Rear rack lithium battery
52 PCS
18650 cell
| Quantity: | |
|---|---|
SPECIFICATION
| Battery type | eBike lithium-ion battery |
| Rated Voltage (V) | 24 / 36 / 48 |
| Full battery voltage (V) | 29 / 42 / 54.6 |
| Maximum cells (PCS) | 52 |
| Battery cell type | 18650 cell |
| Max cell configuration | 7S/ 7P or 13S/ 4P or 10S/ 5P |
| Max capacity | 24V 24.5Ah 36V 17.5Ah 48V 14Ah |
| BMS | 20A -30A |
| Battery charge cycles | 500 cycles to 70% capacity |
| Charging port | DC2.1 ,different standard plug for different country |
| Discharging port | 6 Pin |
| LED indicator | 4 LED lights |
| USB port | without |
| Power switch | with |
| Controller box | with (can fit 6 mosfets controller) |
| L * W * H (mm) | 446 * 278 * 64 |
| Package size (mm) | 470*420*210 |
| Rear light | with |
DIMENSION
18650 cell
You can choose Chinese cell, Samsung cell, LG cell, Panasonic cell according to your demand. Currently, some best selling models like Chinese cell 2200, Chinese cell 2500, Samsung cell 26MJ, Samsung cell 32E, LG3200, LG3500, we have enough in stock.
electric city bike

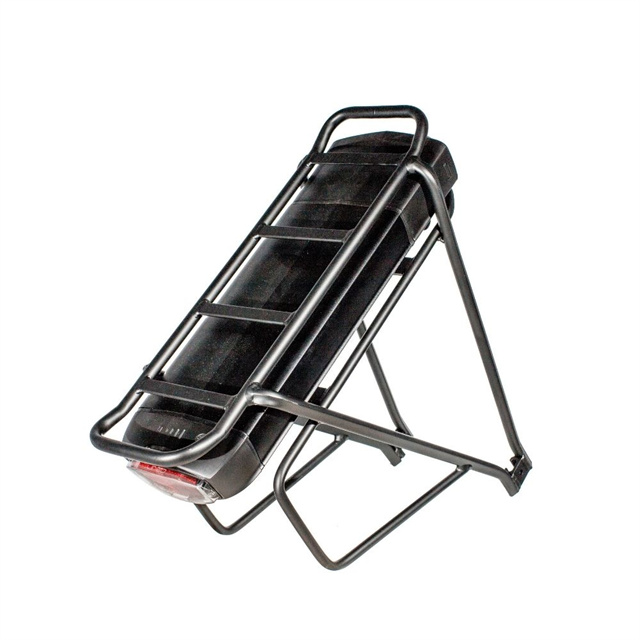

electric tricycle Elepedol RB-1 model is a rear rack lithium ion ebike battery. It comes with high quality aluminum alloy battery case and a seperate Spanninga rear LED light. Besides, it can fit 6 mosfets controller in the controller box. Maximum cell is 52 pcs, max capacity is 36V 17.5Ah with LG3500 cell. Normally, it is used for electric city bike. But, it can be also used in 3 wheel electric tricycle, 4 wheel electric bike.
