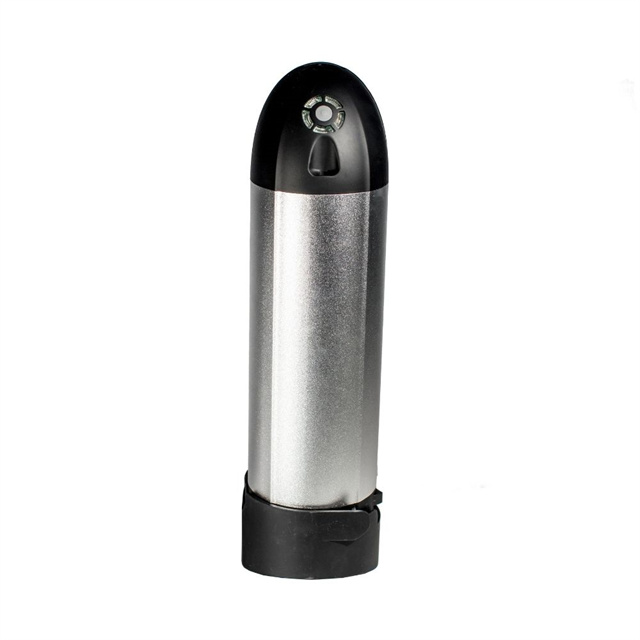

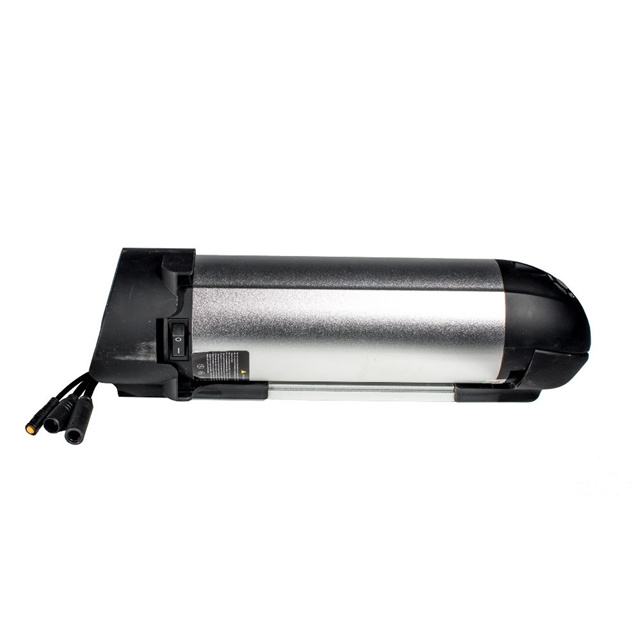

Elepedol HY-2 36V Electric Bike Battery with Controller Box

As the classic downtube model, Elepedol HY-2 bottle type lithium battery is quite popular in Europe market, especially in UK. It can be filled with maximum 40pcs 18650 cells. Max capacity is 36V 14Ah with LG3500 cell. Normally, it is used for electric mountain bicycle, electric road bike, electric folding bike. It comes with USB charging port, when your phone is out of power during the riding, you can charge your phone with the ebike battery. Besides, aluminum alloy battery case give the whole battery pack more safe, and it makes heat dissipation much better. It support build the 6 mosfets controller inside of the bottom bracket, max current is 17A.

  • HY-2

  • ELEPEDOL

  • 24V / 36V / 48 V

  • Downtube lithium battery

  • 40 PCS

  • 18650 cell

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

SPECIFICATION


Battery type  eBike lithium-ion battery
Rated Voltage (V)
 24 / 36 / 48
Full battery voltage (V)  29 / 42 / 54.6
Maximum cells (PCS)  40
Battery cell type  18650 cell
Max cell configuration 7S/ 5P    or    10S/ 4P   or   13S/ 3P
Max capacity  24V 17.5Ah        36V 14Ah        48V 10.5Ah
BMS
 20A -30A
Battery charge cycles 500 cycles to 70% capacity
Charging port
 DC2.1 ,different standard plug for different country
Discharging port 5 Pin
LED indicator 5 level LED indicator
USB port  with
Power switch  with
Lock
 Mechanical spring lock
L * W * H (mm)  338.8*99
Package size  (mm) 430*210*160
Controller box  with ( can fit 6 mosfets controller)

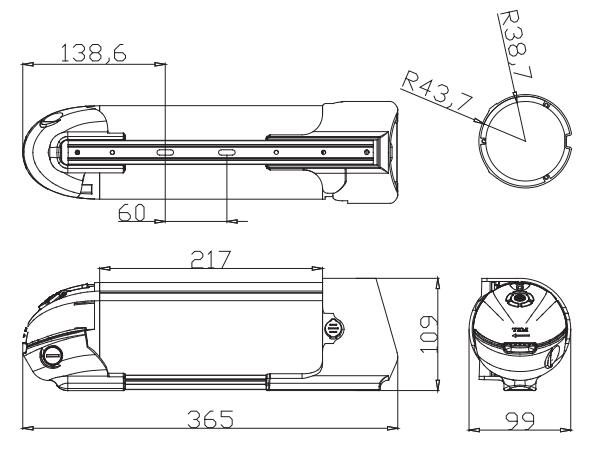

DIMENSION

HY-2 battery 002

_battery cell 1000 002



18650 cell

You can choose Chinese cell, Samsung cell, LG cell, Panasonic cell according to your demand. Currently, some best selling models like Chinese cell 2200, Chinese cell 2500, Samsung cell 26MJ, Samsung cell 32E, LG3200, LG3500, we have enough in stock.





charger connectors

Charger plug

We support different kind of plugs according to customers' local standard.  Normally, AU, US, UK, EU, the 4 models can meet most customers' demands.

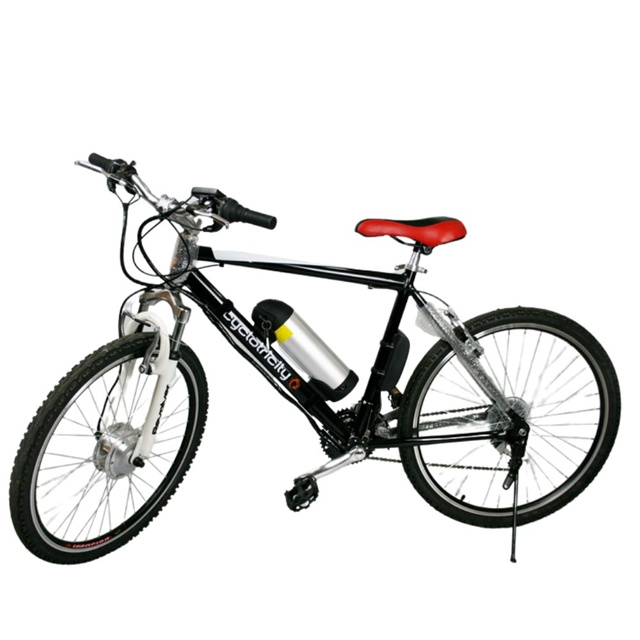

HY-1 battery 00001


As the classic downtube model, Elepedol HY-2 bottle type lithium battery is quite popular in Europe market, especially in UK. It can be filled with maximum 40pcs 18650 cells. Max capacity is 36V 14Ah with LG3500 cell. Normally, it is used for electric mountain bicycle, electric road bike, electric folding bike. It comes with USB charging port, when your phone is out of power during the riding, you can charge your phone with the ebike battery. Besides, aluminum alloy battery case give the whole battery pack more safe, and it makes heat dissipation much better. It support build the 6 mosfets controller inside of the bottom bracket, max current is 17A.
