Elepedol RB-3 48 Volt Lithium-ion Battery for Electric Bike

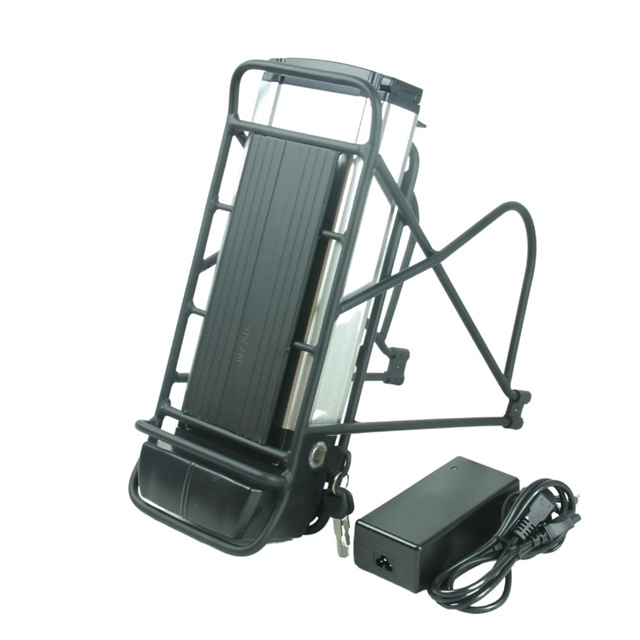

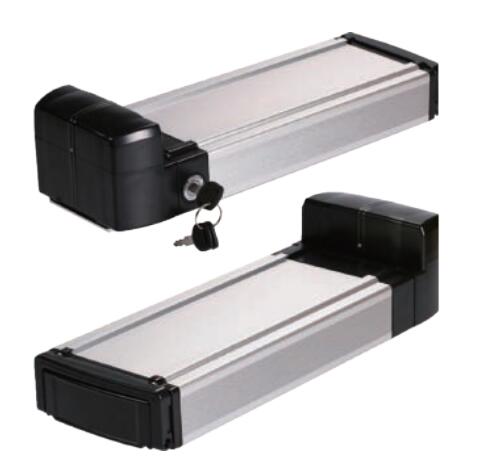

Elepedol RB-3 model is a classic 36V 48V rear rack lithium ion battery for electric bike. The aluminum alloy battery case make the heat dissipation much better, compared with plastic battery case. The rear controller box can fit 6 mosfet controller. It can be filled with 65 pcs 18650 cells, max capacity can be 36V 21Ah, 48V 17.5Ah, with LG3500 cell. Usually, it is used in electric city bike. But it can also be used for electric tricycle, 4 wheel electric bicycle.

  • RB-3

  • Elepedol

  • 36V / 48V

  • Rear rack lithium battery

  • 65 PCS

  • 18650 cell

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

SPECIFICATION


Battery type  eBike lithium-ion battery
Rated Voltage (V)
 36 / 48
Full battery voltage (V)  42 / 54.6
Maximum cells (PCS)  65
Battery cell type  18650 cell
Max cell configuration 13S/ 5P   or   10S/ 6P
Max capacity  36V 21Ah        48V 17.5Ah
BMS
 20A -30A
Battery charge cycles 500 cycles to 70% capacity
Charging port
 DC2.1 ,different standard plug for different country
Discharging port 4 Pin
LED indicator No
USB port  without
Power Lock Yes
Controller box with      (can fit 6 mosfet controller)
L * W * H (mm)  434.1 * 150.5 * 106.5
Package size  (mm) 470*420*210
HS code 8507600090

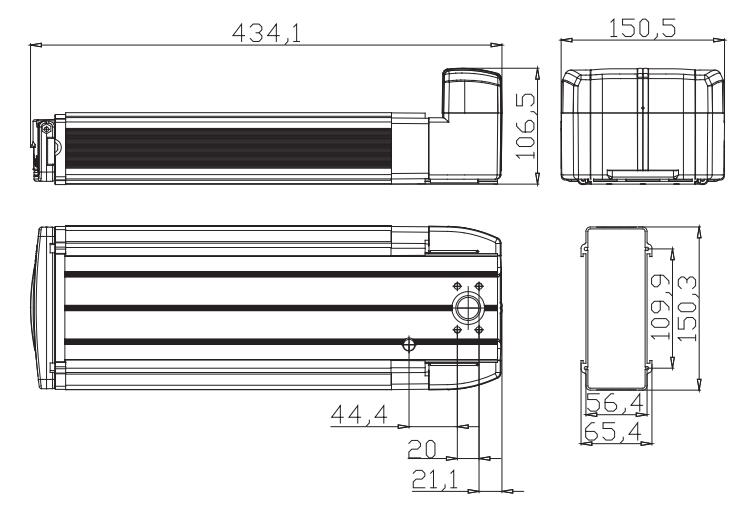

DIMENSION

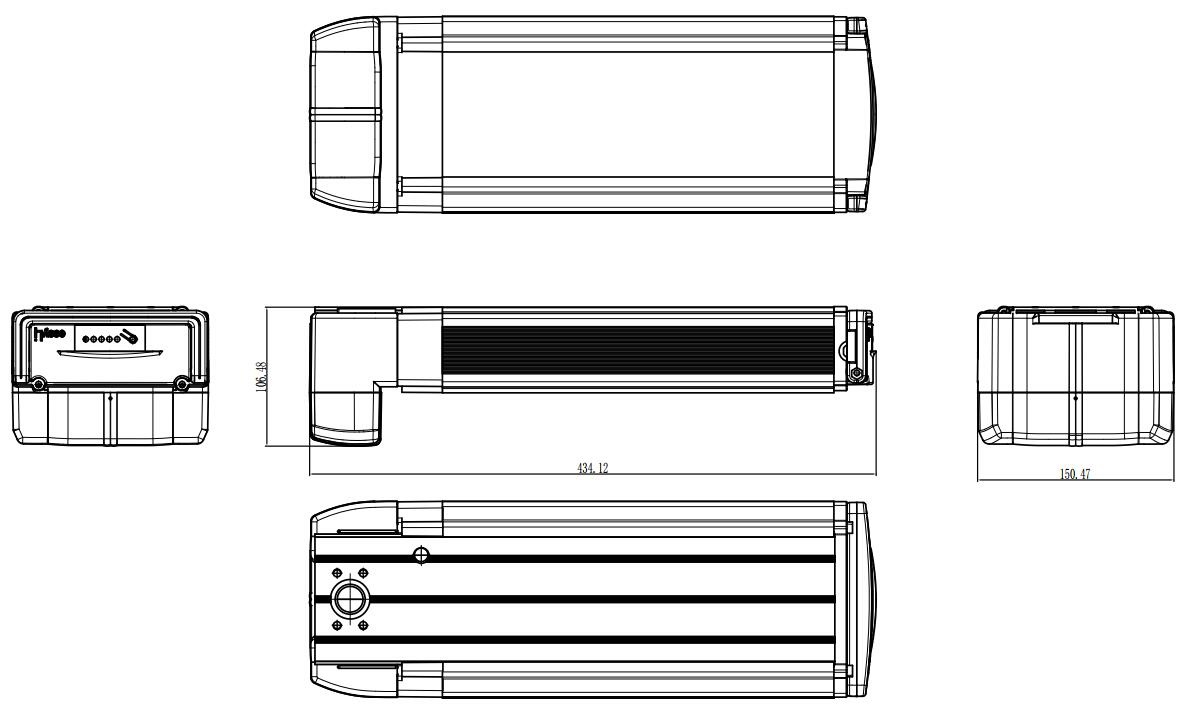

RACK-3 drawing 001

_battery cell 1000 002



18650 cell

You can choose Chinese cell, Samsung cell, LG cell, Panasonic cell according to your demand. Currently, some best selling models like Chinese cell 2200, Chinese cell 2500, Samsung cell 26MJ, Samsung cell 32E, LG3200, LG3500, we have enough in stock.





charger connectors

Charger plug

We support different kind of plugs according to customers' local standard.  Normally, AU, US, UK, EU, the 4 models can meet most customers' demands.


RB-3 EBIKE BATTERY 002

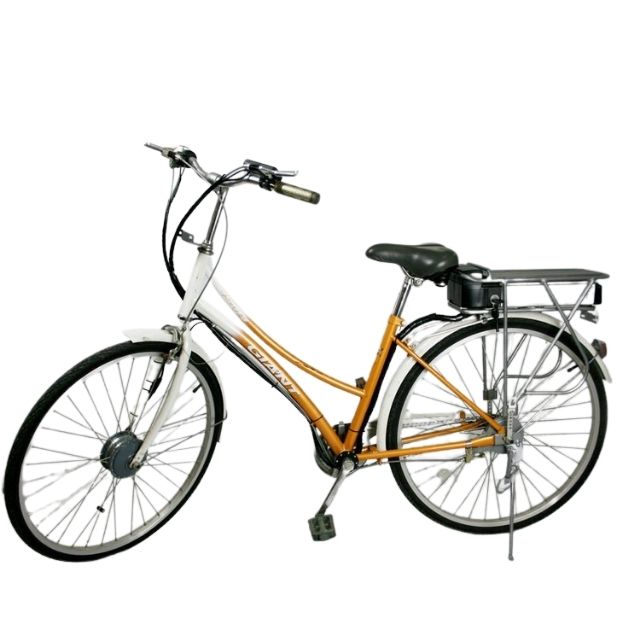

electric city bike


RB-3 EBIKE BATTERY 001

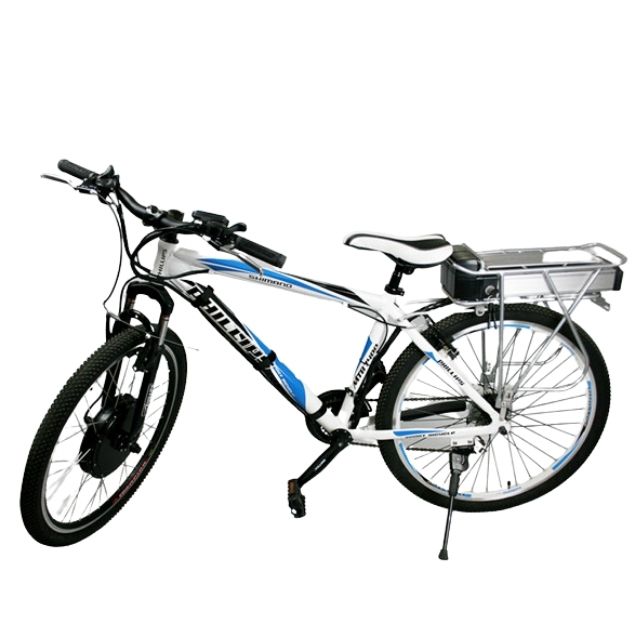

electric mountain bike


Elepedol RB-3 model is a classic 36V 48V rear rack lithium ion battery for electric bike. The aluminum alloy battery case make the heat dissipation much better, compared with plastic battery case. The rear controller box can fit 6 mosfet controller. It can be filled with 65 pcs 18650 cells, max capacity can be 36V 21Ah, 48V 17.5Ah, with LG3500 cell. Usually, it is used in electric city bike. But it can also be used for electric tricycle, 4 wheel electric bicycle.
