Elepedol MSBK-2R Electric Bicycle Hydraulic Brake Sensor

How to check Hydraulic brake level active or disactive is a big issues on the ebike. Now ,this trouble has been complete solved after Elepedol MSBK-2R launched.
This sensor combine with 2 parts, one is sensor body and another one is a small magnet. The size is very small so you just need to stick
both of them on the brake level, then , it can check the brake active, disactive signal and a switch signal will be output.

  • MSBK-2R

  • Elepedol

  • 24V / 36V / 48 V/ 72V

  • 250W / 350W / 500W / 1000W / 1500W / 3000W

  • Ebike Brake sensor

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Parameter


Model
 MSBK-2R cut off power hydraulic electric brake sensor
Material  Plastic
Signal Active: switch off        Inactive: switch on
Sensor size
 26*11.5*6
Magnet size  Φ10x3
Weight  30g
Connector

2pin / 3pin SM connector

Julet waterproof 2pin /3pin connector
Indicator  /
Cable length
 SM connector : 1800mm including the connector

Julet waterproof 3pin connector: 250mm including the connector
Color
 Black
Installation position Left / Right
Waterproof grade  IP76

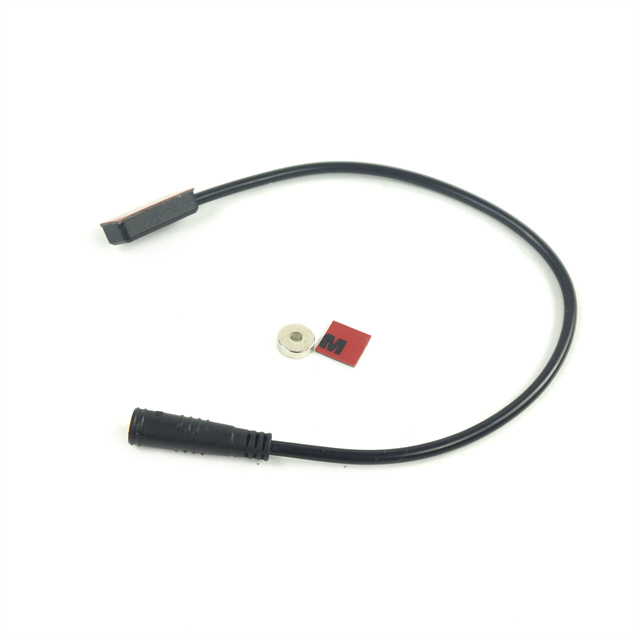

MSBK-2R ebrake sensor 001

MSBK-2R hydraulic ebrake sensor

1PC

MSBK-2R ebrake sensor 002

MSBK-2R electric bicycle hydraulic brake sensor

1PC

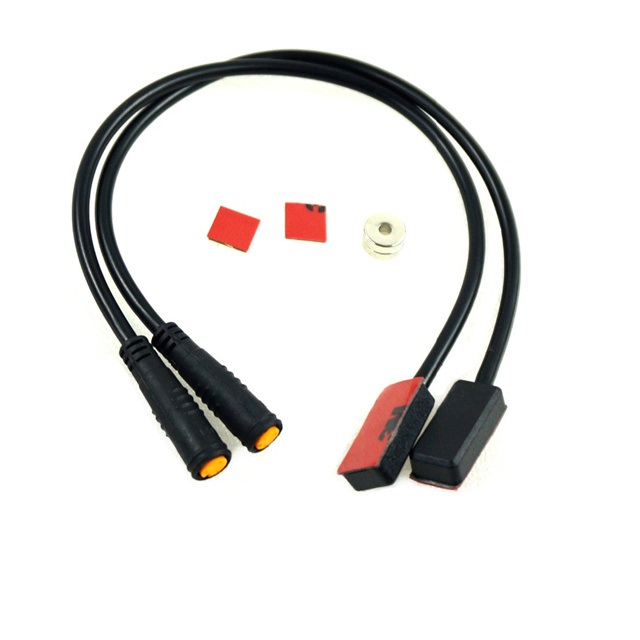

MSBK-2R ebrake sensor 006

A set of MSBK-2R ebike hydraulic brake sensor


You can decide to choose 1pc ebrake sensor in the ebike or add 1 complete ebrake sensor in the electric bike. Normally, customers put 1pc ebrake sensor in the electric bicycle.





MSBK-2R ebrake sensor 005

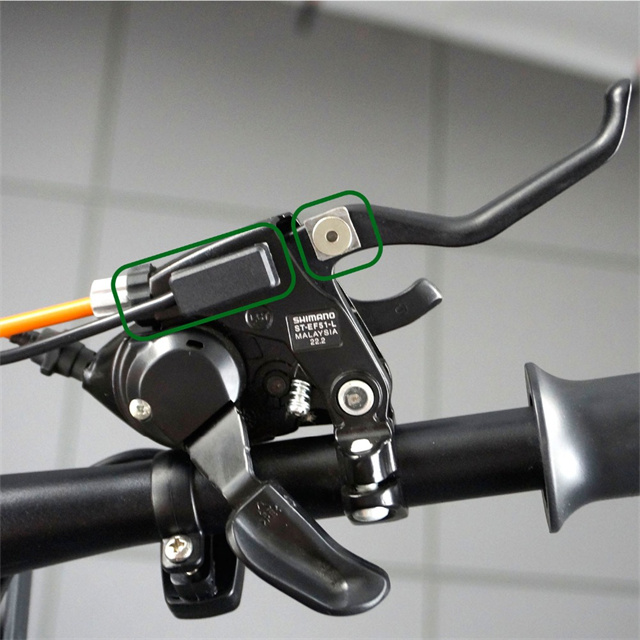

Installation Guide

 Step 1: paste the magnet in the mechanical (hydraulic) brake

 Step 2: connect the sensor part with the controller system


How to check hydraulic brake level active or disactive is a big issue on the ebike. Now ,this trouble has been complete solved after Elepedol MSBK-2R launched.
This sensor combine with 2 parts, one is sensor body and another one is a small magnet. The size is very small so you just need to stick both of them on the brake level, then , it can check the brake active,disactive signal and a switch signal will be output.
