IE-Pro
Elepedol
36V / 48V
250W / 350W / 500W
Downtube lithium battery
52 PCS
18650 cell
| Quantity: | |
|---|---|
SPECIFICATION
| Battery type | eBike lithium-ion battery |
| Rated Voltage (V) | 24 / 36 / 48 |
| Full battery voltage (V) | 29 / 42 / 54.6 |
| Maximum cells (PCS) | 52 |
| Battery cell type | 18650 cell |
| Max cell configuration | 7S/ 7P or 13S/ 4P or 10S/ 5P |
| Max capacity | 24V 24.5Ah 36V 17.5Ah 48V 14Ah |
| BMS | 20A -30A |
| Battery charge cycles | 500 cycles to 70% capacity |
| Charging port | DC2.1 or 3pin high current , different standard plug for different country |
| Discharging port | 2 Pin or 6 Pin |
| LED indicator | single LED light with 3 colors |
| USB port | without |
| Power switch | without |
| Controller box | without (but you can put 6 / 9 mosfets controller inside of the frame) |
| L * W * H (mm) without frame part | 430 * 64 * 94 |
| Package size (mm) without frame part | 470*420*210 |
| HS code | 8507600090 |

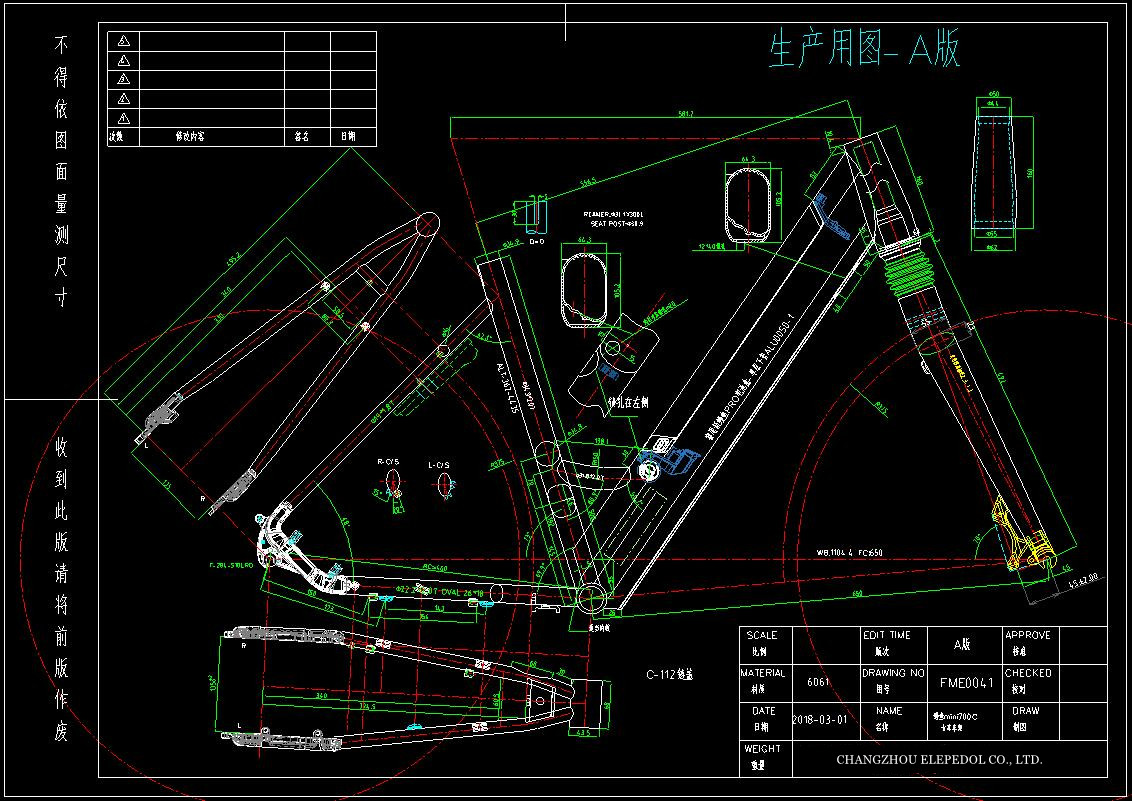

DIMENSION

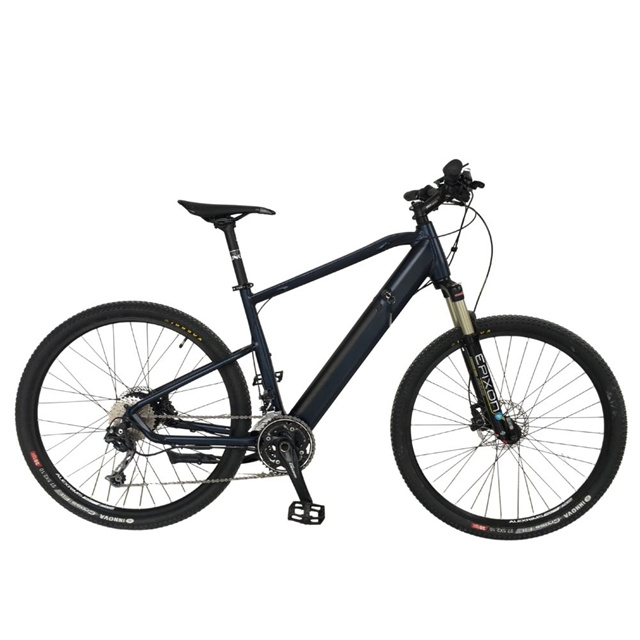

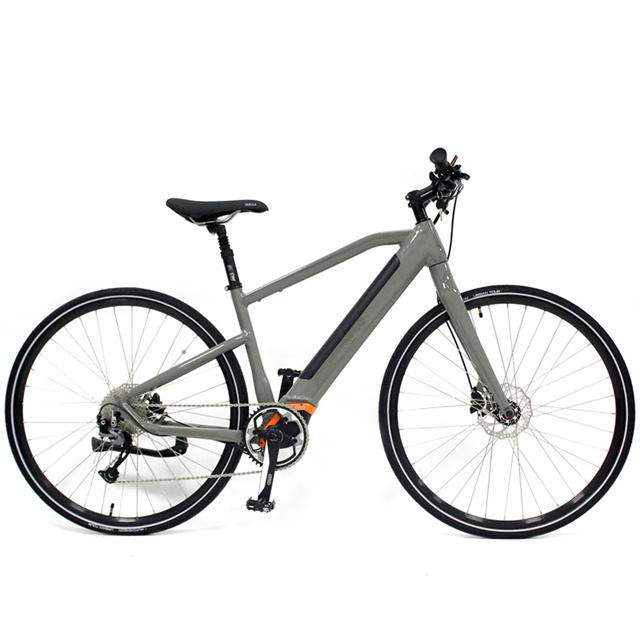

IE-Pro ebike battery is used for electric men bike:

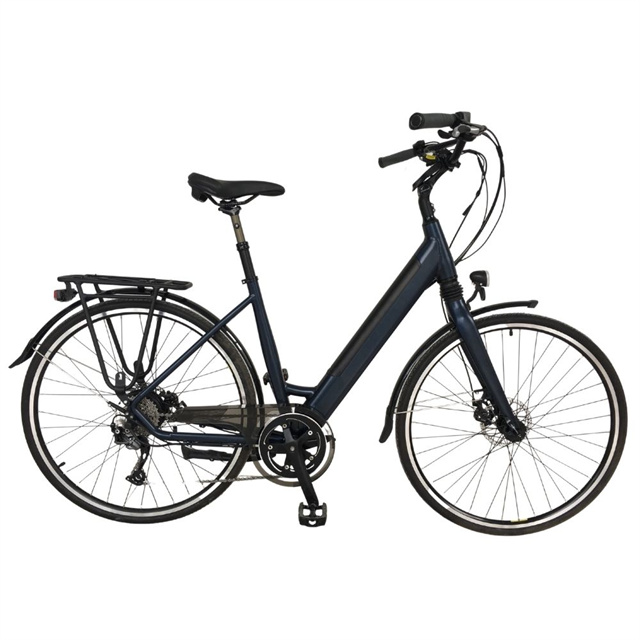

IE-pro ebike battery is used for electric women bike:
18650 cell
You can choose Chinese cell, Samsung cell, LG cell, Panasonic cell according to your demand. Currently, some best selling models like Chinese cell 2200, Chinese cell 2500, Samsung cell 26MJ, Samsung cell 32E, LG3200, LG3500, we have enough in stock.

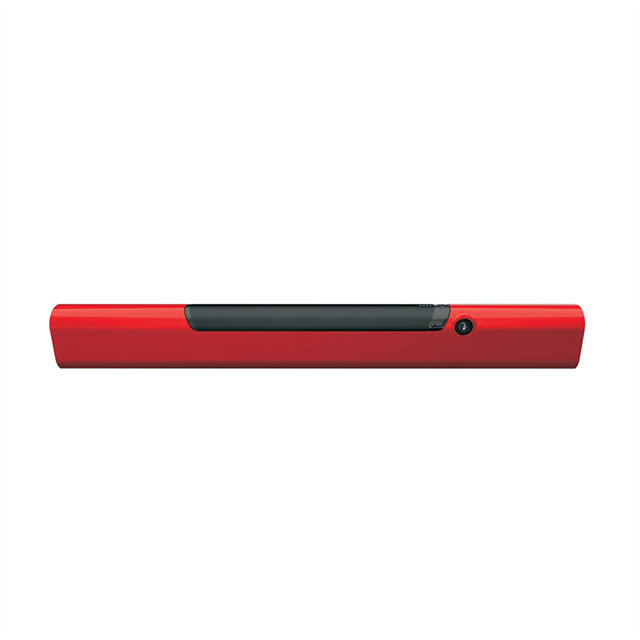

Elepedol IE-Pro model battery is a kind of downtube ebike battery which is hidden in the ebike frame. The ebike battery case can be filled with maximum cell 52PCS, max capacity can be 36V 17.5Ah, 48V 14Ah. It is widely used in electric folding bike, electric mountain bicycle, electric city bike. If you are a electric bike factory or your target market is electric bike market, IE-Pro ebike battery would be a good choice for you.
