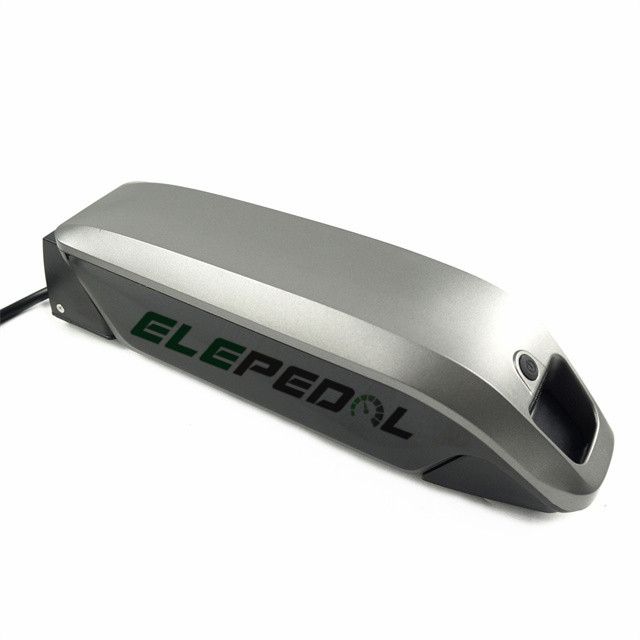

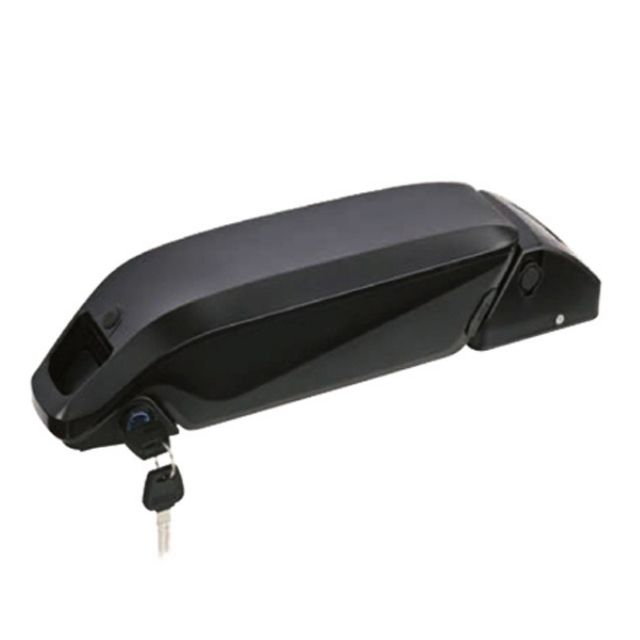

Elepedol XHXH 36V 48V Downtube Electric Bike Lithium Battery

Elepedol XHXH model is a fashion downtube electric bike battery pack with USB port. It is filled with 40 pcs 18650 lithium ion battery cells. Max capacity can be 36V 14Ah, 48V 10.5Ah. It can match with 36V 250W/350W/500W ebike motor, 48V 350W electric bicycle motor. Usually, it is used for electric city bike, electric mountain bicycle. It can fit 6 mosfet controller.

  • XHXH

  • Elepedol

  • 36V / 48V

  • Downtube lithium battery

  • 40 PCS

  • 18650 cell

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

SPECIFICATION


Battery type  eBike lithium-ion battery
Rated Voltage (V)
 24 / 36 / 48
Full battery voltage (V)  29 / 42 / 54.6
Maximum cells (PCS)  40
Battery cell type  18650 cell
Max cell configuration 7S/ 5P    or    13S/ 3P   or   10S/ 4P
Max capacity  24V 17.5Ah        36V 14Ah        48V 10.5Ah
BMS
 20A -30A
Battery charge cycles 500 cycles to 70% capacity

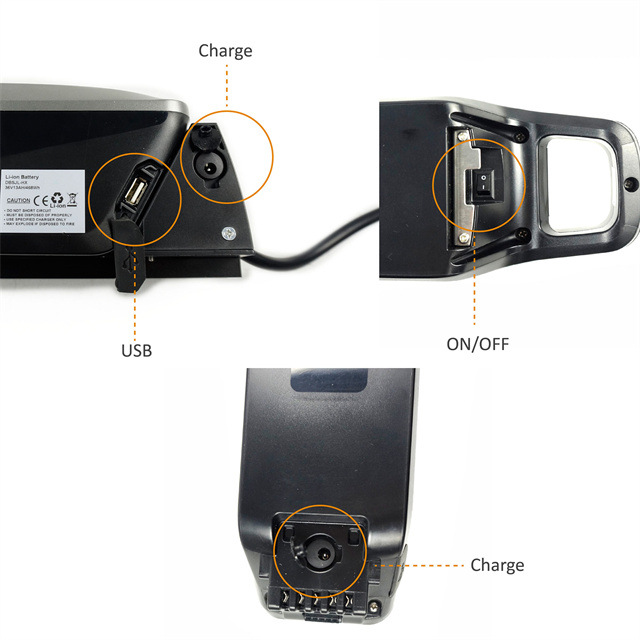

Charging port
 DC2.1 ,different standard plug for different country
Discharging port 4 Pin

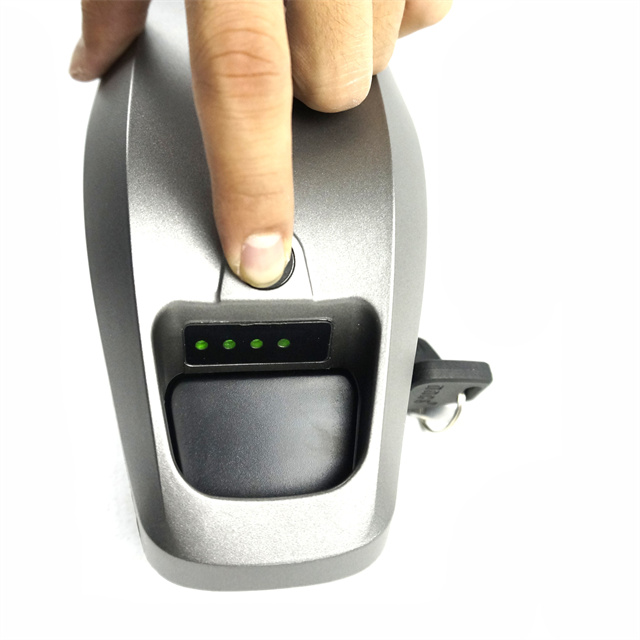

LED indicator 4 LED lights
USB port  with
Power lock  yes
Controller box with      (can fit 6 mosfet controller)
L * W * H (mm)  412*91.65*92.23
Package size  (mm) 430*210*160
HS code 8507600090

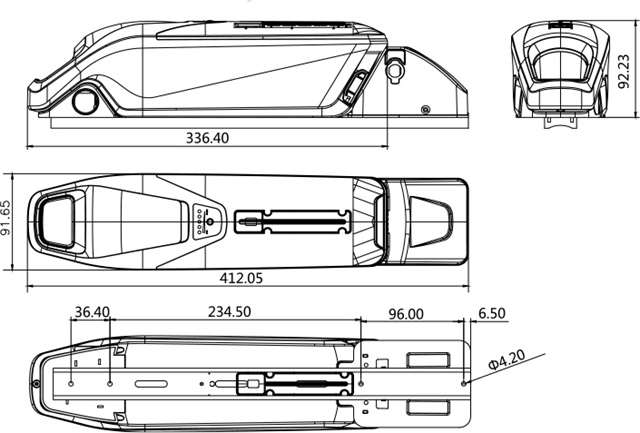

DIMENSION


XHXH electric bike battery 06

_battery cell 1000 002



18650 cell

You can choose Chinese cell, Samsung cell, LG cell, Panasonic cell according to your demand. Currently, some best selling models like Chinese cell 2200, Chinese cell 2500, Samsung cell 26MJ, Samsung cell 32E, LG3200, LG3500, we have enough in stock.





charger connectors

Charger plug

We support different kind of plugs according to customers' local standard.  Normally, AU, US, UK, EU, the 4 models can meet most customers' demands.

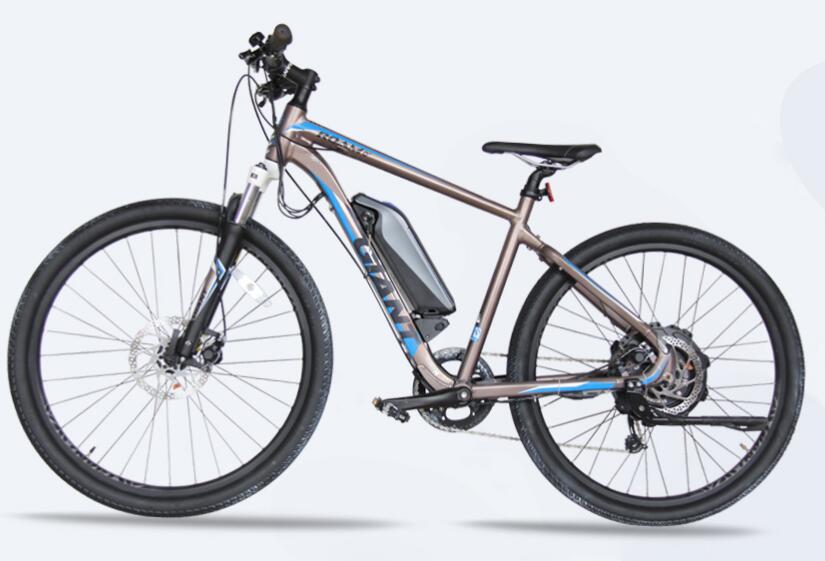

XHXH ebike 001


Elepedol XHXH model is a fashion downtube diy electric bike battery pack with USB port. It is filled with 40 pcs 18650 lithium ion battery cells. Max capacity can be 36V 14Ah, 48V 10.5Ah. It can match with 36V 250W/350W/500W ebike motor, 48V 350W electric bicycle motor. Usually, it is used for electric city bike, electric mountain bicycle. It can fit 6 mosfet controller.
