Elepedol DS-5 Tiger Shark 36V 48V Lithium Ion Battery for Electric Bike

Elepedol DS-5 / DS-5C battery is a downtube lithium ion battery for electric bike. It can be filled with at most 52 pcs 18650 cells. Max capacity is 36V 17.5Ah, 48V 14Ah. They can match with 36V 500W/ 48V 1000W ebike motor. Usually, they are used for electric mountain bike, electric city bike. There are 2 colors for your optional. One is black, another is white.

  • DS-5 / DS-5C

  • Elepedol

  • 36V / 48V

  • Downtube lithium battery

  • 52 PCS

  • 18650 cell

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

SPECIFICATION


Battery type  eBike lithium-ion battery
Rated Voltage (V)
 36 / 48
Full battery voltage (V)  42 / 54.6
Maximum cells (PCS)  52
Battery cell type  18650 cell
Max cell configuration 13S/ 4P   or   10S/ 5P
Max capacity  36V 17.5Ah        48V 14Ah
BMS
 20A -30A
Battery charge cycles 500 cycles to 70% capacity
Charging port
 DC2.1 Or 3 Pin high current,different standard plug for different country
Discharging port 2 Pin or 5 Pin
LED indicator 4 LED lights
USB port  with
Power switch  with
Controller box  * with      (can fit 9 mosfet controller)
L * W * H (mm)  DS-5:  343 * 78 * 114       /         DS-5C: 378 * 78 * 114
Package size  (mm) 430*210*160
HS code 8507600090


DIMENSION


DS-5（without controller model）:


DS-5 drawing 001

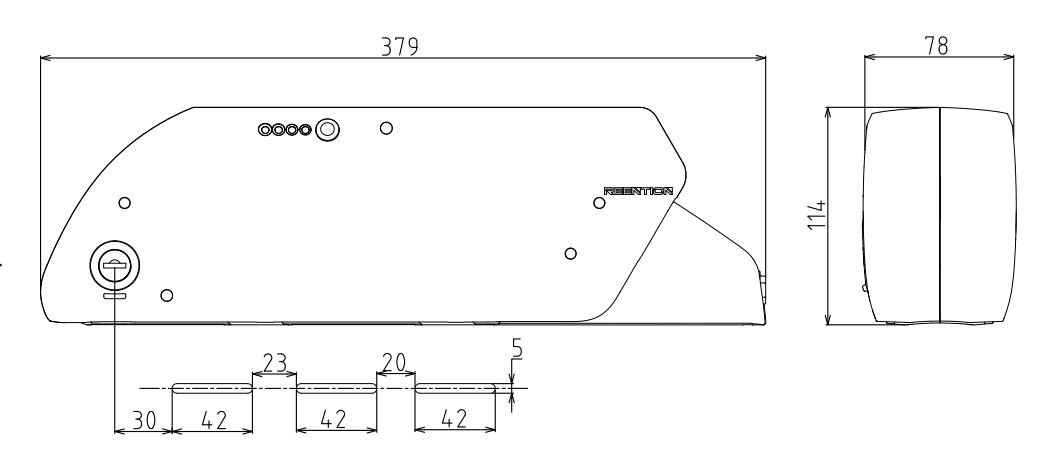

DS-5C (with controller box model) :

DS-5C drawing 001

_battery cell 1000 002



18650 cell

You can choose Chinese cell, Samsung cell, LG cell, Panasonic cell according to your demand. Currently, some best selling models like Chinese cell 2200, Chinese cell 2500, Samsung cell 26MJ, Samsung cell 32E, LG3200, LG3500, we have enough in stock.





charger connectors

Charger plug

We support different kind of plugs according to customers' local standard.  Normally, AU, US, UK, EU, the 4 models can meet most customers' demands.


ebike 001

Mountain eBike


fat tire electric bike 001

Super 73 model fat tire eBike



Elepedol DS-5 / DS-5C battery is a downtube lithium ion battery for electric bike. It can be filled with at most 52 pcs 18650 cells. Max capacity is 36V 17.5Ah, 48V 14Ah. They can match with 36V 500W/ 48V 1000W ebike motor. Usually, they are used for electric mountain bike, electric city bike. There are 2 colors for your optional. One is black, another is white.
