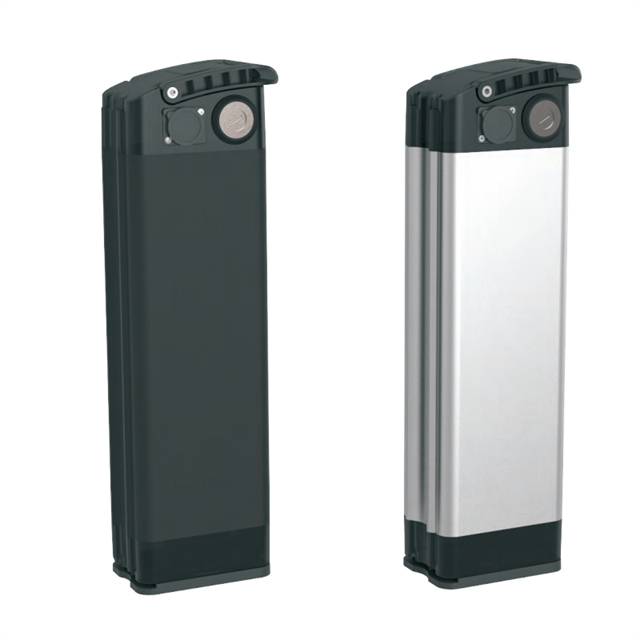

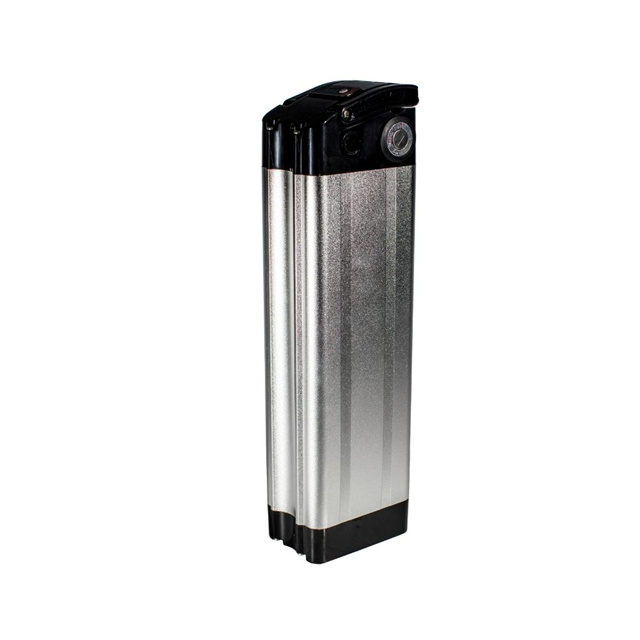

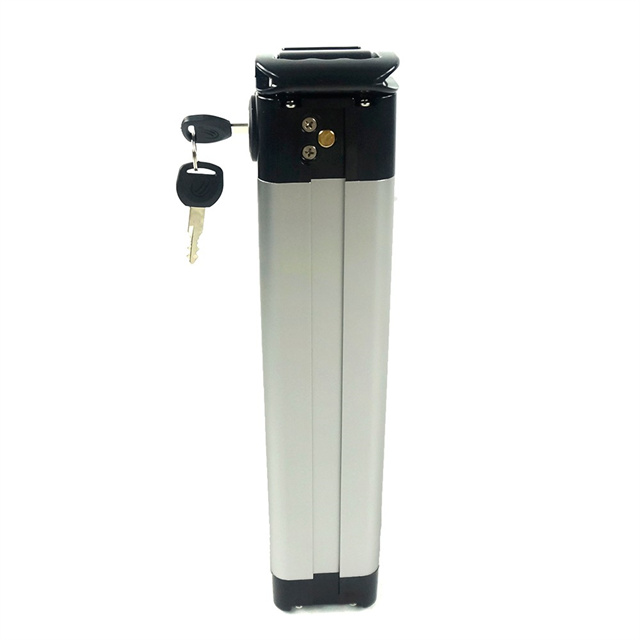

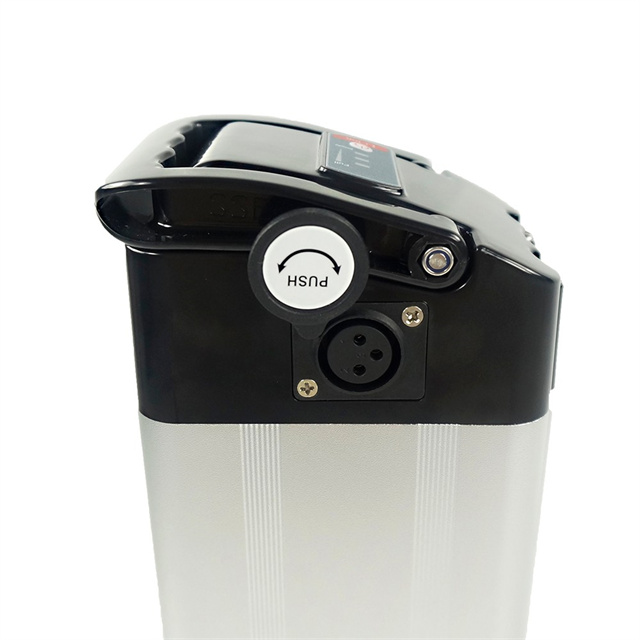

Elepedol SF 36V 48V Seat Tube Electric Bike Lithium ion Battery

Elepedol SF model lithium ion battery is a seat tube electric bike battery. Usually, it is used for electric folding bike. Now, it can also be used for electric tricycle, electric fat tire mountain bike and so on. It can be filled at most 70 pcs 18650 cells. Max capacity can be 36V 24.5Ah, 48V 17.5Ah with LG3500 cell.

  • SF

  • Elepedol

  • 36V / 48V

  • Seat Tube Lithium Battery

  • 70 PCS

  • 18650 cell

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

SPECIFICATION


Battery type  eBike lithium-ion battery
Rated Voltage (V)
 36 / 48
Full battery voltage (V)  42 / 54.6
Maximum cells (PCS)  70
Battery cell type  18650 cell
Max cell configuration 13S/ 5P   or   10S/ 7P
Max capacity  36V 24.5Ah        48V 17.5Ah
BMS
 20A -30A
Battery charge cycles 500 cycles to 70% capacity
Charging port
 3Pin XLR Or DC2.1 ,different standard plug for different country
Discharging port 2Pin Or 4 Pin

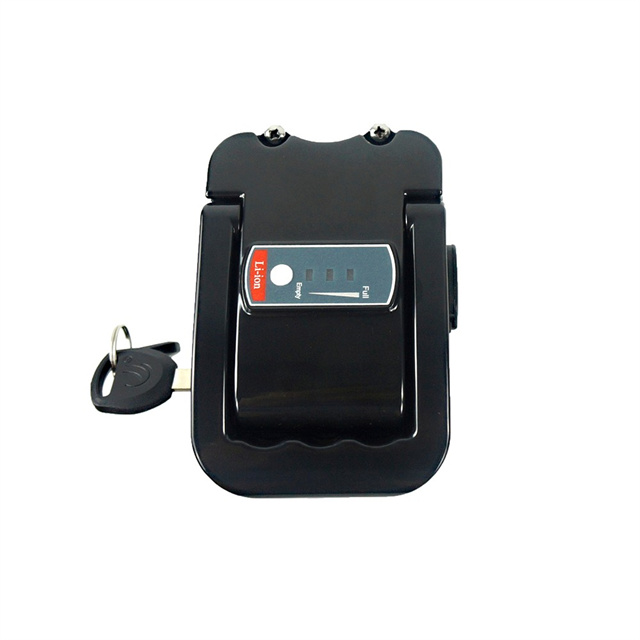

LED indicator 3 LED lights
USB port  without
Power switch with
Controller box without
L * W * H (mm)  386.5 * 110.5 * 75
Package size  (mm) 470*420*210
HS code 8507600090

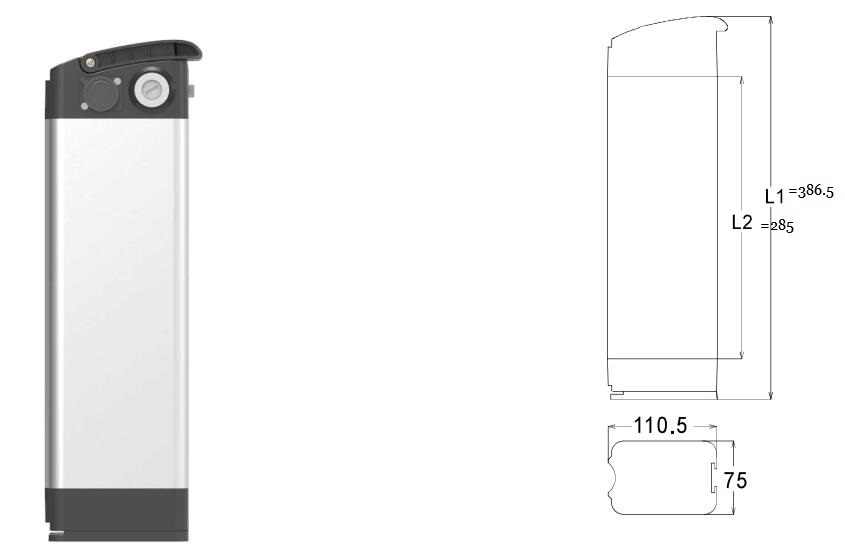

DIMENSION


SF-2 drawing

_battery cell 1000 002



18650 cell

You can choose Chinese cell, Samsung cell, LG cell, Panasonic cell according to your demand. Currently, some best selling models like Chinese cell 2200, Chinese cell 2500, Samsung cell 26MJ, Samsung cell 32E, LG3200, LG3500, we have enough in stock.





charger connectors

Charger plug

We support different kind of plugs according to customers' local standard.  Normally, AU, US, UK, EU, the 4 models can meet most customers' demands.

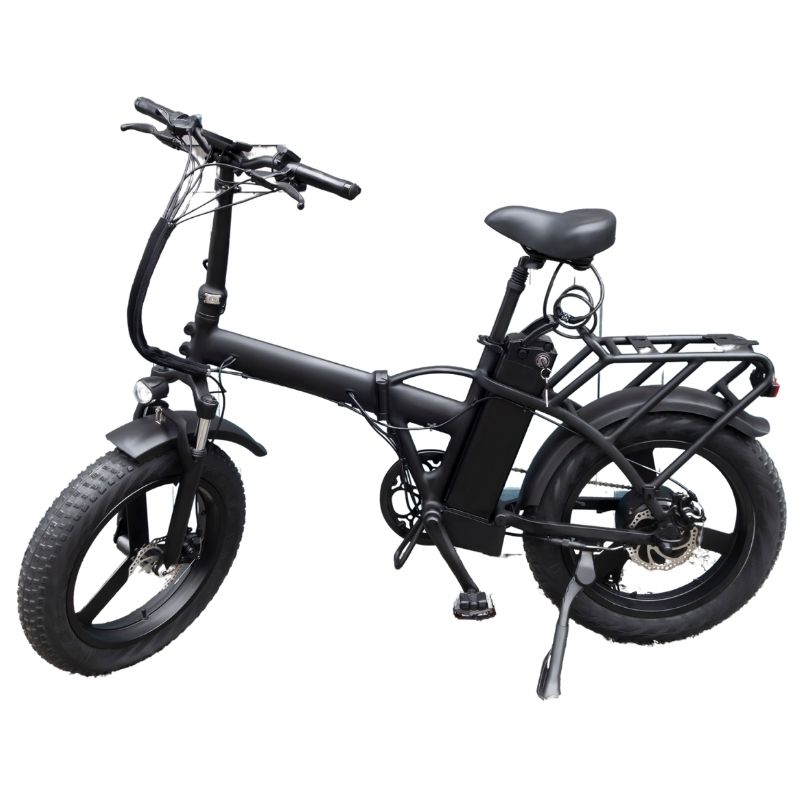

SF lithium ion battery 005

Fat tire electric folding bike

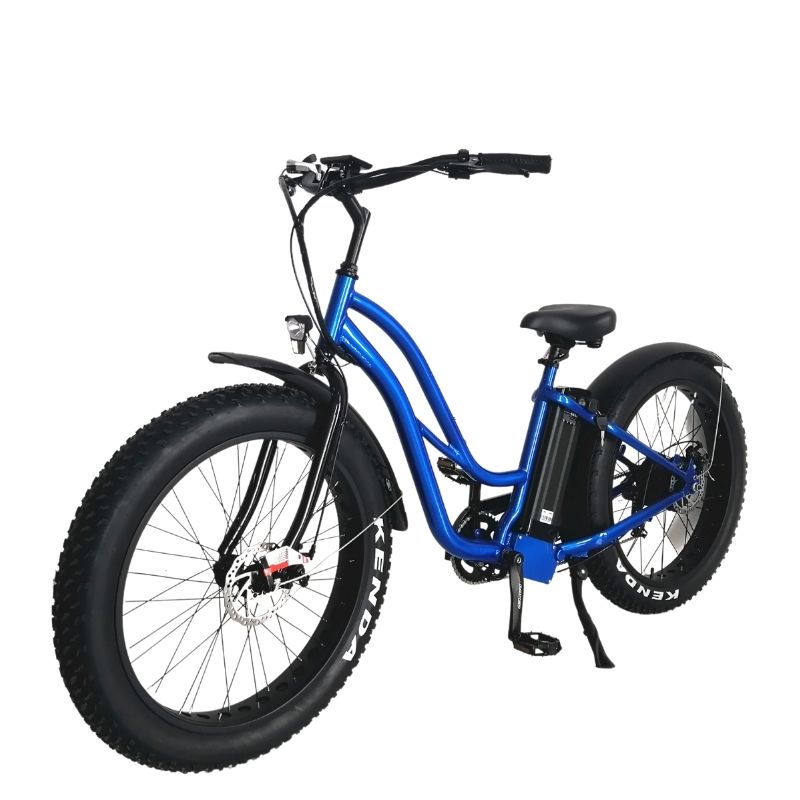

SF lithium ion battery 006

Fat tire electric mountain bike

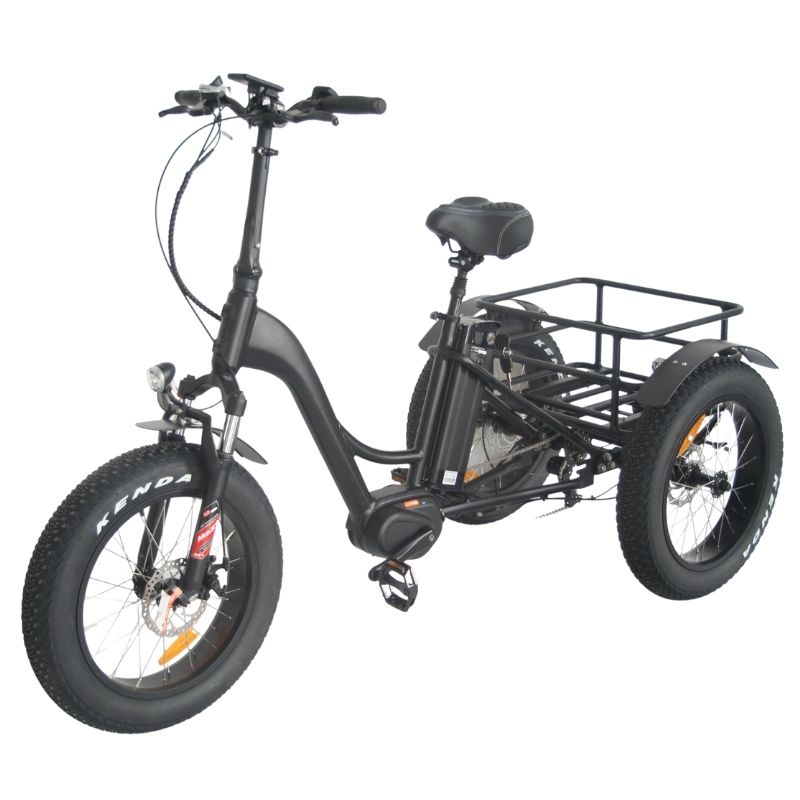

SF lithium ion battery 003

Fat tire electric tricycle


Elepedol SF model lithium ion battery is a seat tube electric bike battery. Usually, it is used for electric folding bike. Now, it can also be used for electric tricycle, electric fat tire mountain bike and so on. It can be filled at most 70 pcs 18650 cells. Max capacity can be 36V 24.5Ah, 48V 17.5Ah with LG3500 cell.
