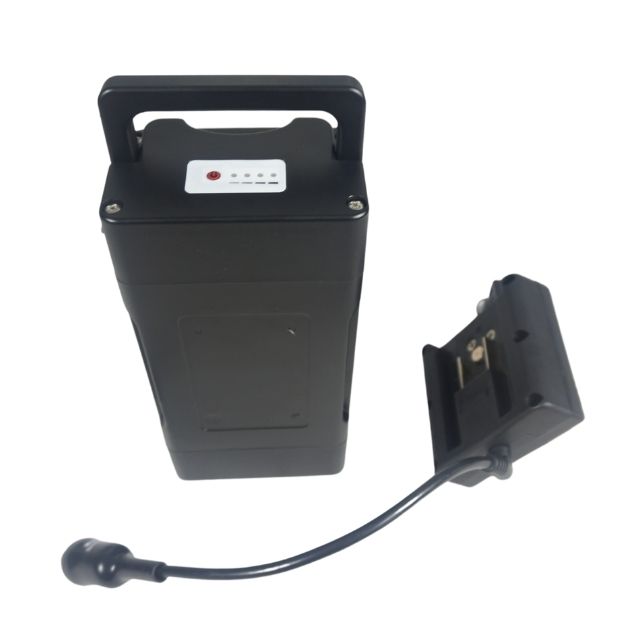

Elepedol Lift Type Seat Tube 36V 48V Electric Bike Battery Pack

Elepedol Lift type battery is a seat tube lithium battery pack for electric bike. Usually, it is used for electric folding bike, electric city bike, electric road bike. But, some customers also use it in electric wheelchair. It is filled with 40pcs 18650 cells. Max capacity is 24V 17.5Ah, 36V 14Ah, 48V 10.5Ah. It can match with 24V electric wheelchair, 36V 250W 350W 500W ebike conversion kit, 48V electric bicycle kit.

  • Lift type

  • Elepedol

  • 24V / 36V / 48 V

  • Seat Tube Lithium Battery

  • 40 PCS

  • 18650 cell

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

SPECIFICATION


Battery type  eBike lithium-ion battery
Rated Voltage (V)
 24 / 36 / 48
Full battery voltage (V)  29 / 42 / 54.6
Maximum cells (PCS)  40
Battery cell type  18650 cell
Max cell configuration 7S/ 5P    or    10S/ 4P   or   13S/ 3P
Max capacity  24V 17.5Ah        36V 14Ah        48V 10.5Ah
BMS
 20A -30A
Battery charge cycles 500 cycles to 70% capacity
Charging port
 DC2.1 ,different standard plug for different country
Discharging port 2 Pin
LED indicator 4 level LED indicator
USB port  without
Power lock  yes
Lock
 mechanical lock
L * W * H (mm)  200 * 100.5 * 124.6
Package size  (mm) 430*210*160
HS code 8507600090


DIMENSION


Lift ebike battery 002

_battery cell 1000 002



18650 cell

You can choose Chinese cell, Samsung cell, LG cell, Panasonic cell according to your demand. Currently, some best selling models like Chinese cell 2200, Chinese cell 2500, Samsung cell 26MJ, Samsung cell 32E, LG3200, LG3500, we have enough in stock.





charger connectors

Charger plug

We support different kind of plugs according to customers' local standard.  Normally, AU, US, UK, EU, the 4 models can meet most customers' demands.






SF-3 EBIKE BATTERY 003

electric folding bicycle

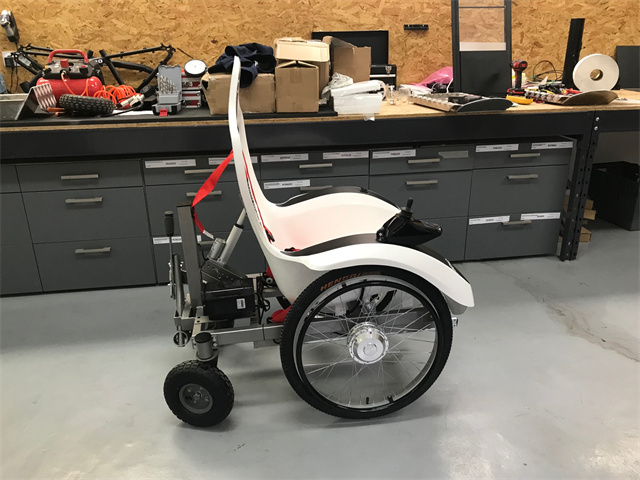

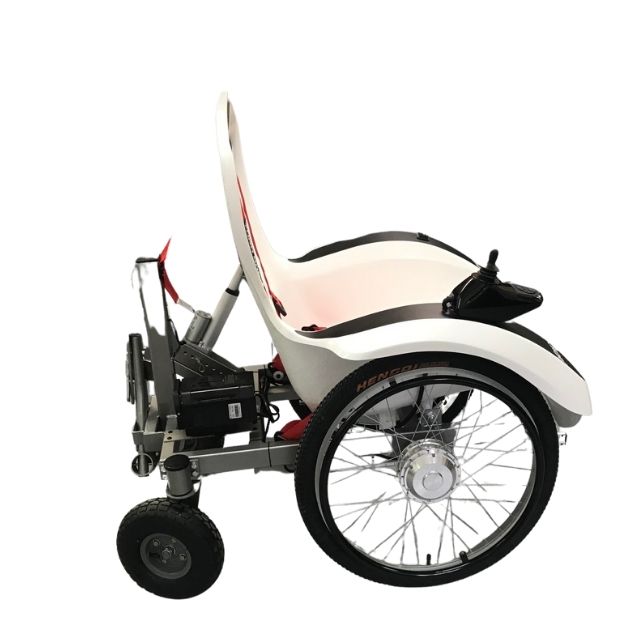

electric wheelchair with lift battery

customized electric wheelchair


Elepedol Lift type battery is a seat tube lithium battery pack for electric bike. Usually, it is used for electric folding bike, electric city bike, electric road bike. But, some customers also use it in electric wheelchair. It is filled with 40pcs 18650 cells. Max capacity is 24V 17.5Ah, 36V 14Ah, 48V 10.5Ah. It can match with 24V electric wheelchair, 36V 250W 350W 500W ebike conversion kit, 48V electric bicycle kit.
